| SKU | IP3541 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Automation Control, PLC |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

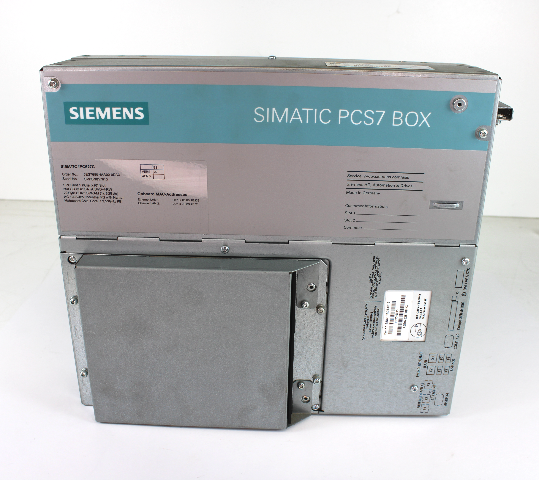

The Box PC SIMATIC IPC627C impresses users with its high compactness and performance. It is suitable for demanding measuring, open-loop and closed-loop control tasks at ambient temperatures of up to 55 å¡C and can be used in shipbuilding.
The Box PC SIMATIC IPC627C is now available optionally with UL certification Class I / Division 2 for operation in potentially explosive atmospheres, for example, in the oil and gas or petrochemical industry.
Despite its high compactness, it can be flexiblyåÊ
scaled and expanded due to two slots:
2 x PCI or
1 x PCI and 1 x PCIe x16åÊ
Maximum performance and extremely fast system response:åÊ
Û¢ Intel Core processors (i7, i3)åÊ
Û¢ High-performance onboard HD graphics integrated into CPUåÊ
Û¢ DDR3 storage technology
Very high system availability and data security due toåÊ
Û¢ Onboard RAID controlleråÊ
Û¢ Solid-state drive (SSD) with 50 GB (SATA, SLC)åÊ
Û¢ ECC-RAM, work memory with error correction
Remote access via Intel AMT
Optional PROFIBUS or PROFINET interface with three ports for low-cost connection of distributed field devices or to interfaces with SIMATIC S7
High data transmission rates and redundancy thanks to two teaming-capable Gigabit Ethernet connections
Dual monitoring via an optional PCI-Express x16 graphics card for high graphics performance
DVI/VGA adapter for analog monitor (optional)
4 x Hi-Speed USB 2.0 ports
Energy-efficient industrial PCs:åÊ
Û¢ Low power consumption due to state-of-the-art mobile technologyåÊ
Û¢ Wake-on-LAN functionality for targeted booting of the IPCs from a central location via aåÊ
network, e.g. after a weekend without production.
Rugged and long-term availability with the same footprint, and installation and interface compatibility with Box PC SIMATIC IPC827C.åÊ
It is also available as a compactåÊHMI IPC677CåÊwith brilliant displays for operator control and monitoring applications.

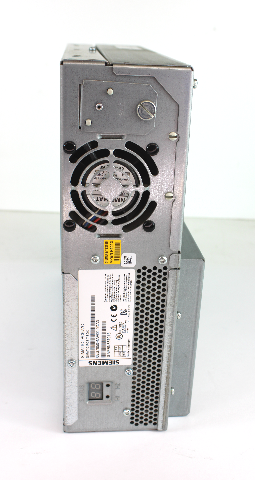

Fast diagnostics of the operating state and display of the BIOS start procedure by means of two freely programmable 7-segment displays with two additional status LEDs, e.g. for acknowledgements during data transmission.
Fast replacement of the CMOS battery even when installed due to externally accessible battery compartment.

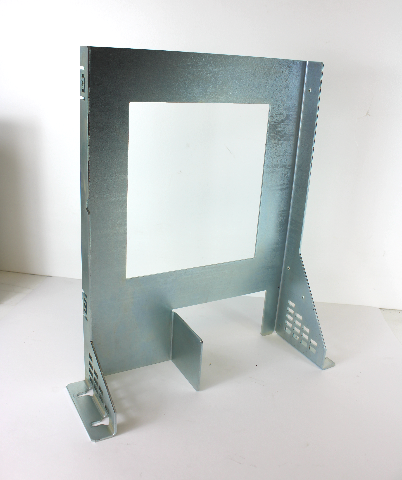

Flexible installation in control cabinets with a high level of user friendliness due to front/portrait assembly kit and mounting brackets. All function elements and interfaces can therefore be accessed from the front.
| Brand | Siemens |
| Manufacturer | Siemens |
| Model | IPC627C |
| MPN | 6ES7650-4AA00-0DA3 |
| Part Number | IPC627C |
| Condition | Used |
| Weight | 25.00 |
| Voltage | 100-240V ac |
| Series | IPC627C |
| Communications | EtherNet, Profibus/MPI, RS-485, USB |
| Shelf Location | D-2 |
| Unit Type | PCS 7 Box Process Control System |
