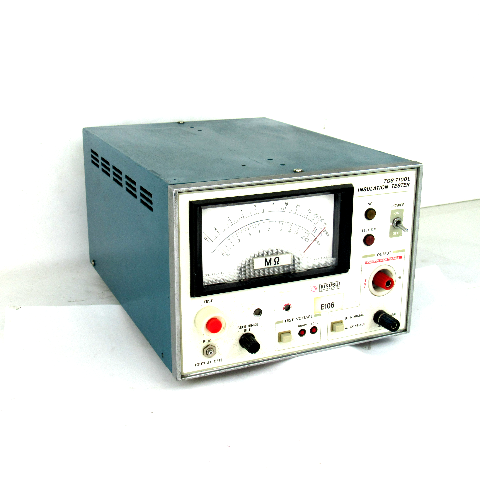

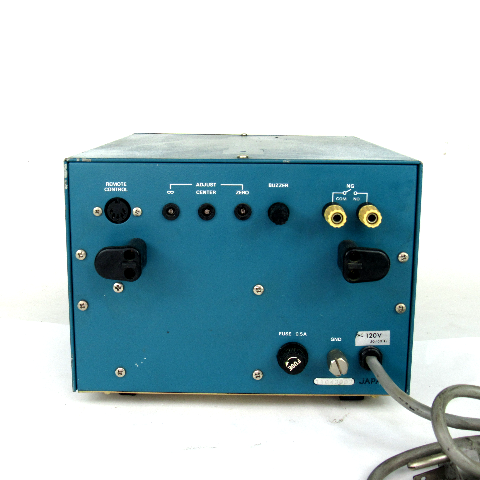

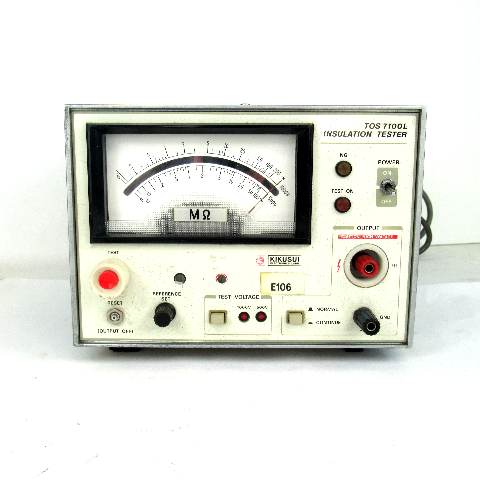

Kikusui TOS 7100L Insulation Resistance Tester, 500/1000V

Kikusui TOS 7100L Insulation Resistance Tester, 500/1000V -Rated Measuring Range 500/1000 V Effective Measuring Range 500 V range: 1M to 1000M 1000 V range: 2M to 2000 M Accuracy 1st effective measuring range: 5% of reading 2nd effective measuring range: 10% of reading Measuring Terminal Voltage +5, -0% of rated measuring voltage when output terminal is open Indicating Meter Dual pointer meter, with mirror Results Judgement Pass/fail judgement Limit Value Setting Range Arbitrary set within effective measuring range Judgement Accuracy ±15% of set value for 1st effective measuring range ±20% of set value for 2nd effective measuring range Judgement Waiting-Time Approx. 0.3 s Output Mode Selection NORMAL/CONTINUE Line Voltage 100V..10%, 50/60 Hz
