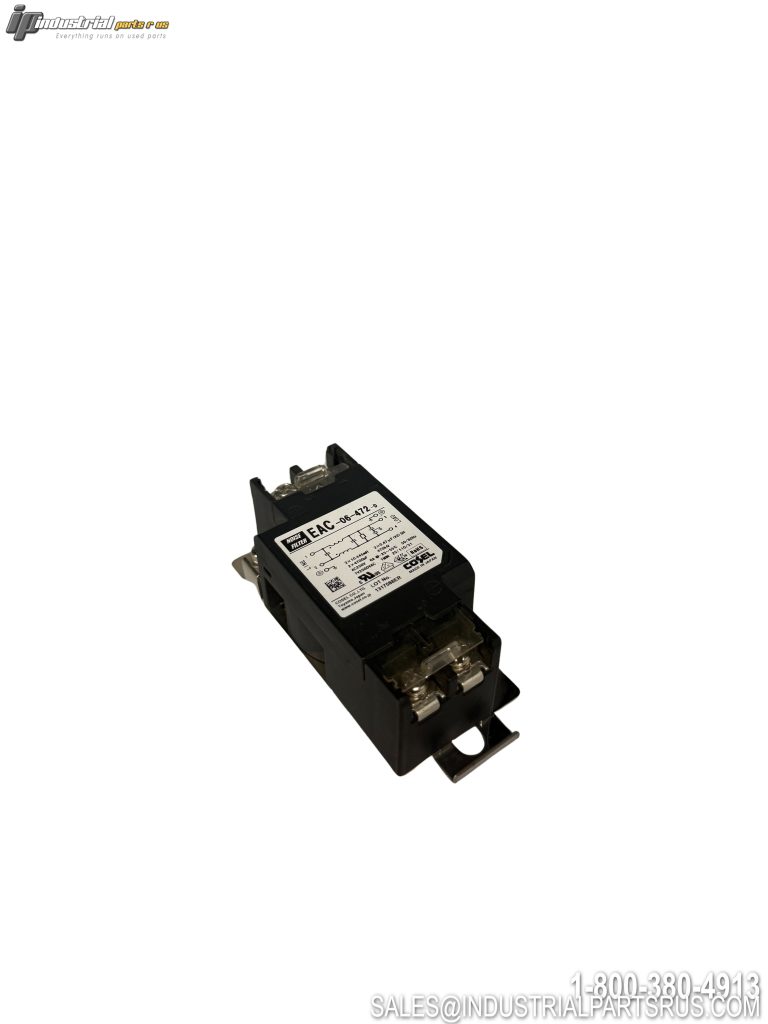

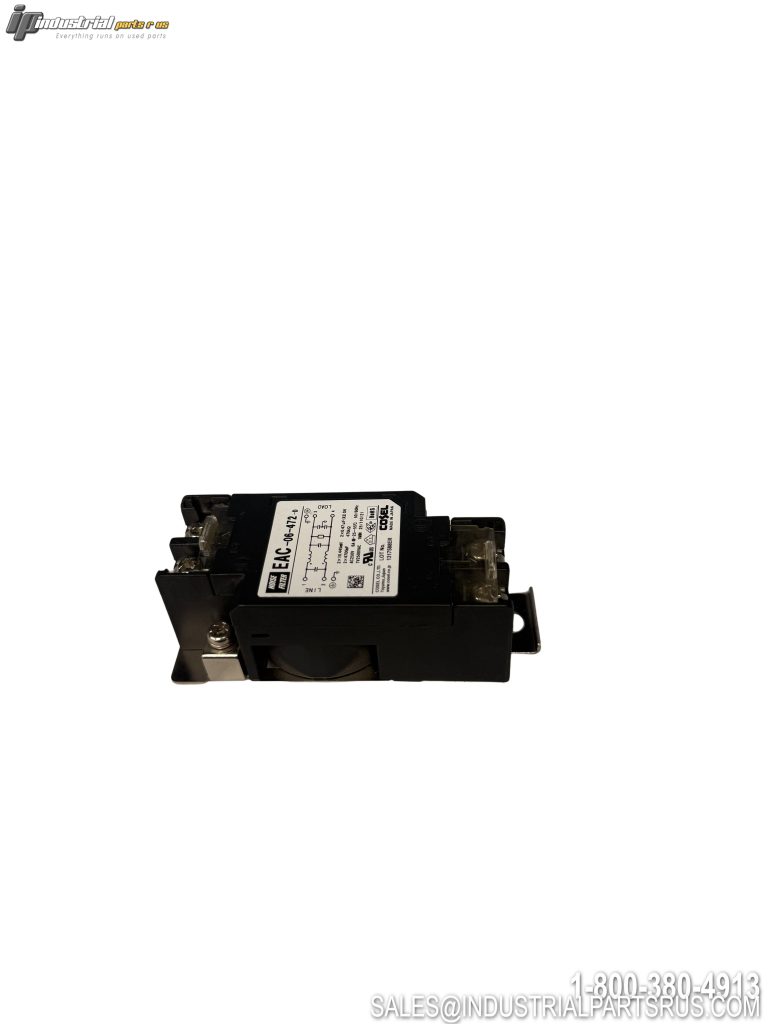

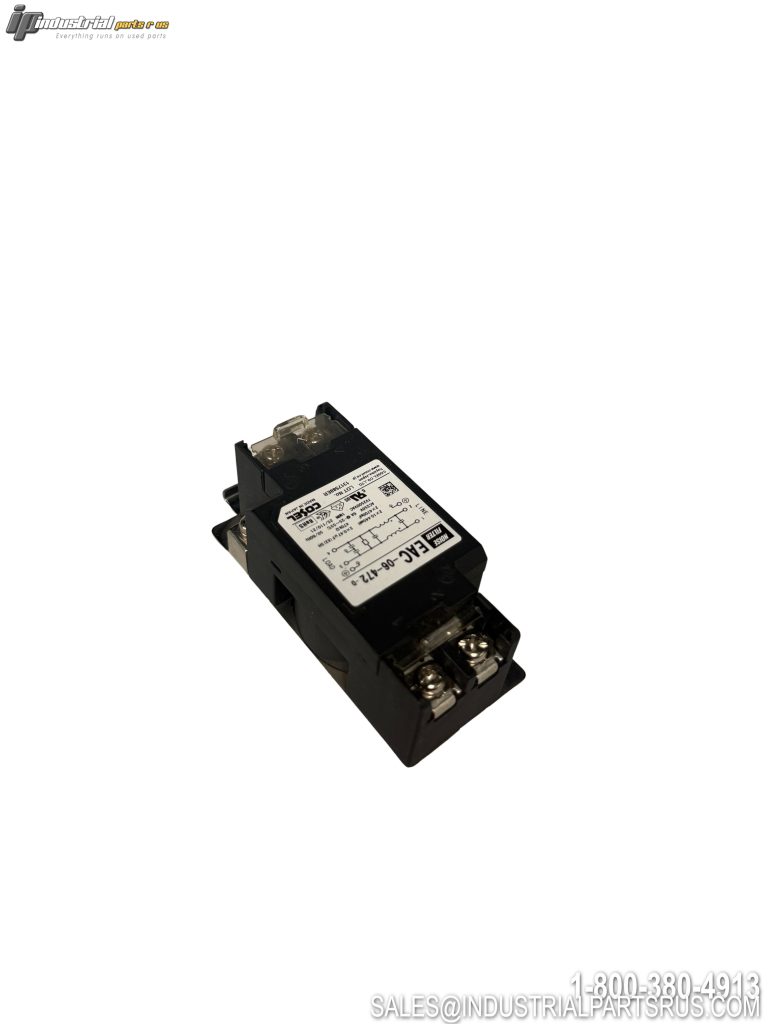

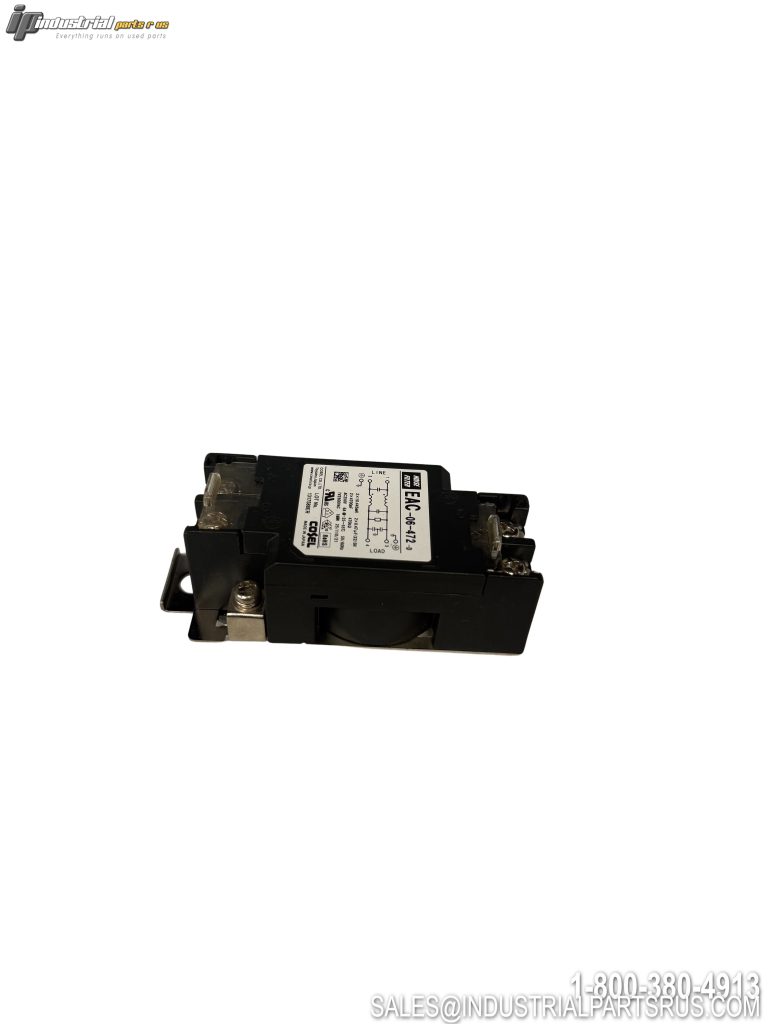

The COSEL EAC-06-472-D is a compact single-phase power line filter designed for EMI/EMC noise suppression in electrical systems. This filter operates in the 150kHz to 1MHz frequency range and features a 1-stage filtering design with terminal block connections and DIN rail mounting capability.
| Specification | Value |
|---|---|
| Brand | COSEL |
| Model/Part Number | EAC-06-472-D |
| Product Type | Power Line Filter |
| Series | EAC |
| Rated Voltage | AC 1-Phase 250V / DC 250V |
| Rated Current | 6A |
| Operating Frequency | 60Hz |
| Filter Range | 150kHz to 1MHz |
| Line to Ground Capacitor | 4700pF |
| Leakage Current | 0.5mA/1.0mA max (125/250V 60Hz) |
| Test Voltage | 2500 VAC (Terminal-Mounting Plate) |
| Isolation Resistance | 500 VDC 500MΩ min |
| Operating Temperature | -25°C to +85°C |
| Mounting Type | DIN Rail |
| Connection Type | Terminal Block |
| Dimensions (W×H×D) | 39×30×85 mm (1.54×1.18×3.35 inches) |
| Weight | 170g max |
| Safety Approvals | UL1283, CSA C22.2 No.8, DIN EN60939 VDE0565 |
| RoHS Compliant | Yes |
