Get notified when similar items arrive
1 in stock
| SKU | IP16282 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Control Relays, Industrial Controls, Safety Relays |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

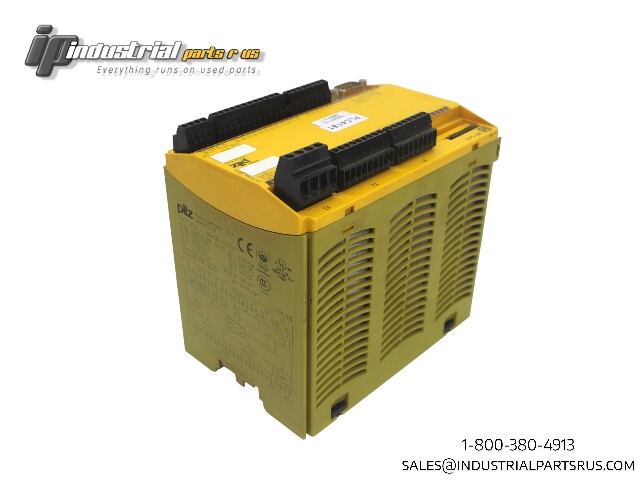

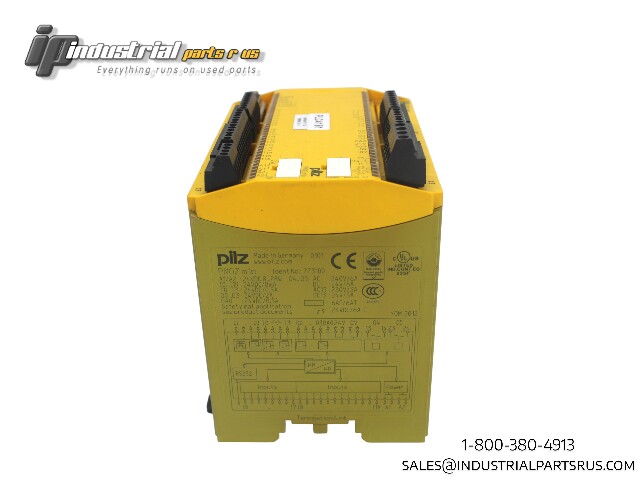

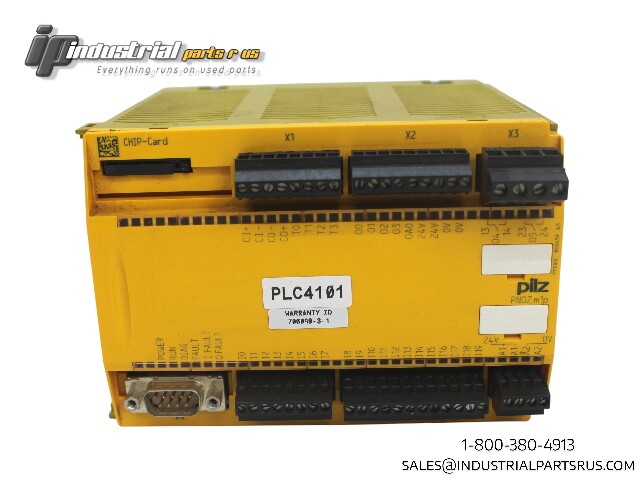

The Pilz 773100 is a configurable safety system PNOZmulti base module that's expandable with 20 safe digital inputs, 4 safe semiconductor outputs, and 2 safe relay outputs. This innovative safety controller features positive guided relay outputs and semiconductor outputs for use in industrial safety applications. The unit operates on 24VDC power supply and mounts on DIN rail with IP20 protection rating.
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | 773100 |
| Product Line | PNOZmulti Classic |
| Base Unit Model | PNOZ m1p |
| Supply Voltage | 24VDC |
| Supply Voltage Range | 20.4-28.8VDC |
| Safety Digital Inputs | 20 |
| Safety Semiconductor Outputs | 4 |
| Safety Relay Outputs | 2 |
| Test Pulse Outputs | 4 |
| Cascading Outputs | 1 |
| Communication Interface | RS-232 |
| Terminal Type | Screw or Spring-loaded |
| Mounting Type | DIN Rail |
| IP Rating | IP20 |
| Operating Temperature | 0 to 60°C |
| Dimensions (W x H x D) | 135 x 94 x 121 mm |
| Net Weight | 499g |
| Maximum Expansion Modules | 8 |
| Semiconductor Output Current | 2A |
| Relay Output Rating | 6A 24VDC / 6A 240VAC |
We warranty all items for 30 days from date of purchase.
| Brand | Pilz |
| Manufacturer | Pilz |
| Model | PNOZ m1p |
| MPN | 773100 |
| Part Number | 773100 |
| Condition | Used |
| Weight | 2.00 |
| Voltage | 24VDC |
| Coil Voltage | 24 VDC |
| Current Rating | 6 A |
| Current Type | DC |
| Mounting Style | DIN Rail |
| Shelf Location | F-18 |
| Country of Origin | Germany |
| Unit Type | Safety Controller |
| Application | Industrial Safety |
We warranty all items for 30 days from date of purchase. If the item is defective, we will provide a refund or replacement at our discretion.
Items may be returned within 30 days of receipt. Please contact us before shipping any return. Items must be in original condition. Shipping costs are non-refundable.
Orders placed before 2:00 PM EST Monday–Friday typically ship the same day via UPS or FedEx. We also offer Next Day Air and freight options for larger items.
Yes! We actively buy used industrial equipment including robots, motors, drives, PLCs, and more. Contact us at 800-380-4913 or email us for a quote.
