| SKU | AI0319 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Limit Switches |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

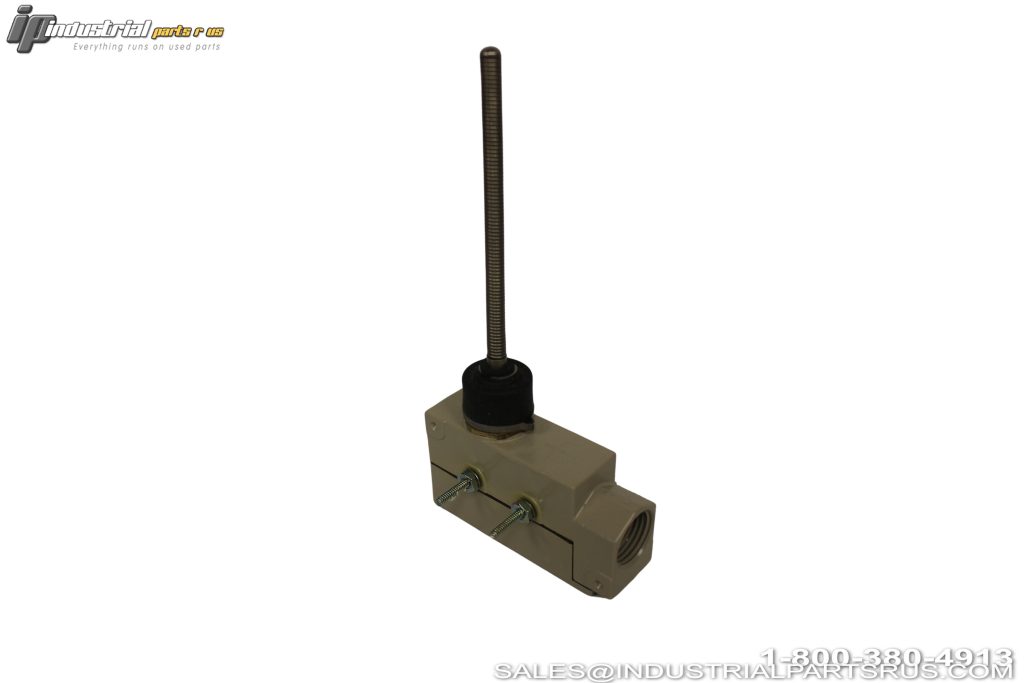

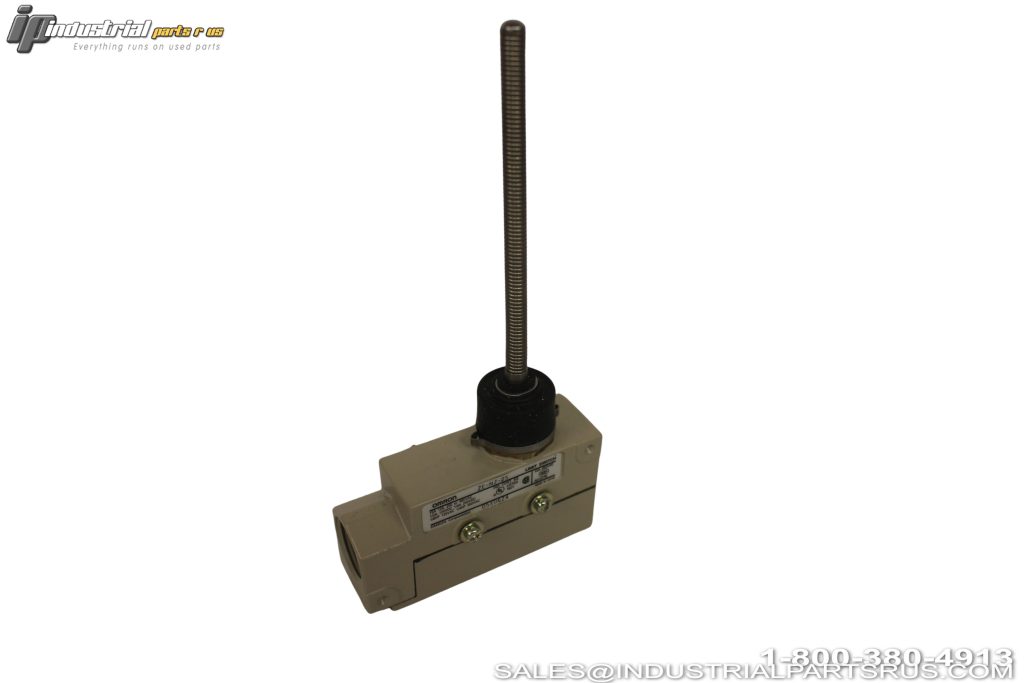

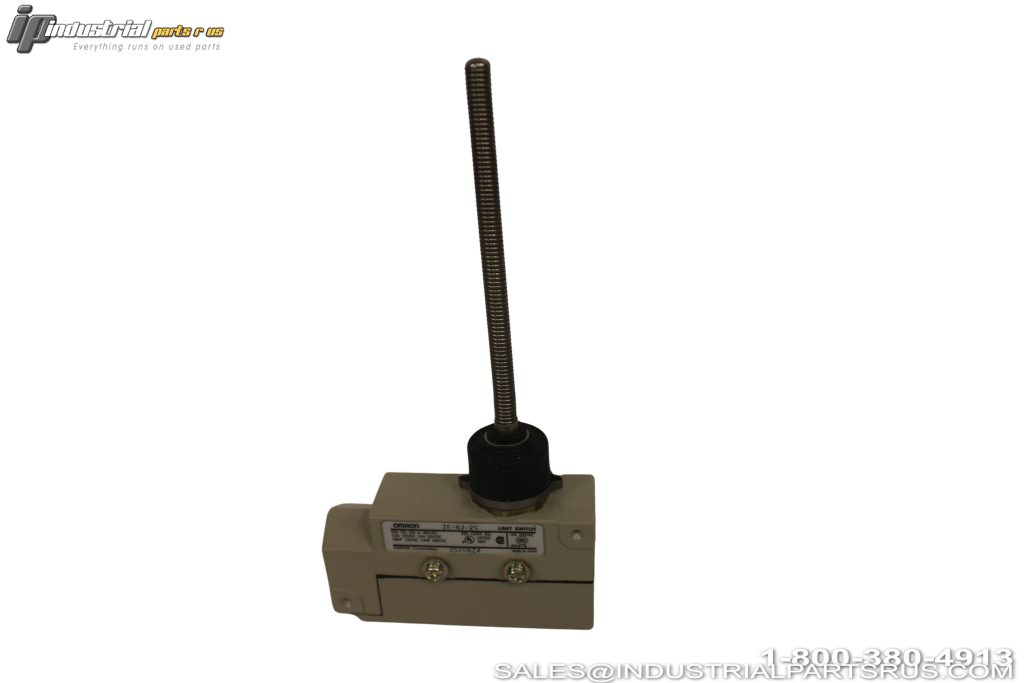

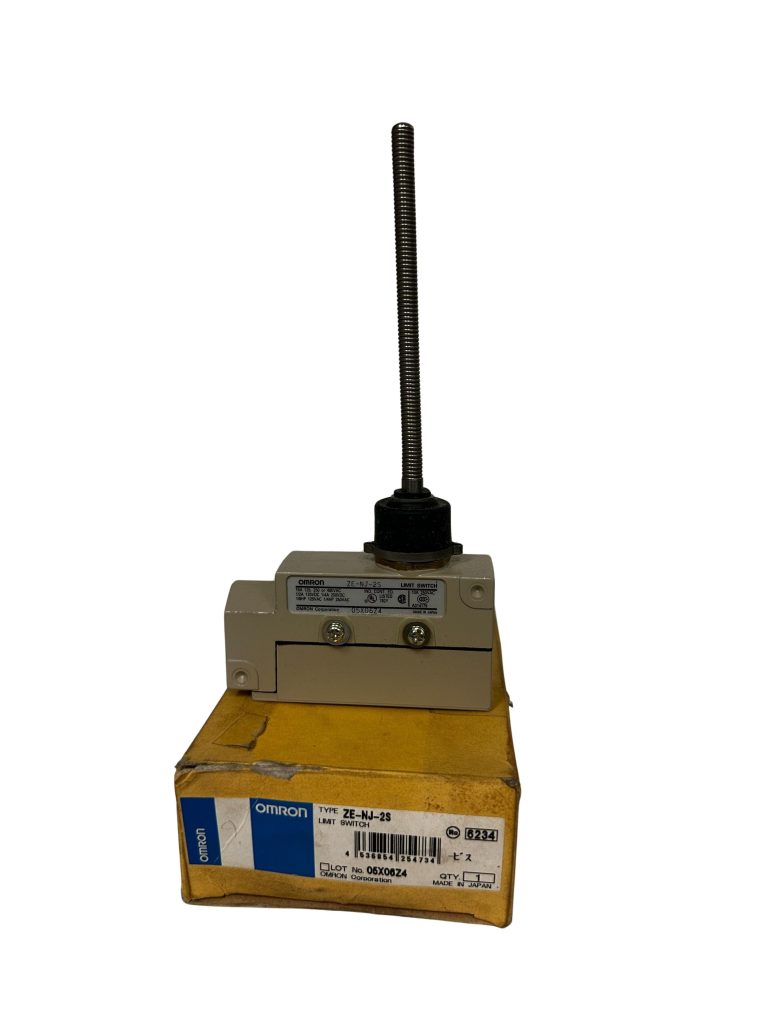

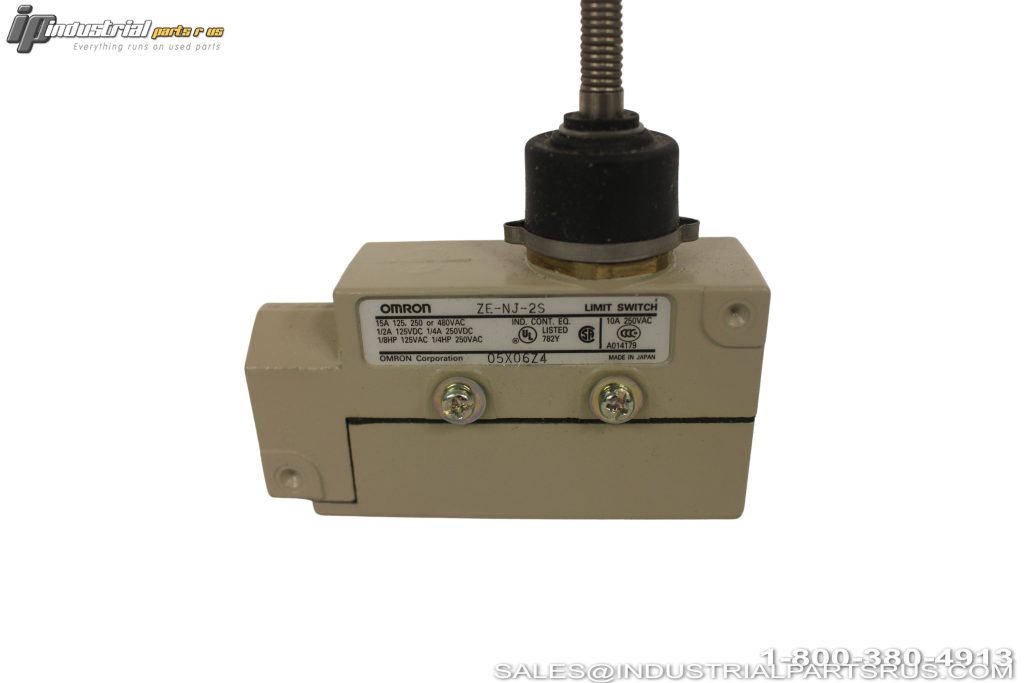

The OMRON ZE-NJ-2S is a heavy-duty enclosed limit switch from the ZE series, designed for industrial applications requiring reliable switching performance. This single-pole double-throw (SPDT) side-mount sealed limit switch features a coil spring actuator and rugged die-cast housing. The ZE series offers large breaking capacity and long service-life with a minimum mechanical life of 10 million operations.
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | ZE-NJ-2S |
| Series | ZE Series |
| Contact Configuration | SPDT (1NO 1NC) |
| Current Rating AC | 15A |
| Voltage Rating AC | 125-480VAC |
| Voltage Rating DC | 125-250VDC |
| Actuator Type | Sealed Coil Spring (Wobble Stick) |
| Actuator Location | Top |
| Operating Force | 1.47N (0.31 lbf) |
| Contact Resistance | 15 Milliohms Max |
| Mechanical Life | 10 Million Operations |
| Operating Temperature | -10°C to +80°C |
| NEMA Rating | 1, 2, 3, 4, 5 |
| IP Rating | IP65 |
| Connection Type | 1/2-14 NPSM |
| Mounting Type | Side Mount |
| Housing Material | Die-Cast Zinc |
| Mounting Hole Pattern | 25.4mm |
| Actuator Length | 4.55 inches |
| Body Dimensions | 3.39" W x 1.75" H x 1.01" D |
| Pre-Travel | 15 degrees |
| Certifications | UL, CSA, RoHS |
We warranty all items for 30 days from date of purchase.
| Brand | Omron |
| Manufacturer | Omron |
| Model | ZE-NJ-2S |
| MPN | ZE-NJ-2S |
| Part Number | ZE-NJ-2S |
| Condition | New |
| Weight | 1.00 |
| Enclosure Type | 1, 2, 3, 4, 5 |
| Mounting Type | Side Mount |
| Shelf Location | K-45 |
| Unit Type | Limit & Snap Action Switches |
