| SKU | AI0464 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Motor Starters |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

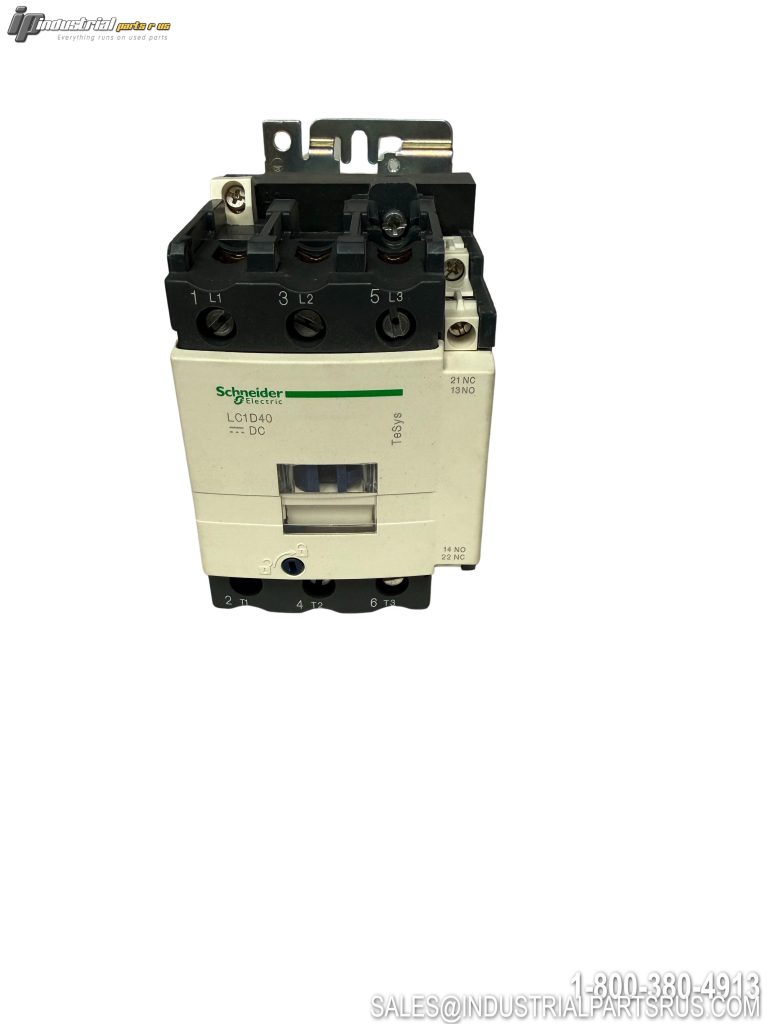

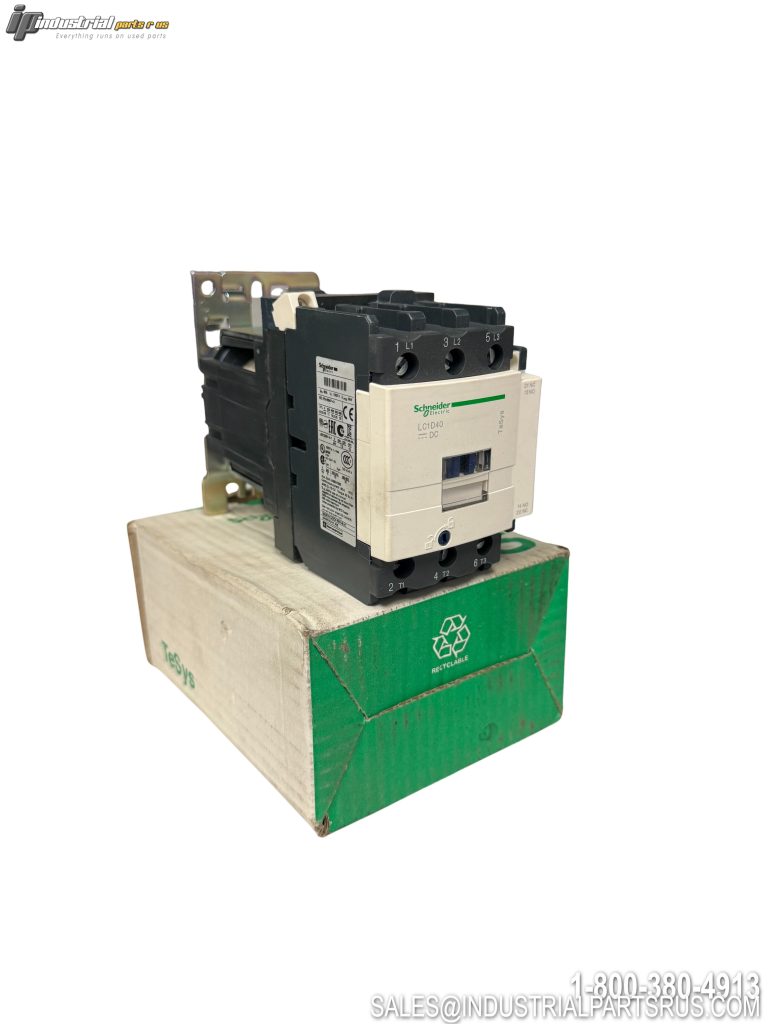

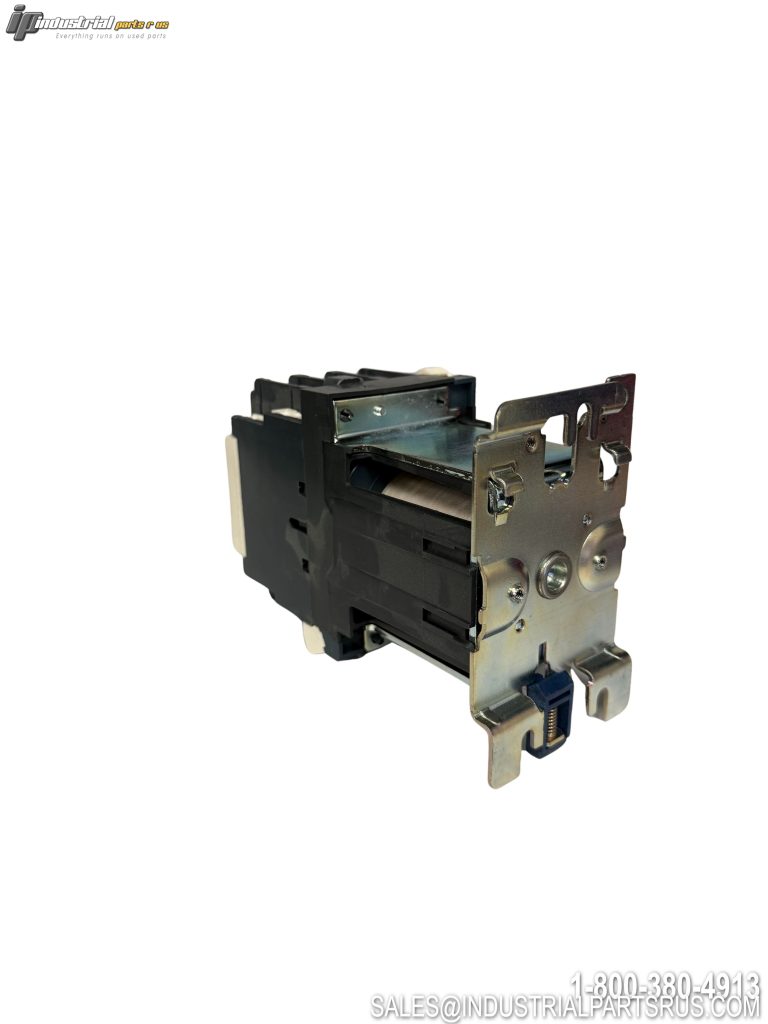

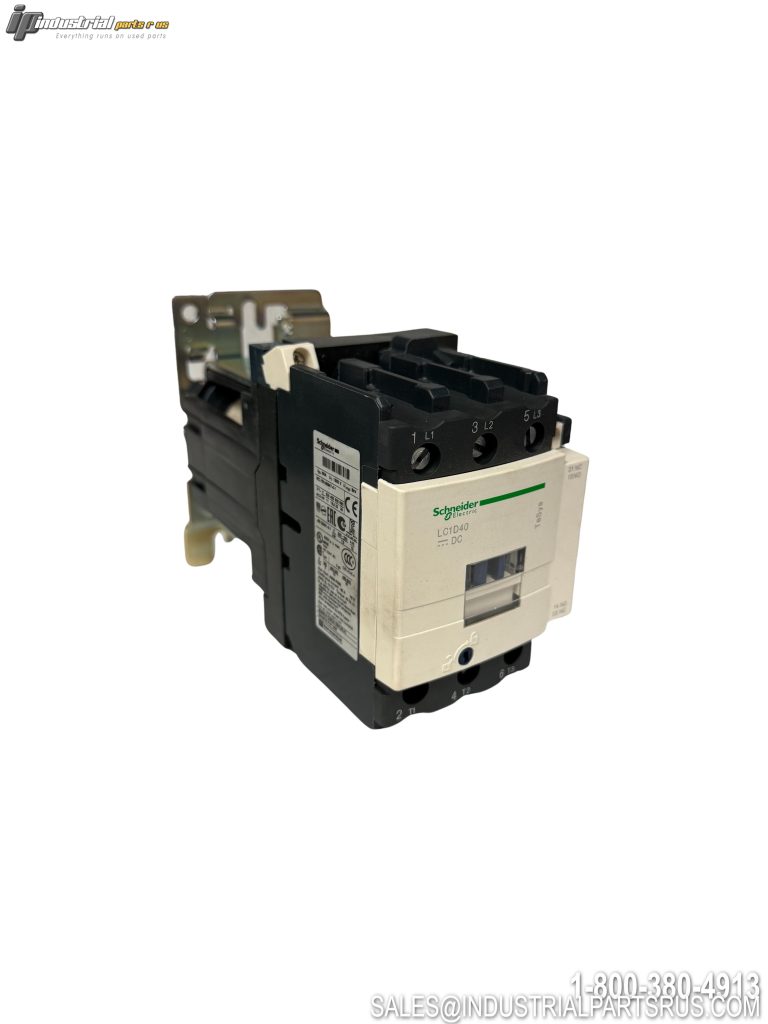

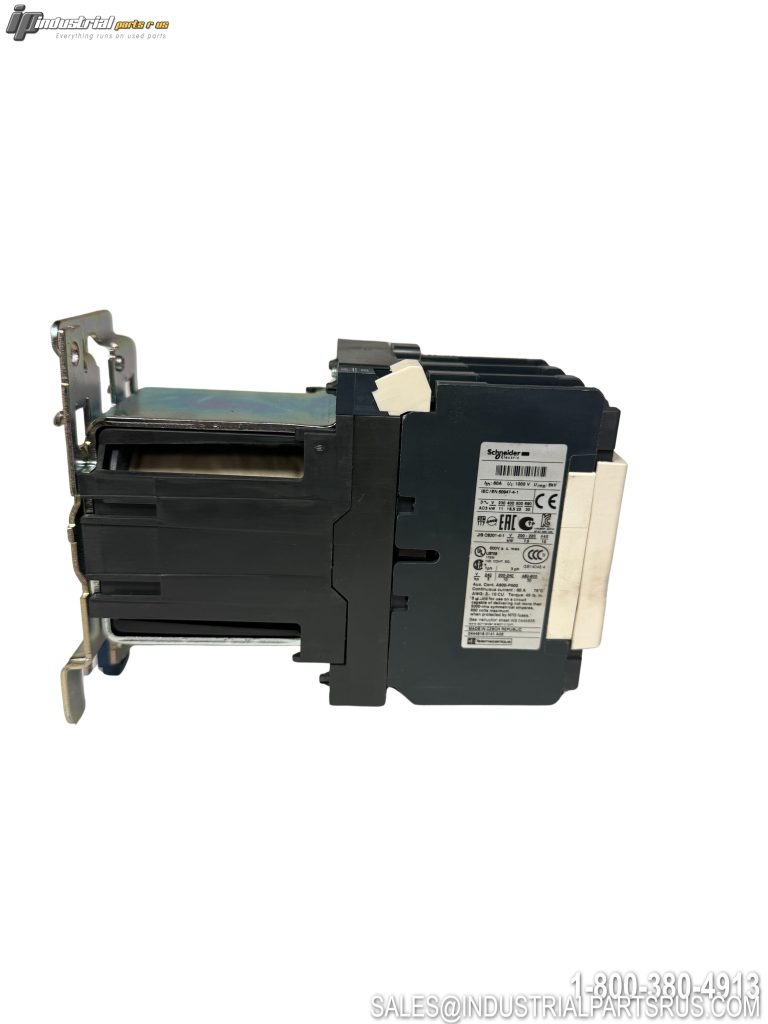

The Schneider Electric LC1D40BD is a 3-pole IEC contactor from the TeSys D series designed for industrial motor control applications. This non-reversing contactor features a 40A AC-3 inductive rating and 24VDC coil voltage, making it suitable for controlling motors up to 30HP at 480VAC and provides reliable switching for demanding industrial applications.
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Model/Part Number | LC1D40BD |
| Series | TeSys D |
| Poles | 3-Pole (3 N.O.) |
| Inductive Current Rating (AC-3) | 40A |
| Resistive Current Rating (AC-1) | 60A |
| Coil Voltage | 24VDC |
| Coil Voltage Range | 18-30VDC |
| Coil Power | 14W at 24VDC |
| Maximum Voltage Rating | 600VAC |
| Rated Operating Voltage (Ue) | 690V |
| Rated Impulse Voltage (Uimp) | 6kV |
| Horsepower Rating (1-Phase) | 3HP@115VAC, 5HP@230VAC |
| Horsepower Rating (3-Phase) | 10HP@200/230VAC, 30HP@460/575VAC |
| Auxiliary Contacts | 1NO + 1NC built-in |
| Connection Type | Screw Clamp Terminals |
| Mounting Type | DIN Rail or Panel Mount |
| Degree of Protection | IP20 |
| Mechanical Durability | 15,000,000 operations |
| Electrical Durability | 10,000,000 cycles |
| Action Type | Non-Reversing |
| Application Type | Direct On Line (DOL) FVNR |
| Short Circuit Current Rating | Up to 100kA SCCR |
We warranty all items for 30 days from date of purchase.
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Model | LC1 D40BD |
| MPN | LC1 D40BD |
| Part Number | LC1 D40BD |
| Condition | New |
| Weight | 3.00 |
| Mounting Type | DIN Rail or Panel Mount |
| Shelf Location | K-50 |
| Unit Type | Contactor |
