11 in stock
| SKU | AI0529 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Motor Starters |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

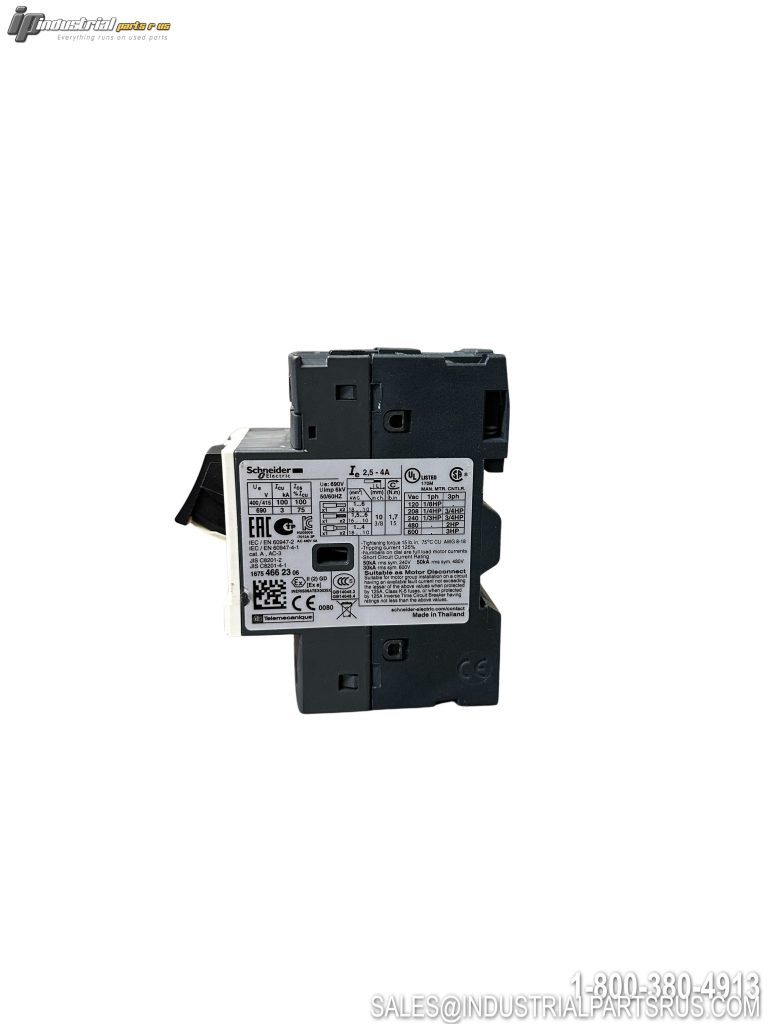

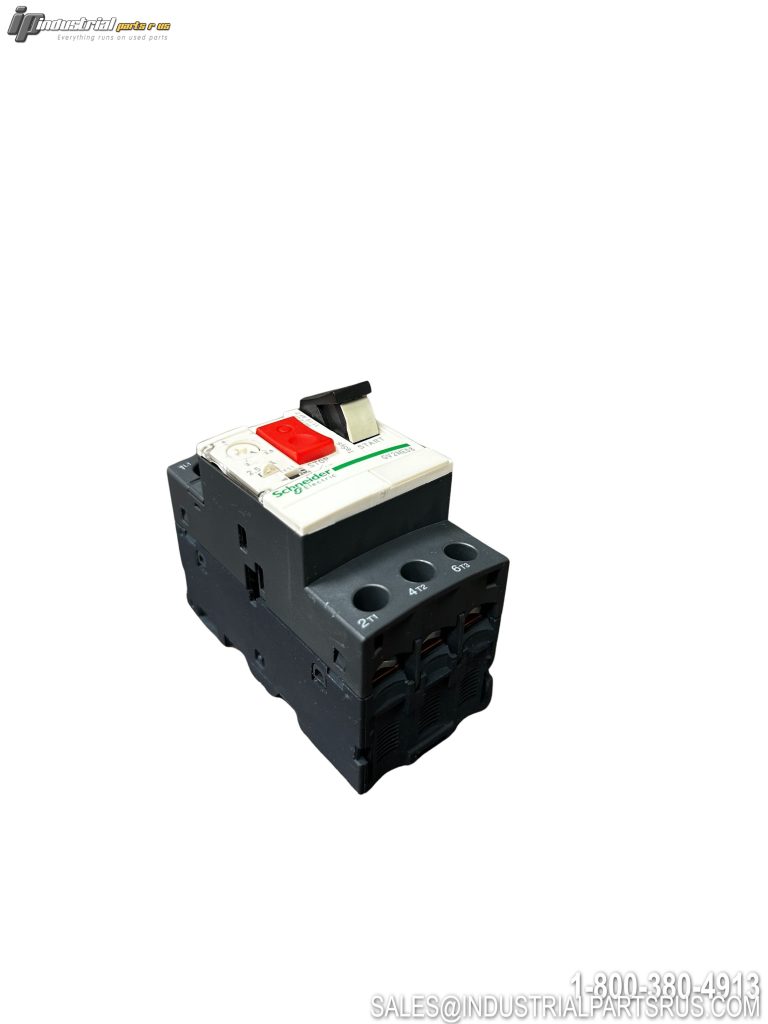

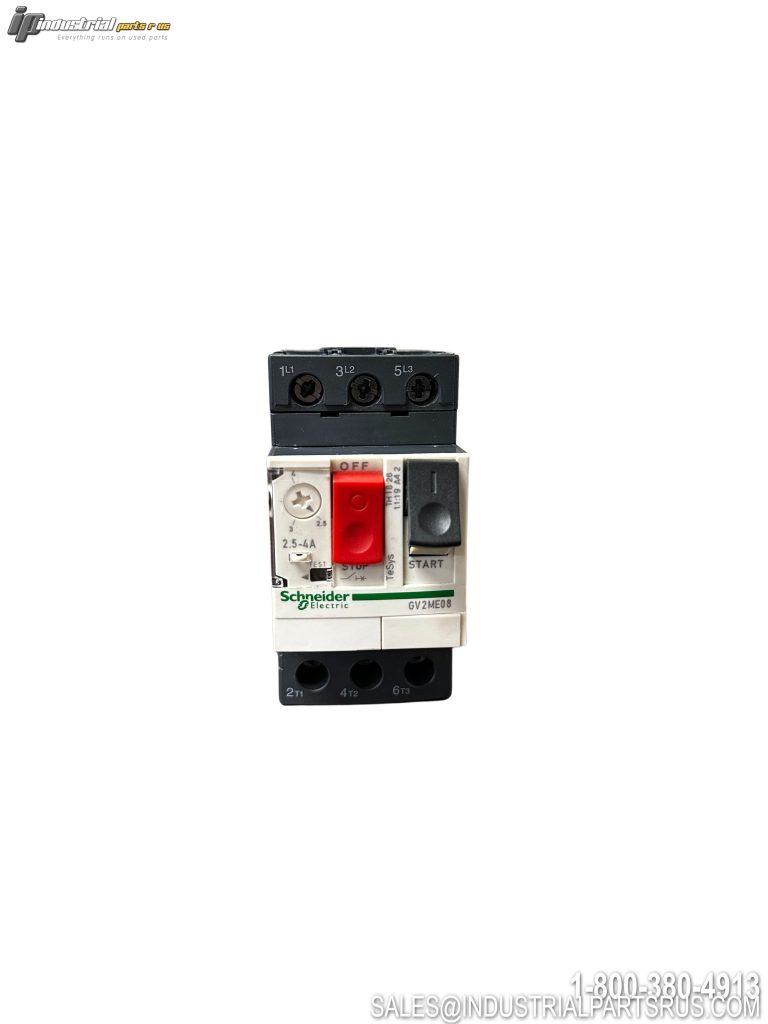

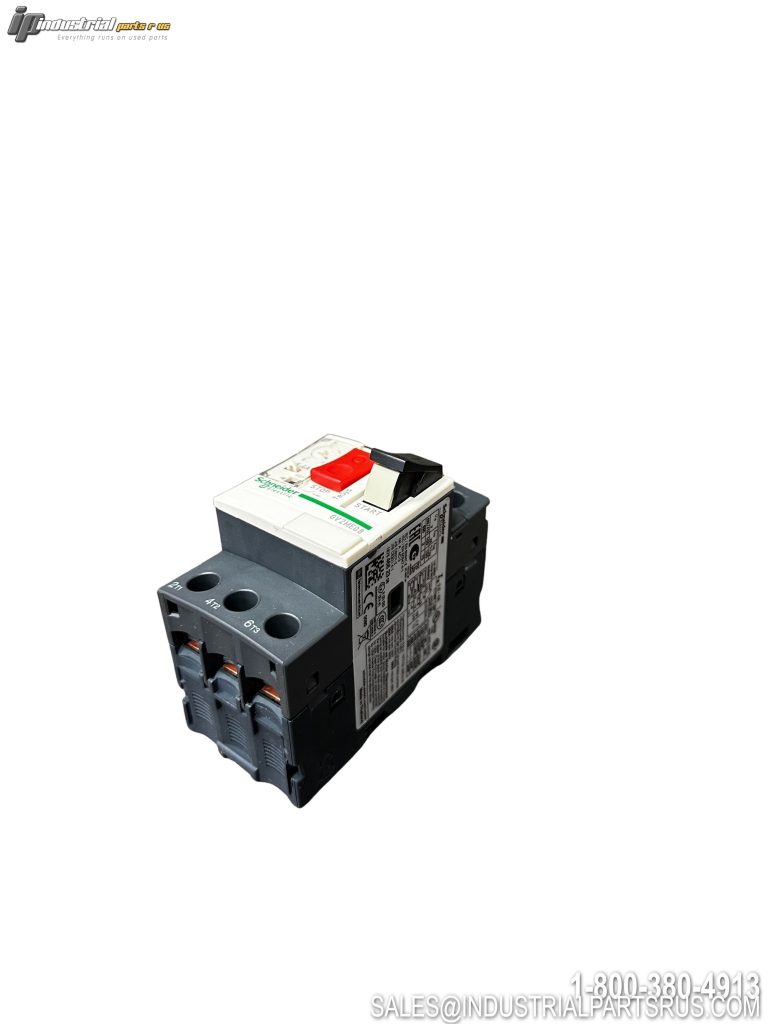

The Schneider Electric GV2ME08 is a TeSys GV2 manual motor starter and protector that provides motor control and thermal overcurrent protection in a compact unit. This 3-pole thermal-magnetic motor starter features pushbutton operation, adjustable trip current from 2.5A to 4A, and screw clamp terminals for secure connections.
| Specification | Value |
|---|---|
| Brand | Schneider |
| Model/Part Number | GV2ME08 |
| Series | TeSys GV2 |
| Product Name | TeSys GV2 |
| Number of Poles | 3-Pole |
| Current Rating | 2.5-4A |
| Voltage Rating | 690VAC Maximum |
| Trip Unit Technology | Thermal-Magnetic |
| Starter Type | Non-Reversing |
| Operator Type | Pushbutton |
| Terminal Type | Screw Clamp |
| Mounting Type | DIN Rail / Panel |
| Frequency | 50/60 Hz |
| Breaking Capacity | 100kA at 230/240VAC |
| Motor Power 1-Phase | 0.125HP@115VAC, 0.334HP@230VAC |
| Motor Power 3-Phase | 0.75HP@200VAC, 1HP@230VAC, 2HP@460VAC |
| Overload Type | Ambient Compensated Bimetallic (Class 10) |
| Dimensions (W x D x H) | 45mm x 78.5mm x 89mm |
| Operating Temperature | -20°C to +60°C |
| Enclosure Rating | IP20/IK04 |
| Approvals | UL, CSA, CE, IEC |
We warranty all items for 30 days from date of purchase.
| Brand | Schneider |
| Manufacturer | Schneider |
| Model | GV2MEO8 |
| MPN | GV2MEO8 |
| Part Number | GV2MEO8 |
| Condition | Used |
| Weight | 2.00 |
| Enclosure Type | IP20/IK04 |
| Mounting Type | DIN-rail, Panel |
| Shelf Location | J-79 tub-1 |
| Unit Type | Motor Starter |
We warranty all items for 30 days from date of purchase. If the item is defective, we will provide a refund or replacement at our discretion.
