Get notified when similar items arrive
2 in stock
| SKU | AI0259 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Safety Interlock Switches |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

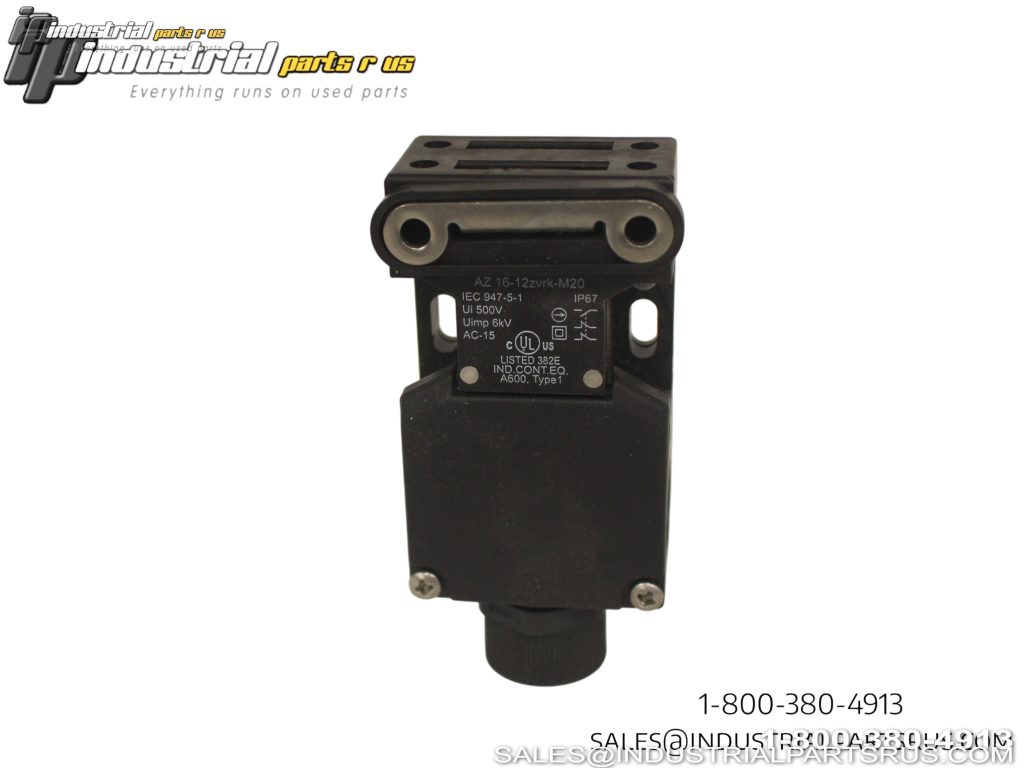

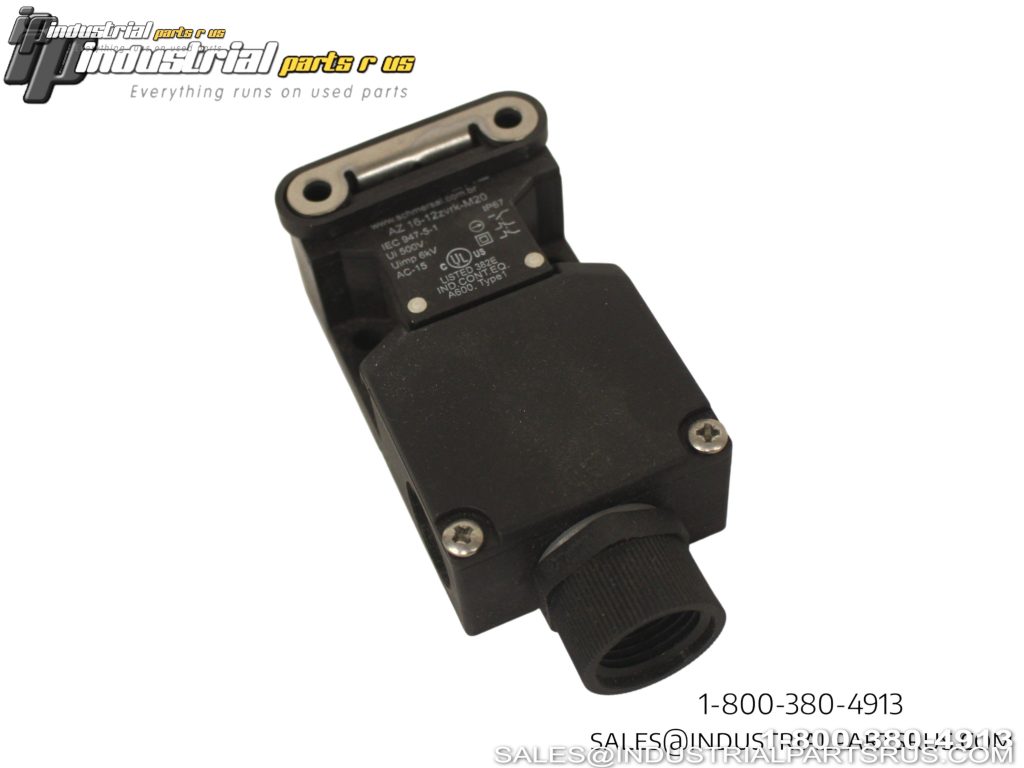

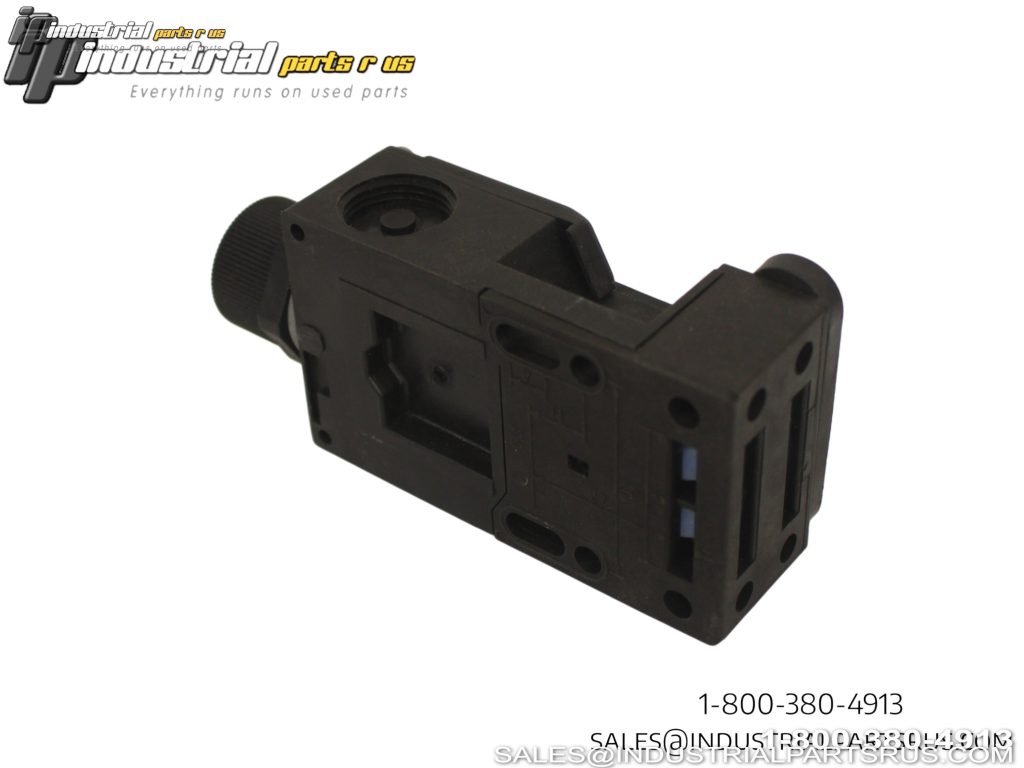

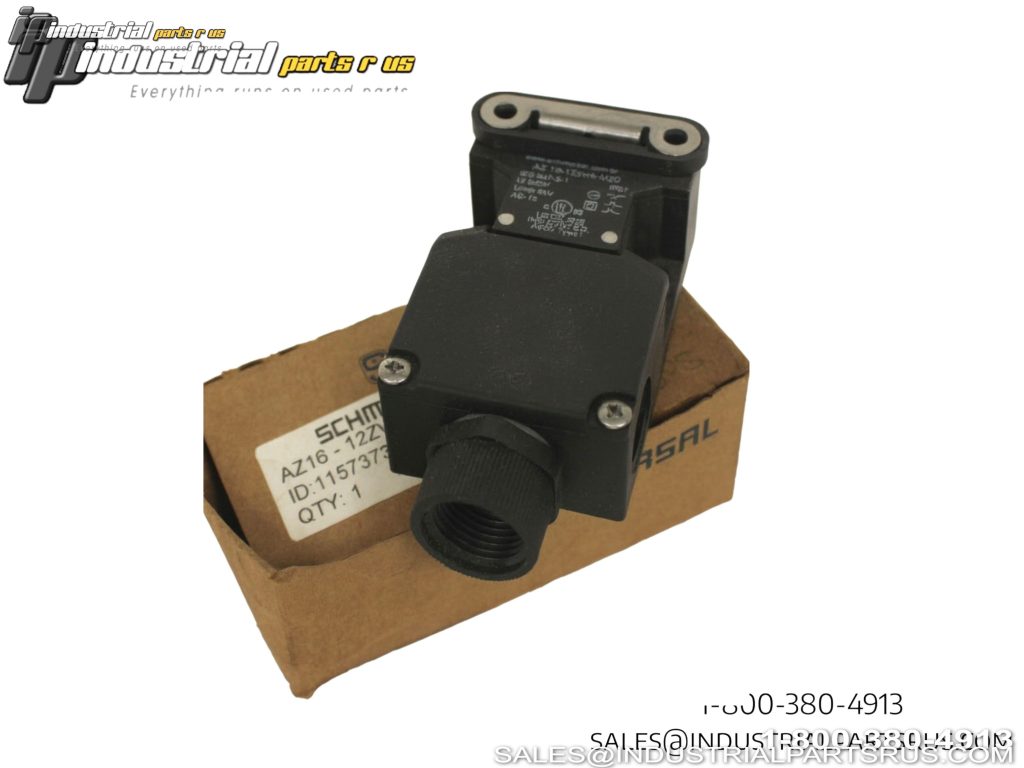

This Schmersal AZ 16-12zvrk-M20 is a professional safety interlock switch designed for industrial machine safety applications. The safety switches with separate actuator are suitable for sliding, hinged and removable safety guards, which need to be closed in order to ensure the necessary operational safety. The safety switchgears are classified according to EN ISO 14119 as type 2 interlocking devices. Features include 3 cable entries M 20 x 1.5, large wiring compartment, thermoplastic enclosure, double-insulated design, and dimensions of 52 mm x 90 mm x 30 mm.
| Specification | Value |
|---|---|
| Brand | Schmersal |
| Model/Part Number | AZ 16-12zvrk-M20 |
| Product Type | Safety Interlock Switch |
| Actuator Type | Separate Actuator Required |
| Contact Configuration | 1NO + 2NC |
| Contact Current AC Max | 4A |
| Contact Voltage AC Max | 230V |
| Contact Current DC Max | 4A |
| Contact Voltage DC Max | 24V |
| Operating Force Max | 30N |
| Latching Force | 30N |
| Cable Entry | 3 x M20 x 1.5 |
| Enclosure Rating | IP67 |
| Enclosure Material | Thermoplastic |
| Insulation | Double-insulated |
| Dimensions | 52mm x 90mm x 30mm |
| Safety Category | Cat. 3 / PL d (with 2-channel usage) |
| Standard Compliance | EN ISO 14119 Type 2 |
| RoHS Compliant | Yes |
| Weight | 120.8g |
We warranty all items for 30 days from date of purchase.
| Brand | Schmersal |
| Manufacturer | Schmersal |
| Model | AZ 16-12ZVRK-M20 |
| MPN | AZ 16-12ZVRK-M20 |
| Part Number | AZ 16-12ZVRK-M20 |
| Condition | New |
| Weight | 1.00 |
| Current Rating | 4A |
| Current Type | AC/DC |
| Enclosure Type | IP67 |
| Mounting Style | Panel Mount |
| Shelf Location | J-72 |
| Country of Origin | Germany |
| Unit Type | Safety Interlock |
| Application | Industrial Safety Guards |
We warranty all items for 30 days from date of purchase. If the item is defective, we will provide a refund or replacement at our discretion.
Items may be returned within 30 days of receipt. Please contact us before shipping any return. Items must be in original condition. Shipping costs are non-refundable.
Orders placed before 2:00 PM EST Monday–Friday typically ship the same day via UPS or FedEx. We also offer Next Day Air and freight options for larger items.
Yes! We actively buy used industrial equipment including robots, motors, drives, PLCs, and more. Contact us at 800-380-4913 or email us for a quote.
