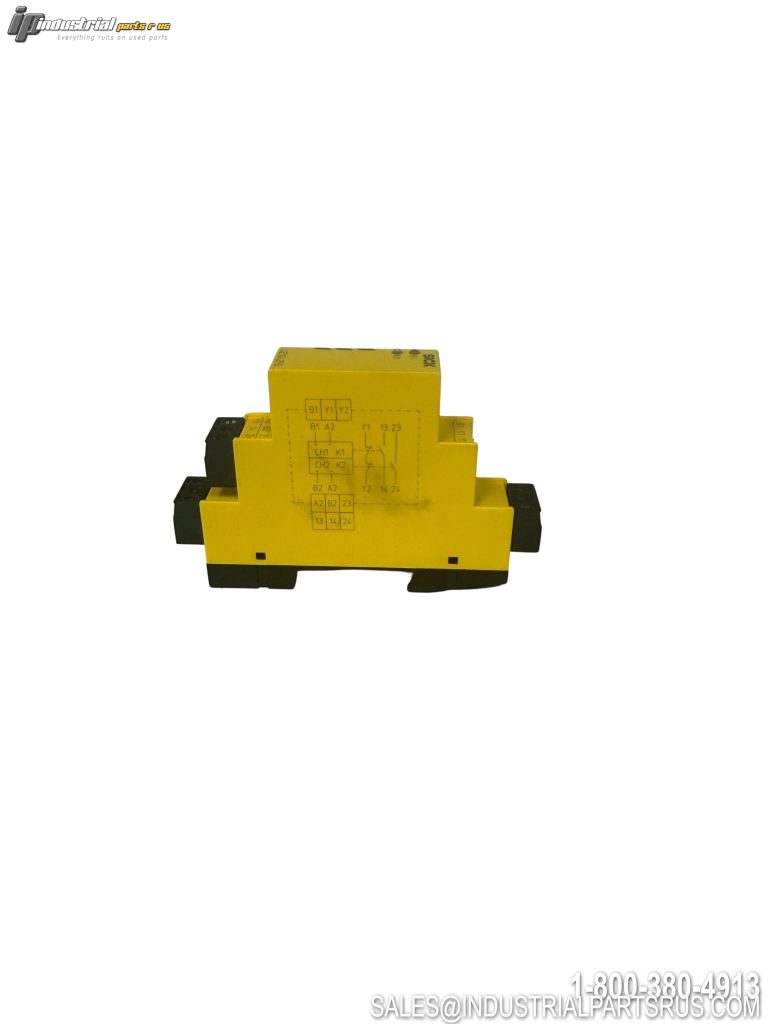

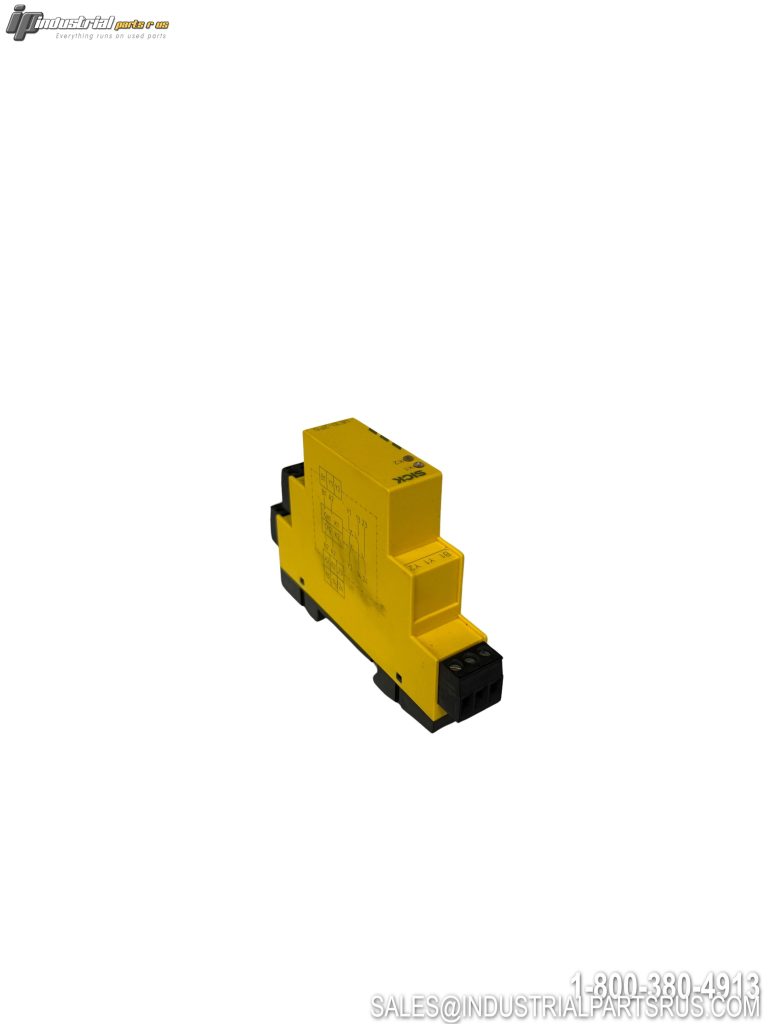

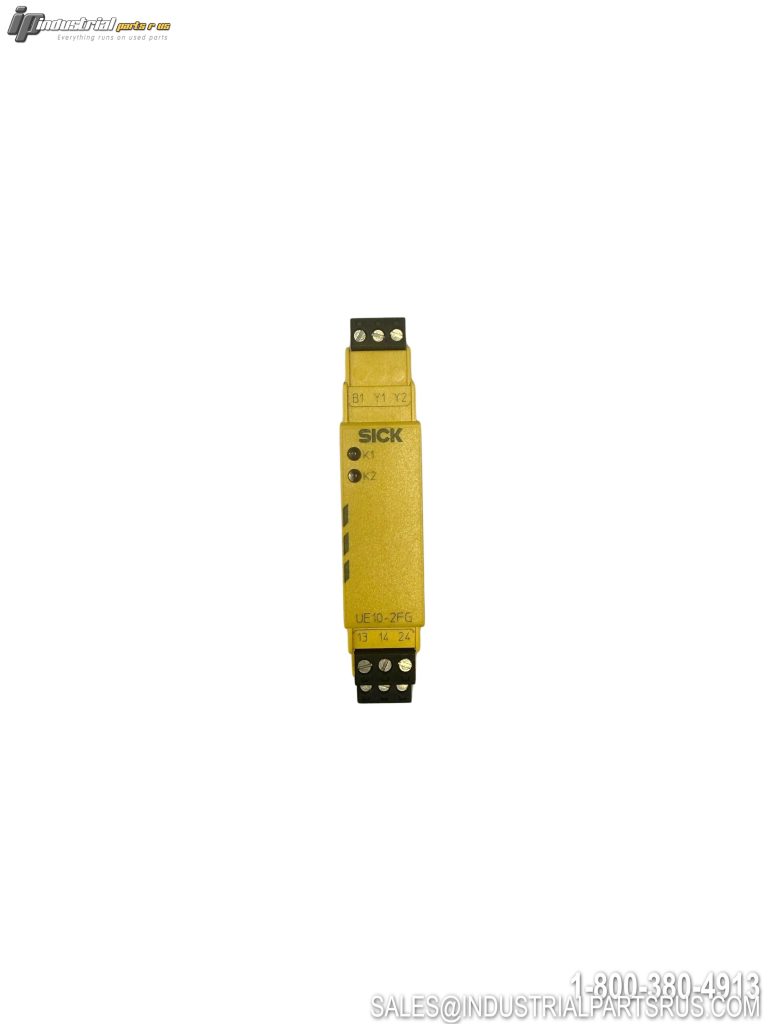

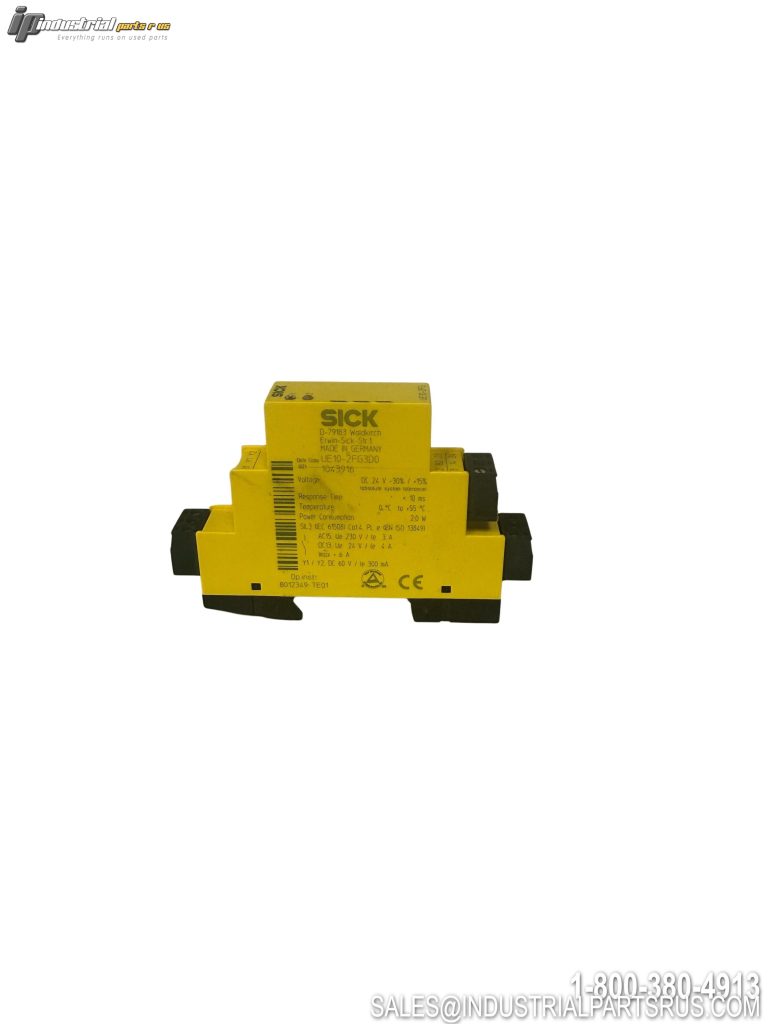

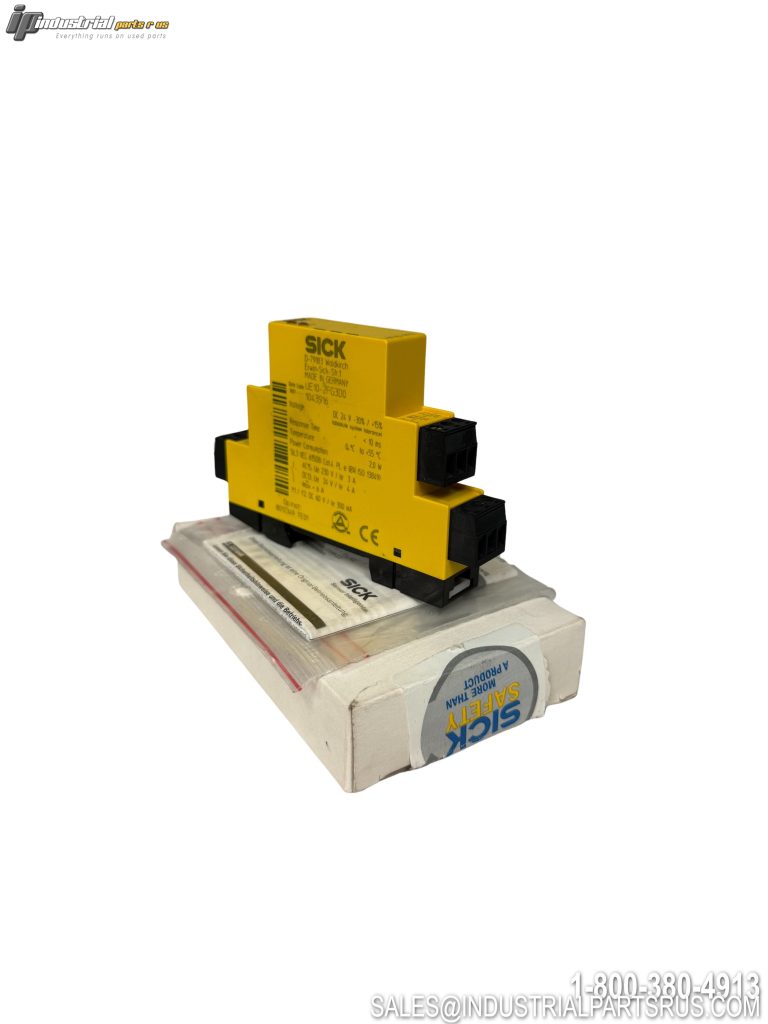

The SICK UE10-2FG3D0 is a professional-grade safety relay designed for critical safety applications in industrial automation. This relay features 2 normally open enabling current paths and 1 normally closed feedback current path for external device monitoring (EDM). It meets the highest safety standards with SIL 3 certification per IEC 61508 and Category 4 per EN ISO 13849, making it suitable for demanding safety-critical applications.
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | UE10-2FG3D0 |
| Manufacturer Part Number | 1043916 |
| Input Voltage | 24VDC (16.8-27.6VDC) |
| Input Current | ≤50mA |
| Number of Enabling Current Paths | 2 (Normally Open) |
| Number of Feedback Current Paths | 1 (Normally Closed) |
| Contact Type | Positively Driven |
| Contact Material | Silver Alloy, Gold Flashed |
| Switching Voltage - Enabling Path | 10-250V AC/DC |
| Switching Voltage - Feedback Path | 0.1-60V AC/DC |
| Current Loading - Enabling Path | 10mA-6A |
| Current Loading - Feedback Path | 1mA-300mA |
| Switching Power | ≤1,500VA (AC), ≤200W (DC) |
| Rated Operating Current | 3A (230VAC), 4A (24VDC) |
| Response Time | ≤10ms |
| Reset Time | ≤30ms |
| Test Pulse Width | ≤1ms |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| Rated Insulation Voltage | 300VAC |
| Rated Impulse Withstand Voltage | 4kV |
| Enclosure Rating | IP20 (Clamps), IP40 (Housing) |
| Operating Temperature | 0°C to 55°C |
| Terminal Type | Plug-in Screw Type |
| Mounting | DIN Rail |
| Weight | 134.3g |
| Mechanical Life | 1 x 10⁷ Switching Cycles |
We warranty all items for 30 days from date of purchase.
| Brand | SICK |
| Manufacturer | SICK |
| Model | UE10-2FG3D0 |
| MPN | UE10-2FG3D0 |
| Part Number | UE10-2FG3D0 |
| Condition | New |
| Weight | 1.00 |
| Coil Voltage | 24VDC |
| Current Type | 2 (Normally Open) |
| Enclosure Type | IP20 (Clamps), IP40 (Housing) |
| Mounting Type | DIN Rail |
| Mounting Style | DIN Rail |
| Shelf Location | K-45 |
| Country of Origin | Germany |
| Unit Type | Safety Relay |
