| SKU | AI0104 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Safety Relays |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

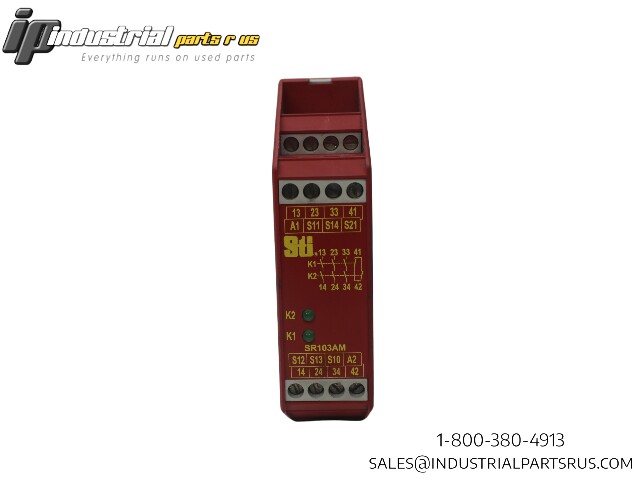

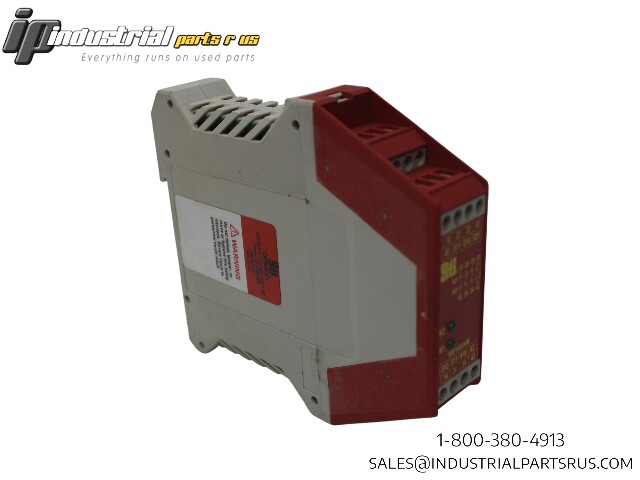

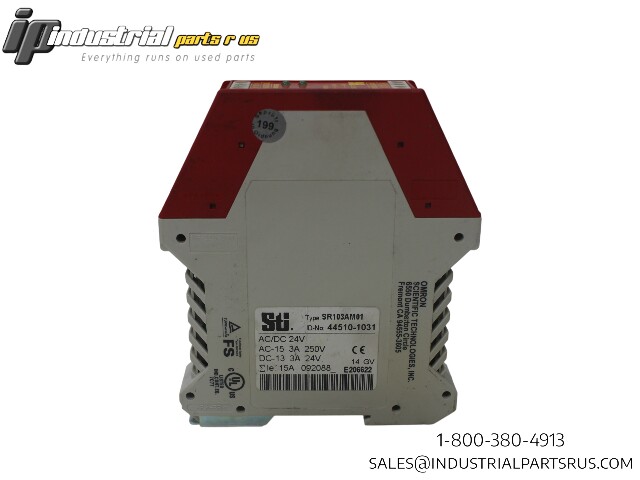

The STI SR103AM01 is a dual-channel safety monitoring relay designed for industrial safety applications. This relay provides 3 N/O outputs to route power to the coils of power contactors, plus 1 N/C auxiliary output for signaling purposes, with External Device Monitoring (EDM) provided with a N/C loop. It features DIN rail mounting and operates at 24VAC/DC supply voltage.
| Specification | Value |
|---|---|
| Brand | STI |
| Model/Part Number | SR103AM01 |
| Product Type | Safety Relay |
| Coil Voltage | 24V AC/DC |
| Input Type | 1 N/C or 2 N/C or 2 solid state |
| Safety Outputs | 3 N/O |
| Auxiliary Output | 1 N/C |
| Contact Rating AC | 3A @ 230VAC (AC-15) |
| Contact Rating DC | 2A @ 24VDC (DC-13) |
| Power Consumption | Approx. 1 VA |
| Max Input Resistance | 800 Ohms per channel |
| Mounting Type | 35mm DIN Rail |
| Enclosure Rating | IP20 / IP40 / NEMA 1 |
| Operating Temperature | -15°C to +40°C |
| Reset Mode | Monitored manual or automatic/manual |
| Impulse Withstand Voltage | 2500V |
| Weight | 230g (8.1 oz) |
| Color | Red |
| Part Number (STI) | 44510-1031 |
We warranty all items for 30 days from date of purchase.
| Brand | STI |
| Manufacturer | STI |
| Model | SR103AM01 |
| MPN | SR103AM01 |
| Part Number | SR103AM01 |
| Condition | Used |
| Weight | 1.00 |
| Coil Voltage | 24V AC/DC |
| Amperage | 3A |
| Current Rating | 3A |
| Current Type | AC/DC |
| Shelf Location | F-19 Tub 2 |
| Country of Origin | United States |
| Unit Type | Safety Relay |
