Get notified when similar items arrive
1 in stock
| SKU | AI0593 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Timers & Counters |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

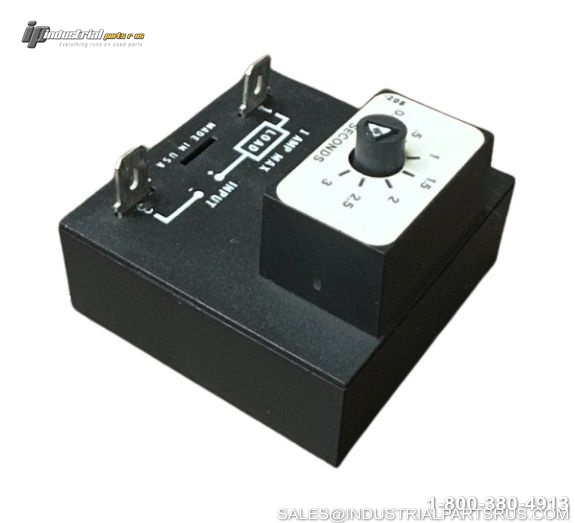

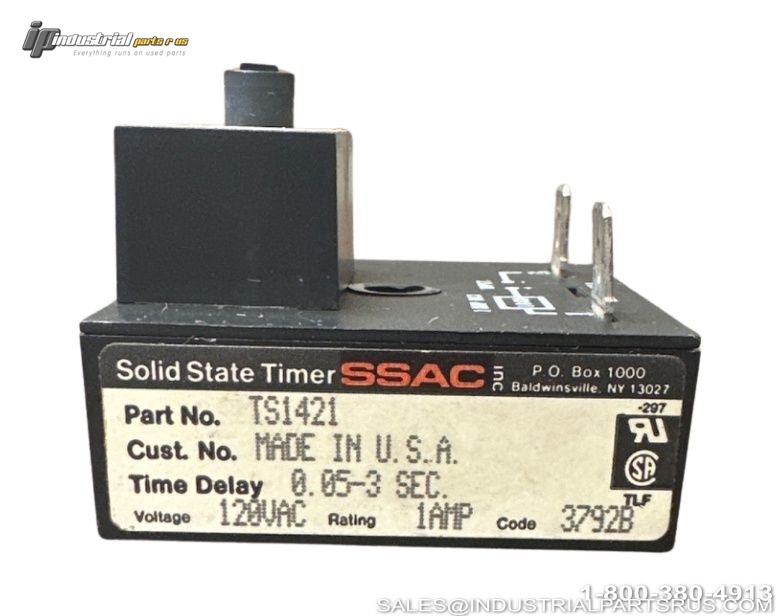

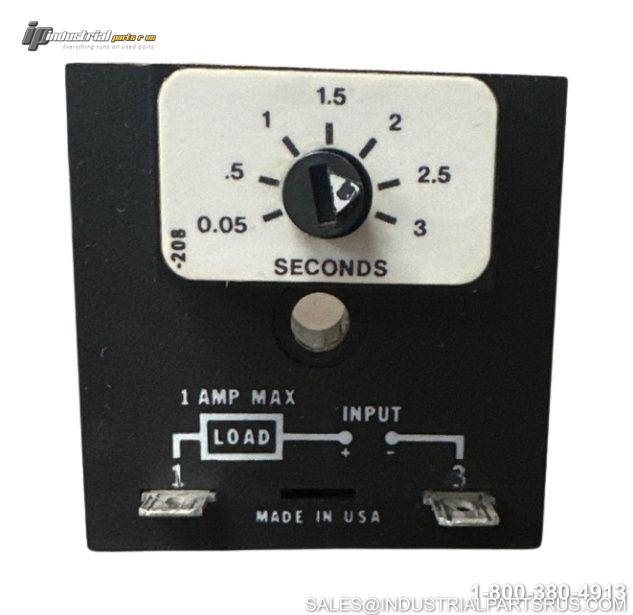

The Ssac TS1421 is a solid-state timing module from the TS1 Series Versa-Timer family that offers proven reliability and performance with years of use in OEM equipment and commercial applications. This encapsulated general use timing module is capable of controlling load currents ranging from 5mA to 1A. It may be connected in series with contactors, relays, valves, solenoids, small motors, and lamps. The TS1421 provides delay-on-make timing with a 120VAC input voltage, 0.05 to 3 second timing range, and 1 amp maximum load current with 10 amp maximum inrush current capability.
| Specification | Value |
|---|---|
| Brand | Ssac |
| Model/Part Number | TS1421 |
| Type | Time Delay Relay |
| Operation Mode | Delay-on-Make |
| Input Voltage | 120VAC |
| Timing Range | 0.05 to 3 seconds |
| Output Current Rating | 1 amp maximum load |
| Maximum Inrush Current | 10 amp |
| Output Type | Solid State - N/O |
| Load Current Range | 5mA to 1A |
| Adjustment Type | External Adjustable |
| Size | 2x2 inches |
| Mounting Type | Surface Mount |
| Series | TS1 |
| Enclosure Type | Encapsulated |
| Repeat Accuracy | ±2% |
We warranty all items for 30 days from date of purchase.
| Brand | SSAC |
| Manufacturer | SSAC |
| Model | TS1421 |
| MPN | TS1421 |
| Part Number | TS1421 |
| Condition | Used |
| Material | Encapsulated Plastic |
| Weight | 3.00 |
| Coil Voltage | 120VAC |
| Current Rating | 1A |
| Current Type | AC |
| Number of Phases | 1 |
| Series | TS1 |
| Enclosure Type | Encapsulated |
| Mounting Type | Surface Mount |
| Mounting Style | Surface Mount |
| Output Type | Solid State - N/O |
| Shelf Location | K-46 |
| Country of Origin | United States |
| Unit Type | Time Delay Relay |
| Features | External Adjustable, Delay-on-Make, Encapsulated |
