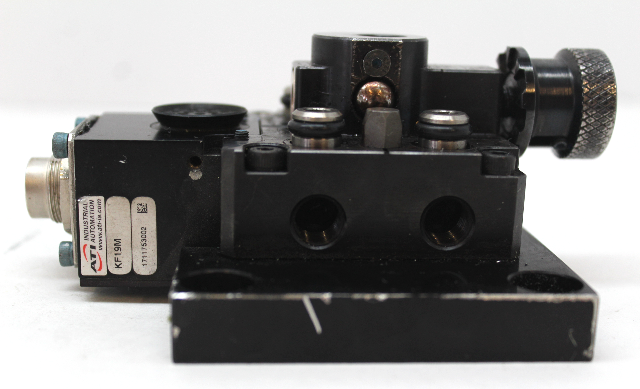

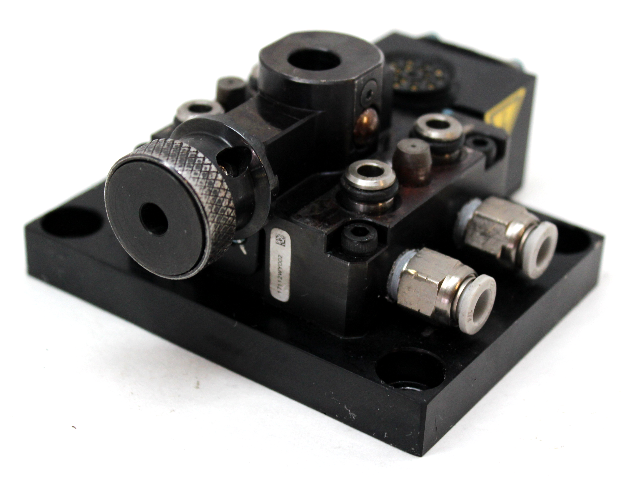

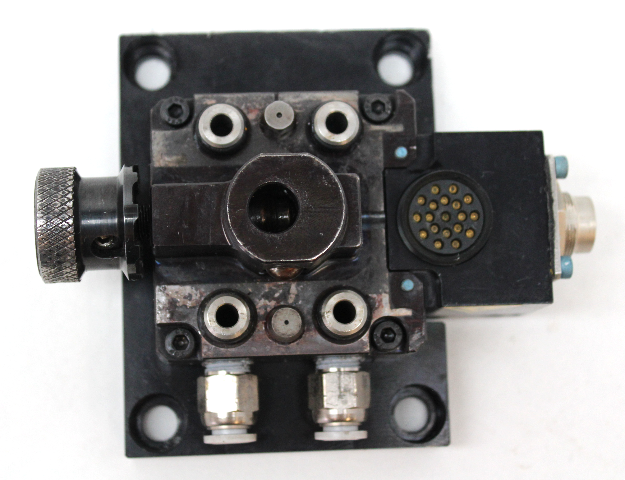

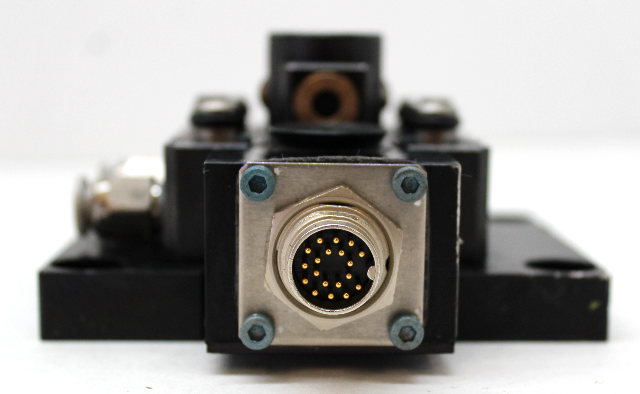

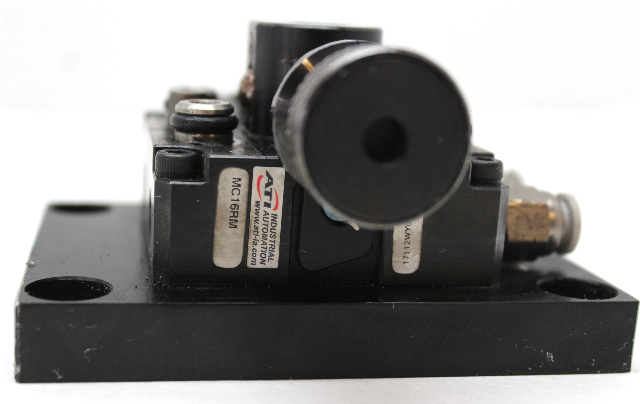

ATI Industrial Automation Manual Tool Changer MC 16RM w/KF19M Electrical Module
-
| Product Advantages |
- Screw-style locking mechanism (patented) results in high locking force.
- Manual one-handed Lock and Unlock actuation.
- Ratchet Knob adds security to locked position.
- Rated to 16 kg (35 lb) payload.
- High strength-to-weight ratio.
- Ball-Lock with Cam.
- Very small package size.
- Standard units feature (4) integrated pass-through air ports.
- One (1) flat for mounting additional ATI utility modules.
- "NP" versions available with port components removed on the Master.
|
| Suggested Payload Limit: |
35 lb |
| Static Moment Capacity (X & Y): |
220 lbf-in |
| Static Moment Capacity (Z): |
400 lbf-in |
| Positional Repeatability - (X, Y, & Z): |
0.001 in |
| Weight - when coupled: |
1.62 lb |
| Pneumatic Pass-through Ports (qty) Size: |
(4) 1/8 NPT |
