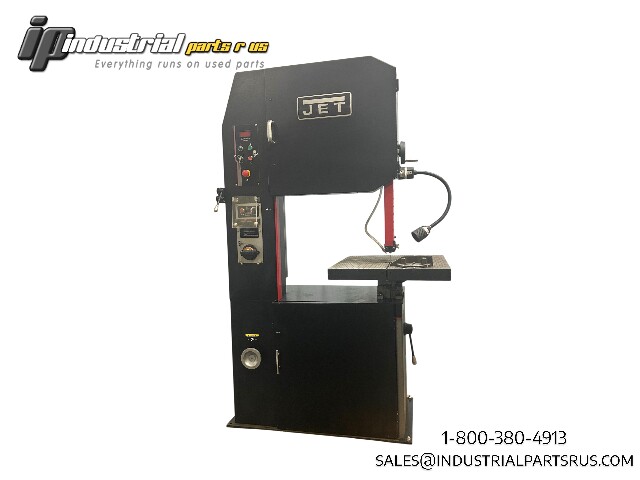

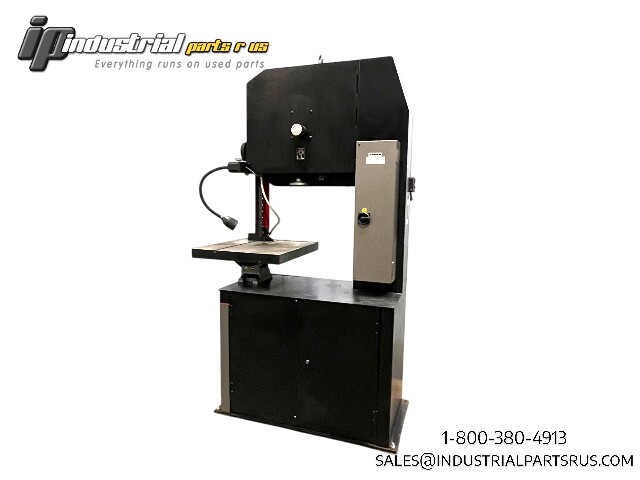

JET EVBS-26 Electric Variable Speed Vertical Bandsaw

JET EVBS-26 Electric Variable Speed Vertical Bandsaw

General

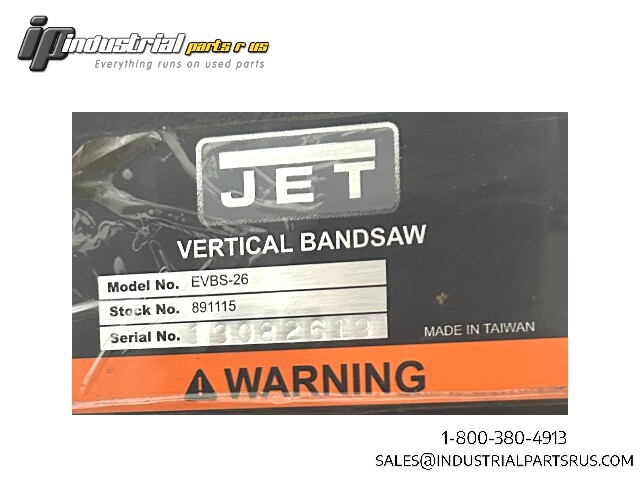

• Model: EVBS-26

• Type: Vertical Bandsaw

• Stock No.: 891115

• Throat Capacity: 26 in (ability to reach into larger workpieces)

• Maximum Cutting Height: ~14 in (vertical cutting capacity)

Blade

• Blade Length: 185-1/2 in

• Blade Width Range: 1/8 – 1 in

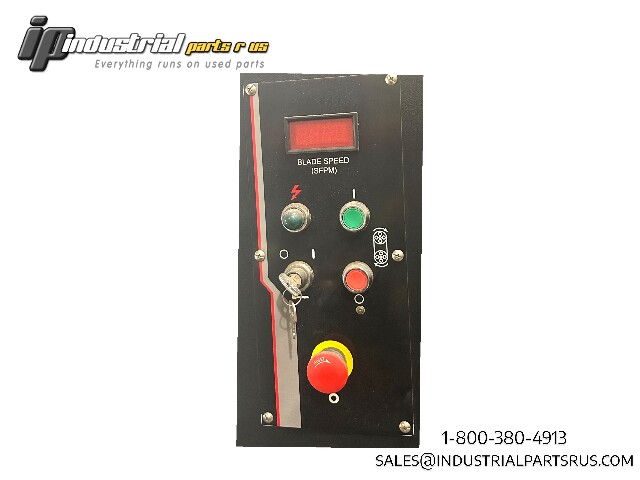

• Blade Speeds: Variable from 50 to 5,000 SFPM (surface feet per minute) — allows tuning speed to material type

• Blade Guides: Tungsten carbide with precision bearings for stability and accuracy

Motor / Power

• Motor: 3 HP (three-phase)

• Voltage: 230/460 V, 3-Phase

• Amperage Draw: ~18 A @ 230 V / ~8–9 A @ 460 V

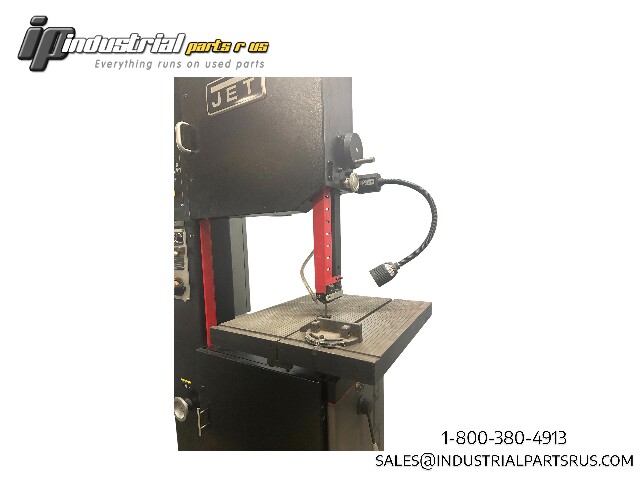

Table & Cutting Angles

• Table Size: ~27-1/2″ × 23-1/2″

• Table Height: ~39-3/8″

• Table Tilt:

  • 10° left and 45° right for angled/contour cuts

Frame & Build

• Heavy-duty, fully enclosed steel frame for rigidity and stability

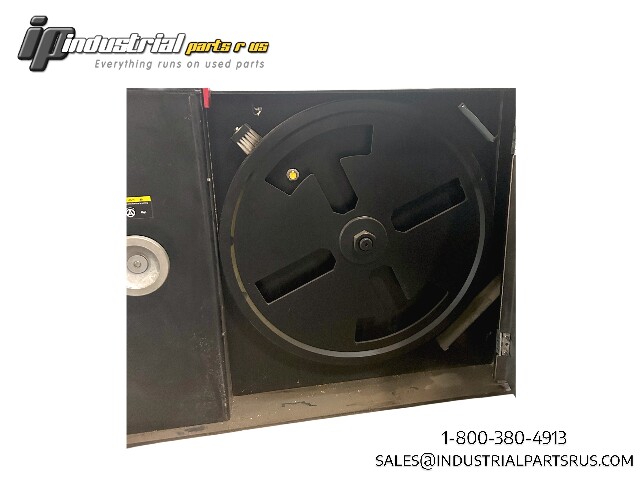

• Precision balanced cast-iron blade wheels with bonded rubber track

Additional Features

• Variable speed drivetrain for fine-tuning cutting speed

• Built-in chip blower keeps the cutting area clear

• Adjustable blade guard for operator safety

• Handwheel with blade tension gauge to avoid over-tensioning

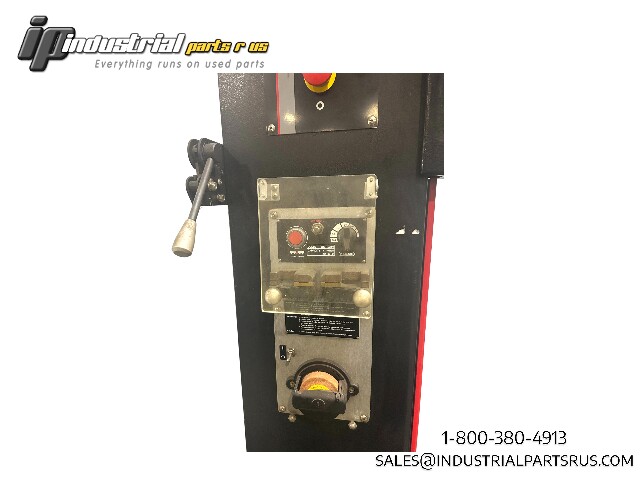

• 4.2 KVA bi-metal blade welder with safety glass cover (for blade joint/welding)

• Often certified to CSA/CUS electrical safety standards

• Standard equipment may include a bi-metal blade, protractor/miter gauge, work lamp, rip fence, and chip pan

• 30 DAY WARRANTY INCLUDED
