Festo DGP-32-500-PPV-A-B Linear Drive, 8 Bar

SKU: IP15626 | Categories: ,
$550.00
WARRANTY
30-Day Guarantee
RETURNS
Easy Returns
FAST SHIP
Same Day Cutoff 2PM
Condition
Used / Inspected
All items are verified to be in proper working condition before shipping. Includes 30-day warranty.
In Stock — 2 units available

2 in stock

All Products

Product Details

SKUIP15626
ConditionUsed / Inspected
Warranty30 Days
Categories ,

Shipping Info

Ships FromBardstown, KY
GroundUPS / FedEx
ExpressNext Day Air Available
FreightAvailable on Request
Cutoff2:00 PM EST Mon–Fri

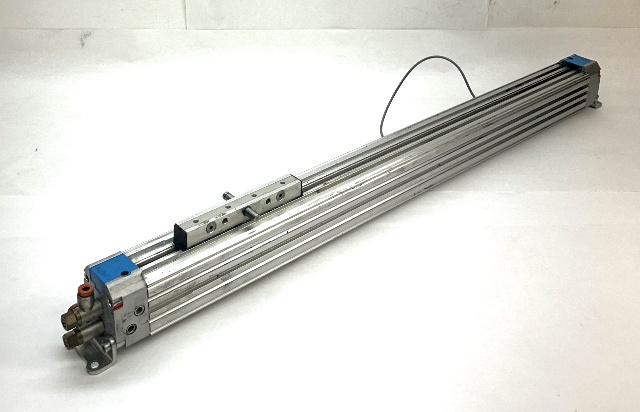

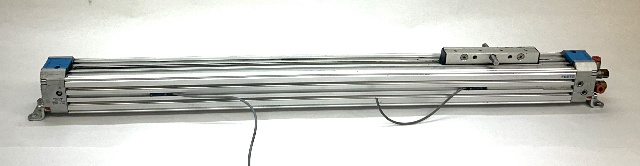

Festo DGP-32-500-PPV-A-B Linear Drive, 8 Bar
Stroke 500 mm
Piston diameter 32 mm
Cushioning:  PPV: Pneumatic cushioning adjustable at both ends
YXR: Shock absorber, hard characteristic curve
Assembly position Any
Guide Basic guide
Driver principle positive-locking (slot)
Position detection For proximity sensor
Operating pressure 2 ... 8 bar
Mode of operation double-acting
Operating medium
Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium : Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2
Ambient temperature -10 ... 60 °C
Cushioning length 20 mm
Transverse moment Mx (graph) 2 Nm
Theoretical force at 6 bar, return stroke 483 N
Theoretical force at 6 bar, advance stroke 483 N
Moving mass 320 g
Moving mass with 0 mm stroke 320 g
Basic weight for 0 mm stroke 1,550 g
Additional mass factor per 10 mm of stroke 41
Pneumatic connection G1/8
Materials information for cover
Aluminium casting coated
Materials information for seals NBR TPE-U(PU)
Materials information, housing Aluminium Anodised
BrandFesto
ManufacturerFesto

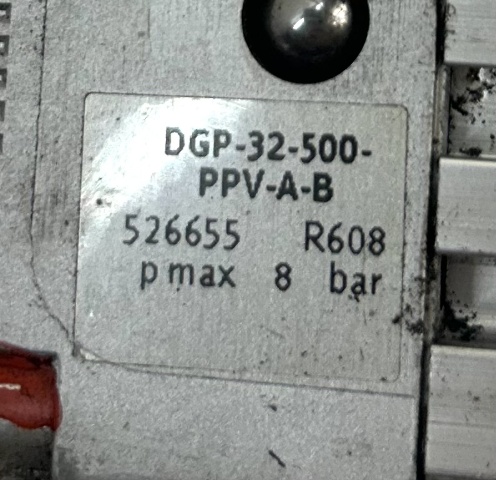

ModelDGP-32-500-PPV-A-B
MPNDGP-32-500-PPV-A-B
Part NumberDGP-32-500-PPV-A-B
ConditionUsed
Weight10.00
Shelf LocationB-8
Unit TypeLinear Drive
Stroke500mm
