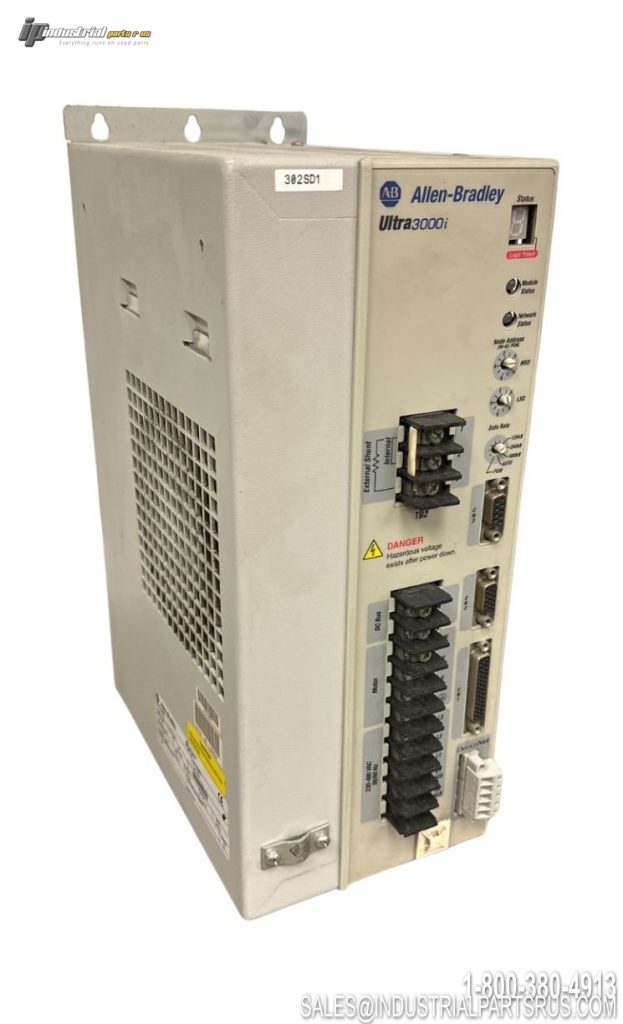

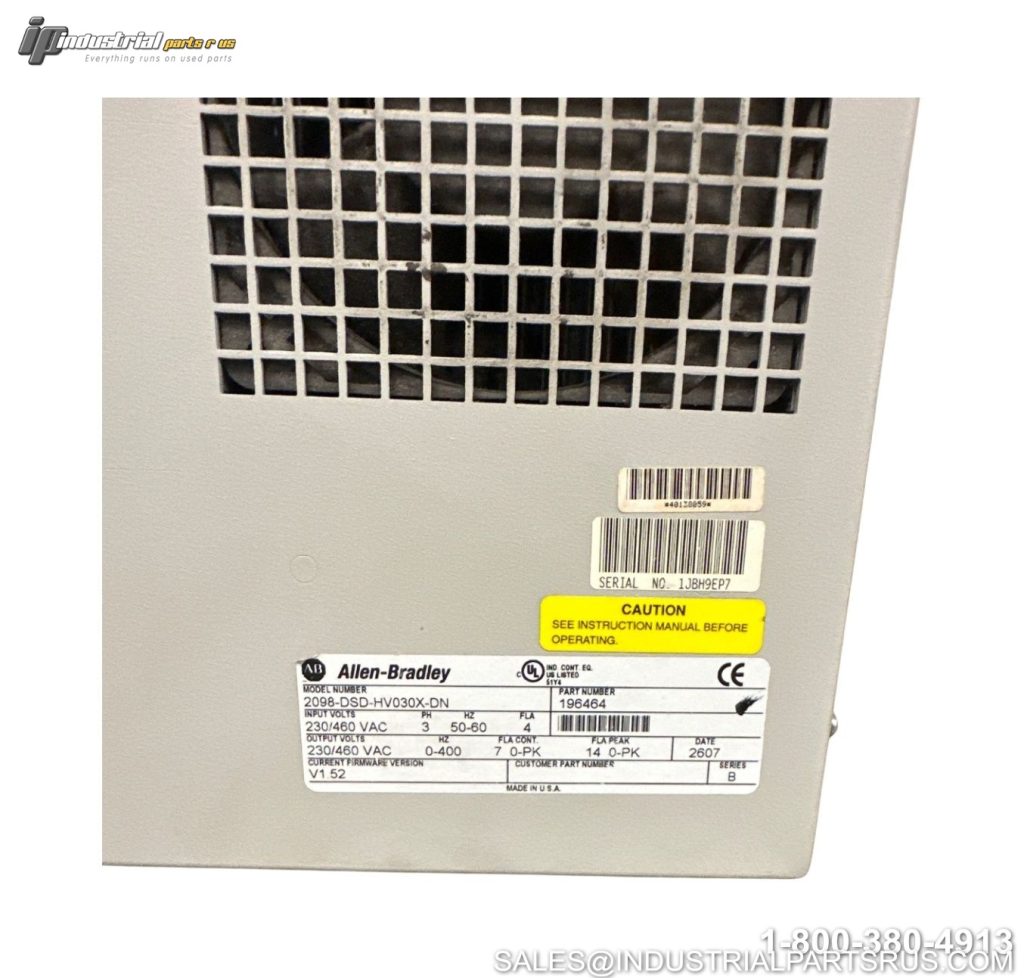

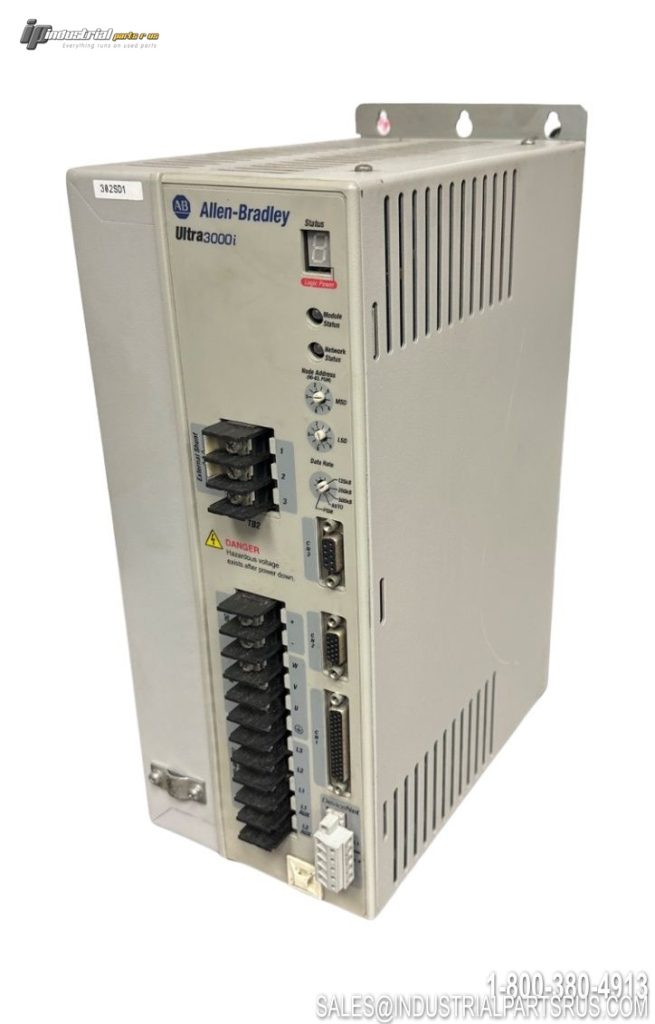

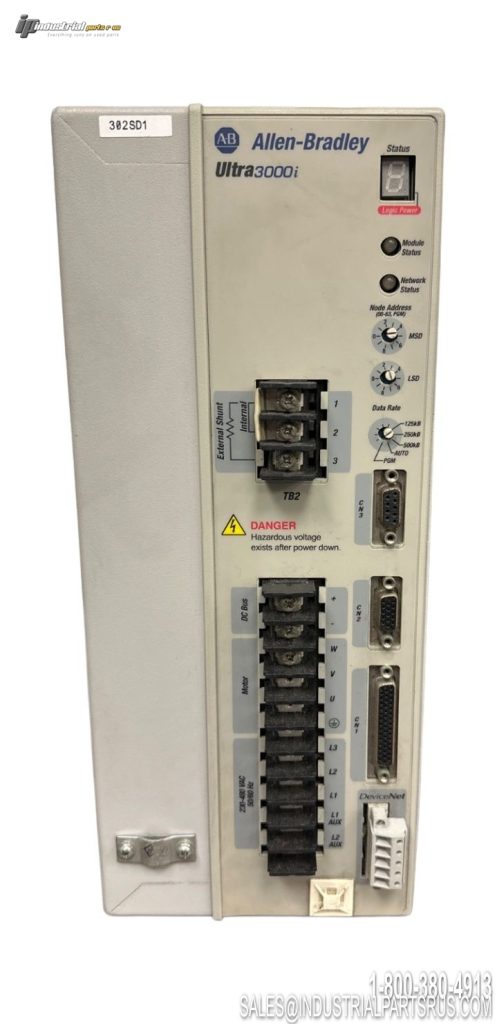

The Allen-Bradley 2098-DSD-HV030X-DN is an Ultra 3000i digital high-voltage servo drive designed for industrial motion control applications. This three-phase drive features a DeviceNet interface and supports both standalone indexing and multi-axis integrated motion control systems. The drive provides precise servo control with comprehensive protection features and robust construction for demanding industrial environments.
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 2098-DSD-HV030X-DN |
| Platform | Ultra 3000i |
| Input Voltage | 230-480V AC RMS |
| Phase | 3 Phase |
| Input Frequency | 47-63 Hz |
| Input Current | 4A nominal at 460V, 6A max inrush |
| Continuous Output Current | 11A at 0-pk |
| Intermittent Output Current | 22A at 0-pk |
| Power Rating | 3kW at 480V, 1.5kW at 230V |
| Communication Standard | DeviceNet |
| Bus Voltage | 810V DC overvoltage |
| Bus Capacitance | 470 µF |
| Shunt On Voltage | 800V DC |
| Shunt Off Voltage | 750V DC |
| Internal Shunt Resistance | 120 Ω |
| Operating Temperature | 0-55°C |
| Dimensions | 9.54 x 14.2 x 5.46 inches |
| Weight | 8.55 kg (18.8 lbs) |
| Type | Digital, Multi-Axis, Indexing |
We warranty all items for 30 days from date of purchase.
| Brand | Allen-Bradley |
| Manufacturer | Allen-Bradley |
| Model | 2098-DSD-HV030X-DN |
| MPN | 2098-DSD-HV030X-DN |
| Part Number | 2098-DSD-HV030X-DN |
| Condition | For Parts or Not Working |
| Weight | 17.00 |
| Current Type | AC |
| Number of Phases | 3 |
| Shelf Location | F-10 |
| Unit Type | Servo Drive |
