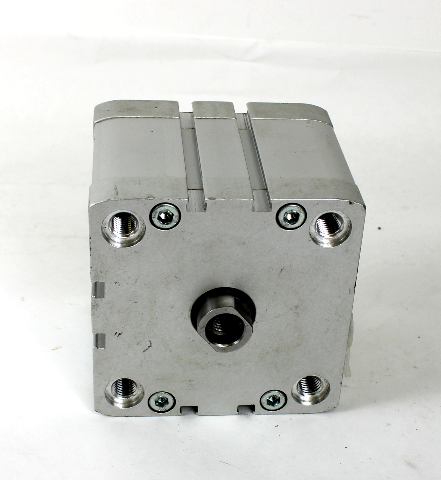

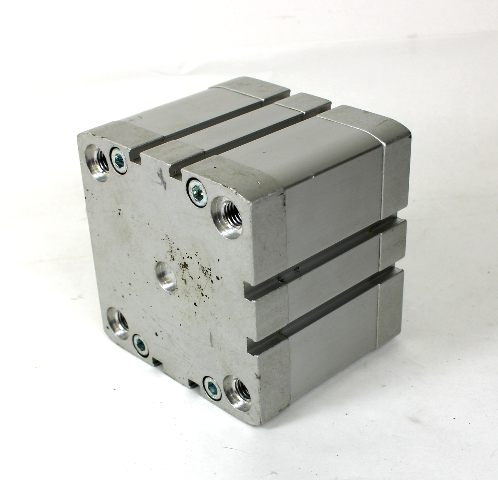

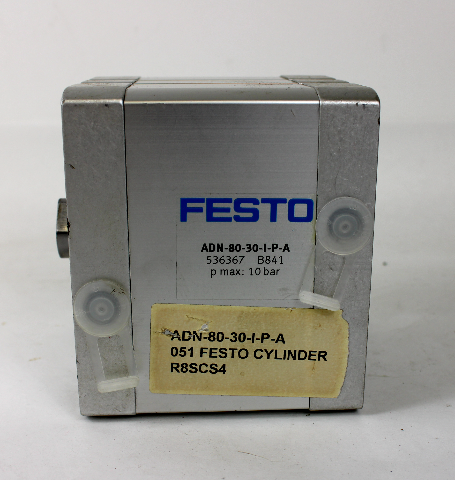

Festo ADN-80-30-I-P-A Compact Cylinder, 30mm Stroke, 80mm Diameter, 10 Bar Max

SKU: IP13539 | Categories: Cylinders, Pneumatics

$150.00

WARRANTY

30-Day Guarantee

RETURNS

Easy Returns

FAST SHIP

Same Day Cutoff 2PM

Condition

Used / Inspected

All items are verified to be in proper working condition before shipping. Includes 30-day warranty.

In Stock — 1 unit available

1 in stock

All Products

Product Details

SKU	IP13539
Condition	Used / Inspected
Warranty	30 Days
Categories	Cylinders, Pneumatics

Shipping Info

Ships From	Bardstown, KY
Ground	UPS / FedEx
Express	Next Day Air Available
Freight	Available on Request
Cutoff	2:00 PM EST Mon–Fri

Festo ADN-80-30-I-P-A Compact Cylinder, 30mm Stroke, 80mm Diameter, 10 Bar Max
- Stroke : 30 mm
- Piston diameter : 80 mm
- Piston rod thread : M12
- Cushioning : Elastic cushioning rings/plates at both ends
- Mounting position : optional
- Conforms to standard : ISO 21287
- Piston-rod end : Female thread
- Position detection : Via proximity switch
- Symbol : 00991217
- Variants : Piston rod at one end
- Operating pressure : 0.06 MPa ... 1 MPa
- Operating pressure : 0.6 bar ... 10 bar
- Mode of operation : Double-acting
- Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC : 2 - Moderate corrosion stress
- LABS (PWIS) conformity : VDMA24364-B1/B2-L
- Ambient temperature : -20 °C ... 80 °C
- Impact energy in end positions : 1.8 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke : 2827 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke : 3016 N
- Moving mass for 0 mm stroke : 400 g
- Additional moving mass per 10 mm stroke : 25 g
- Basic weight for 0 mm stroke : 1121 g
- Additional weight per 10 mm stroke : 79 g
- Type of mounting : Either: With through-hole Via female thread With accessories
- Pneumatic connection : G1/8
- Note on materials : RoHS-compliant
- Material collar screws : Steel
- Material cover : Die-cast aluminium, coated
- Material seals TPE-U(PUR)
- Material piston rod : High-alloy steel
- Material cylinder barrel : Smooth-anodised wrought aluminium alloy

Brand	Festo
Manufacturer	Festo
Model	ADN-80-30-I-P-A
MPN	ADN-80-30-I-P-A
Part Number	ADN-80-30-I-P-A
Condition	Used
Weight	3.31
Shelf Location	B-6
Unit Type	Compact Cylinder
Stroke	30mm
