| SKU | AI0397 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Pneumatics, Valves & Manifolds |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

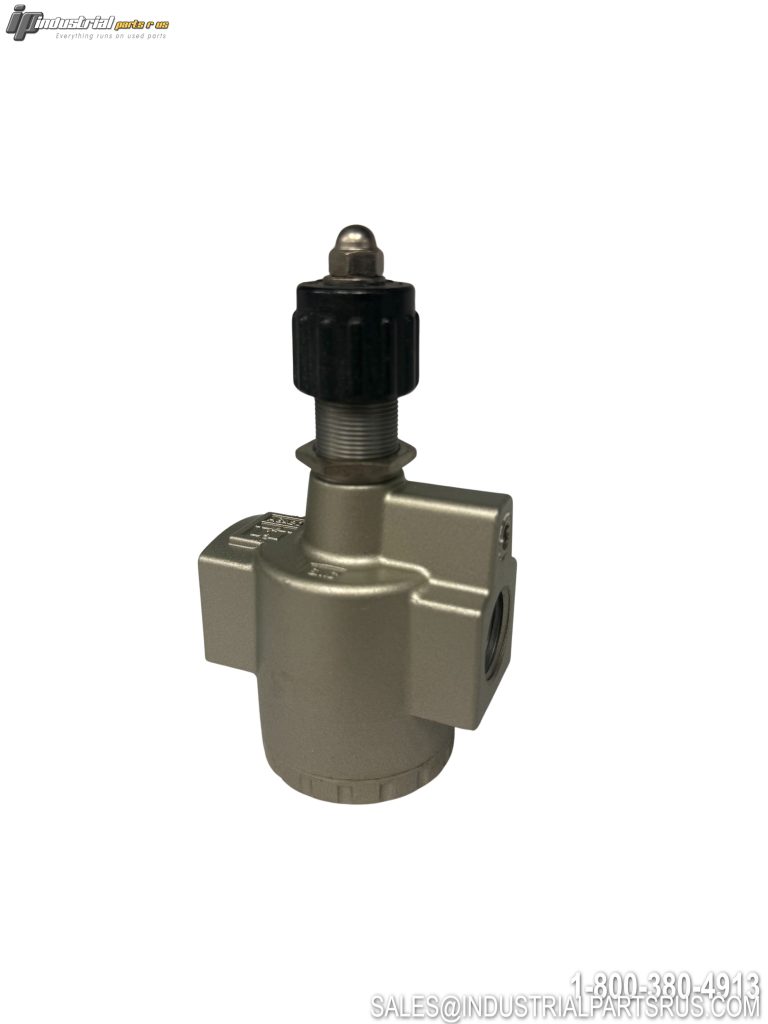

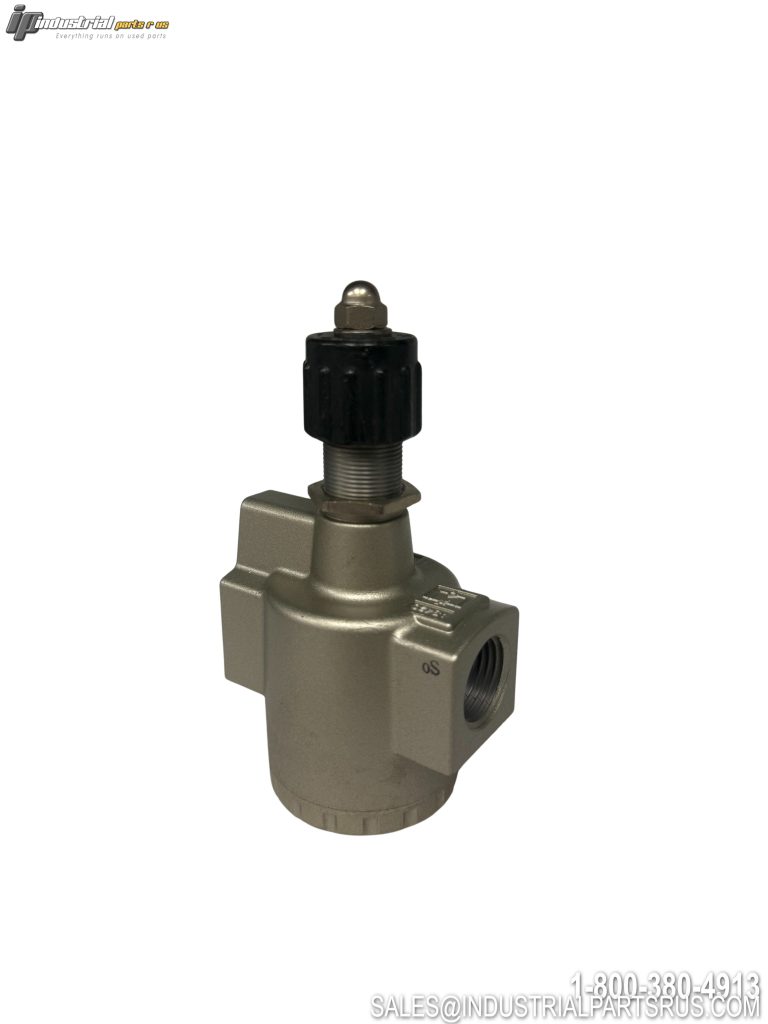

The SMC AS420-N04 is a precision pneumatic speed controller designed for large flow applications with in-line configuration. This manual 2-way flow control valve features brass construction with 1/2 NPT female threaded connections and provides precise speed control for pneumatic systems. The compact design includes needle valve operation with locking mechanism for reliable flow regulation.
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | AS420-N04 |
| Product Type | Speed Controller Flow Control Valve |
| Series | AS Series |
| Construction Style | Large Flow In-Line |
| Body Size | 1/2 Standard |
| Port Size | 1/2 |
| Thread Standard | NPT |
| Input Port Type | 1/2 Female NPT Threaded |
| Output Port Type | 1/2 Female NPT Threaded |
| Body Material | Brass |
| Seal Material | Nitrile (NBR) |
| Valve Function | Needle |
| Metering | Meter Out |
| Operating Pressure Range | 0.1 to 1.0 MPa |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.1 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -5 to +60°C |
| Operating Medium | Air/Fluid |
| Flow Coefficient (Cv) | 26 mm² |
| Overall Width | 28.5 mm |
| Overall Height | 55.6 mm |
| Standards Met | JIS |
| Port Connection Type | Threaded |
We warranty all items for 30 days from date of purchase.
| Brand | SMC |
| Manufacturer | SMC |
| Model | AS420-N04 |
| MPN | AS420-N04 |
| Part Number | AS420-N04 |
| Condition | New Other |
| Weight | 2.00 |
| Shelf Location | J-38 |
| Country of Origin | Japan |
| Unit Type | Pneumatic Valve |
