Get notified when similar items arrive
4 in stock
| SKU | AI0432 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Pneumatics, Valves & Manifolds |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

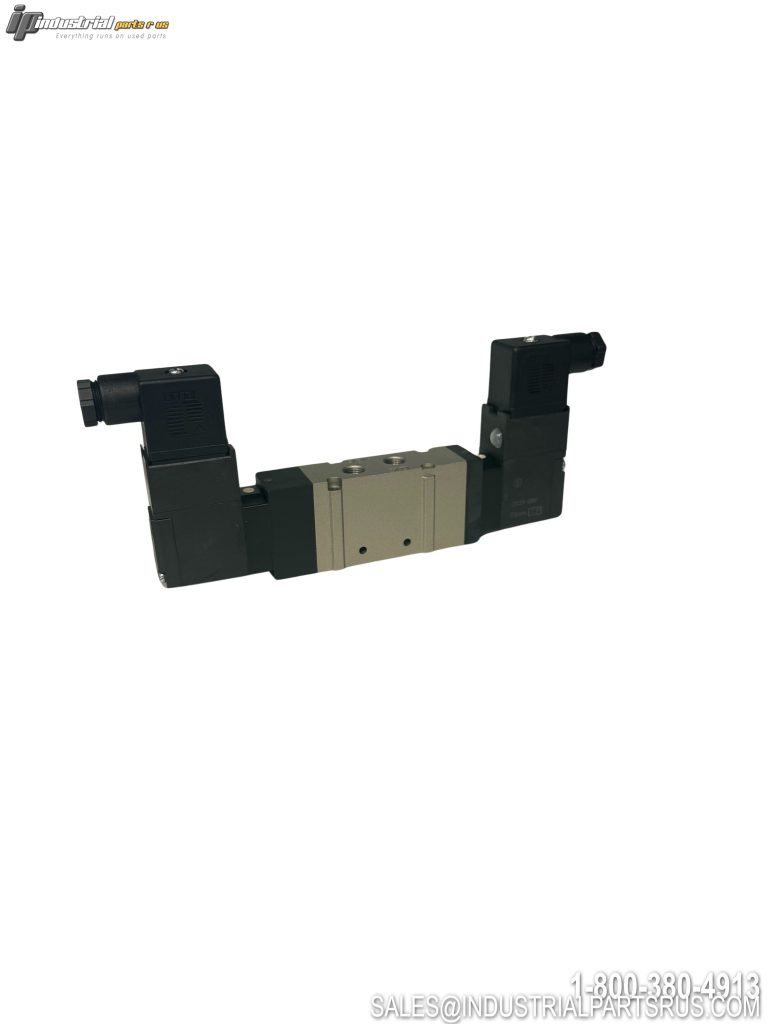

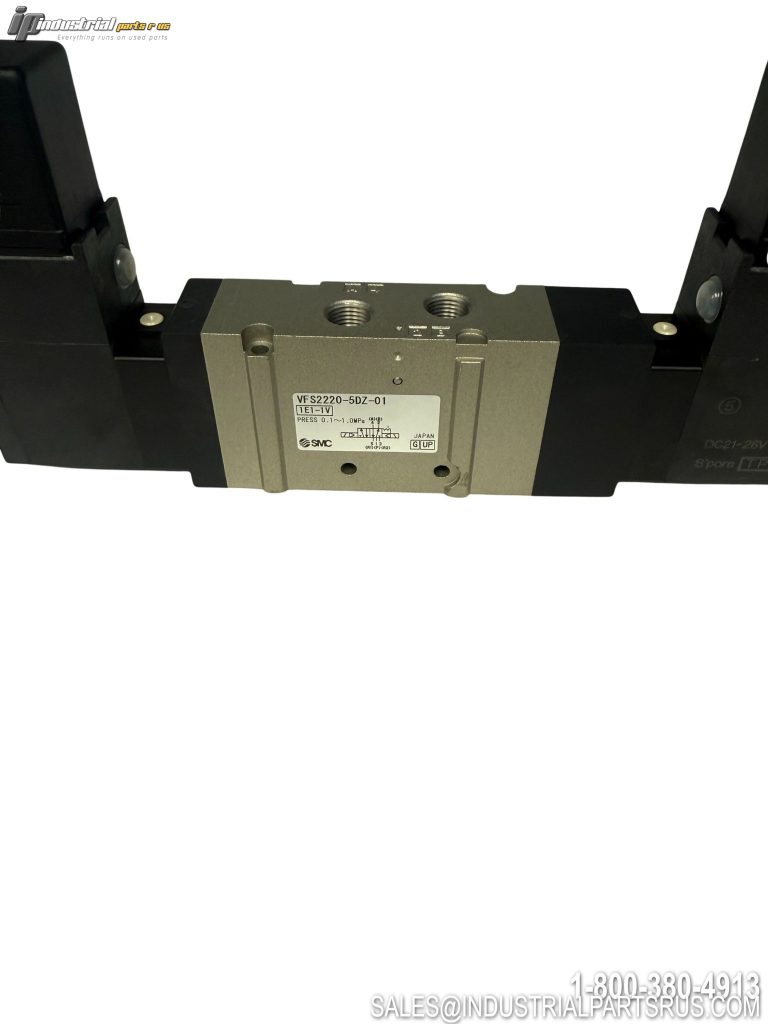

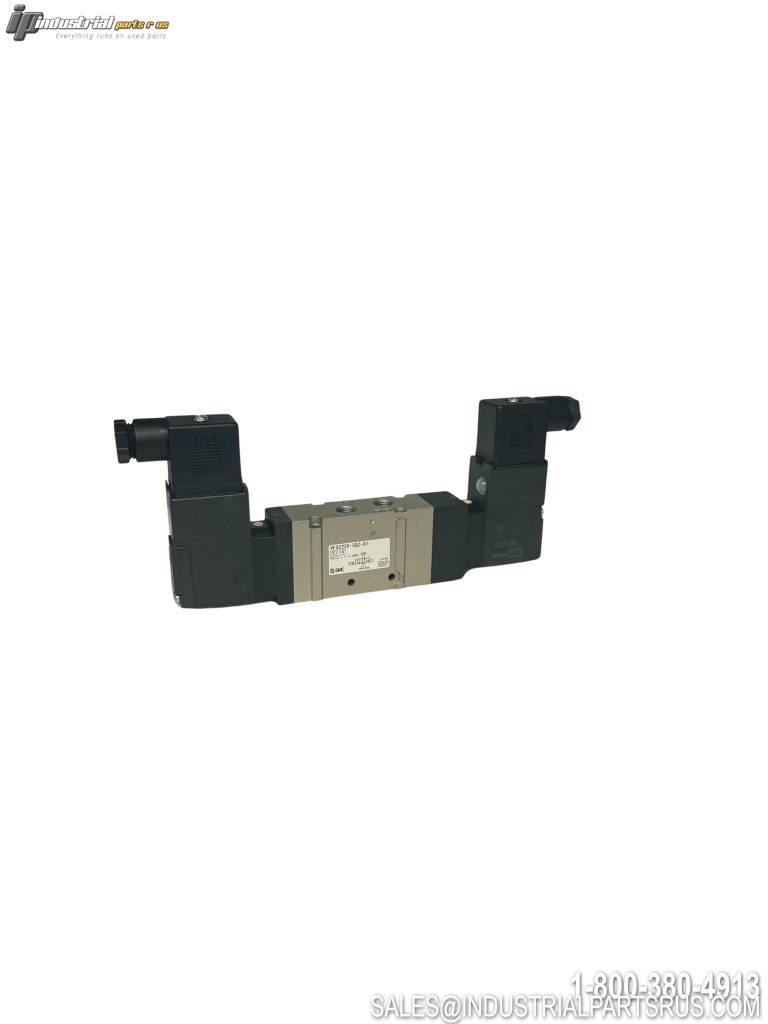

The SMC VFS2220-5DZ-01 is a 5-port pilot operated solenoid valve from the VFS2000 series, designed for pneumatic automation applications. This valve features metal seal construction and is part of SMC's comprehensive line of pilot solenoid valves with metal seals and body ported type manifolds. The VFS2000 series provides compact design with high flow capacity of 1/4: C: 3.4 dm3/(s·bar) and low power consumption of 1.8 W DC.
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | VFS2220-5DZ-01 |
| Series | VFS2000 |
| Port Configuration | 5 Port |
| Operation Type | Pilot Operated |
| Actuation | 2 Position Double |
| Coil Voltage | 24VDC |
| Port Size | 1/4" |
| Thread Type | Rc (PT) |
| Electrical Entry | DIN Terminal |
| Pilot Type | Internal Pilot |
| Manual Override | Non-locking Push Type (Flush) |
| Body Type | Body Ported Individual Exhaust |
| Seal Type | Metal Seal |
| Maximum Operating Pressure | 9.9 kgf/cm² (0.97 MPa) |
| Operating Temperature | -10 to 60°C |
| Power Consumption | 1.8W DC |
| Flow Capacity | C: 3.4 dm³/(s·bar) |
| Light/Surge Suppressor | With Light/Surge Voltage Suppressor |
We warranty all items for 30 days from date of purchase.
| Brand | SMC |
| Manufacturer | SMC |
| Model | VFS2220-5DZ-01 |
| MPN | VFS2220-5DZ-01 |
| Part Number | VFS2220-5DZ-01 |
| Condition | Used |
| Weight | 3.00 |
| Shelf Location | A-18 |
| Country of Origin | Japan |
| Unit Type | Solenoid Valve |
We warranty all items for 30 days from date of purchase. If the item is defective, we will provide a refund or replacement at our discretion.
Items may be returned within 30 days of receipt. Please contact us before shipping any return. Items must be in original condition. Shipping costs are non-refundable.
Orders placed before 2:00 PM EST Monday–Friday typically ship the same day via UPS or FedEx. We also offer Next Day Air and freight options for larger items.
Yes! We actively buy used industrial equipment including robots, motors, drives, PLCs, and more. Contact us at 800-380-4913 or email us for a quote.
