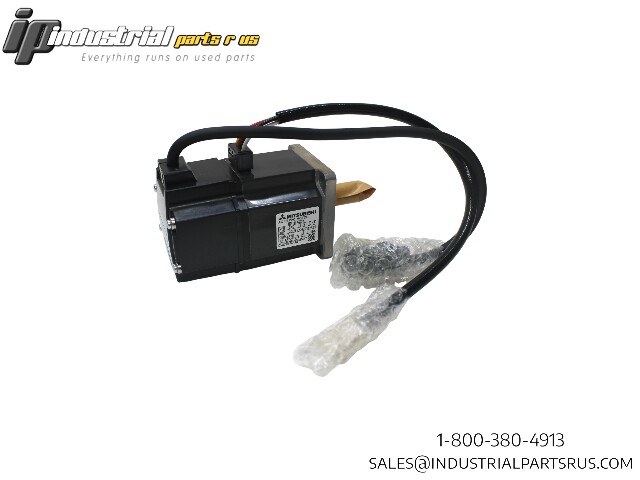

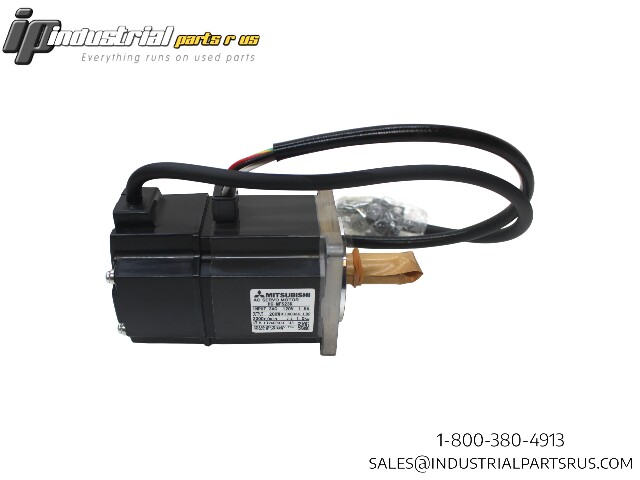

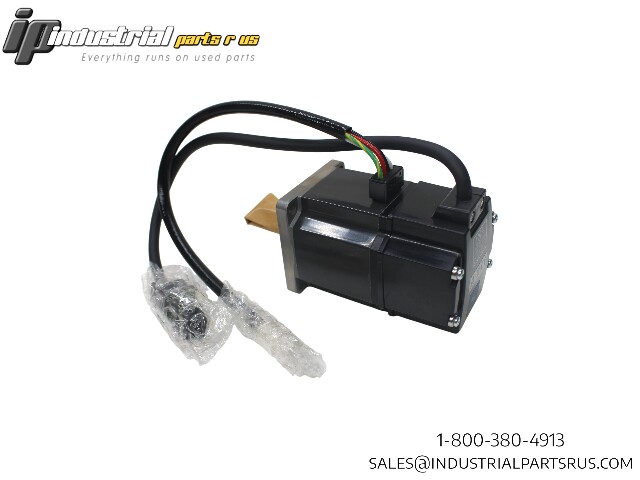

Mitsubishi HC-MFS23K Ultra Low Inertia AC Servo Motor 200W 3000RPM

The Mitsubishi HC-MFS23K is an ultra low inertia AC servo motor designed for high-frequency precision applications. It features 200W rated output power, 3000 RPM rated speed, and operates on 3-phase 120V AC power with 1.5A current. The motor includes a straight shaft design with IP55 protection (excluding shaft and connector), making it ideal for insertion devices and assembly machines requiring precise positioning control. Rated Output Power: 0.2kW (200W) Rated Speed: 3000 RPM Power Supply: 3-phase 120V AC, 1.5A Motor Type: Ultra low inertia AC servo motor Shaft Type: Straight shaft with keyway Protection Rating: IP55 (excluding shaft and connector) Brake: No brake included Encoder: 17-bit absolute encoder feedback Operating Temperature: 0°C to +40°C Applications: Insertion devices, assembly machines
