Get notified when similar items arrive
2 in stock
| SKU | IP489501144 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Barcode Scanners, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |
|
Model |
BL-701 |
|||
|
Type |
High-resolution type |
|||
|
Type |
Scanning method |
Raster |
||
|
Laser |
Light source |
Visible semiconductor laser (wavelength: 655 nm) |
||
|
Control output |
100 μW |
|||
|
Pulse duration |
99.5 μs (IEC 60825-1, JIS C6802), 50 μs (FDA [CDRH] Part 1040.10) |
|||
|

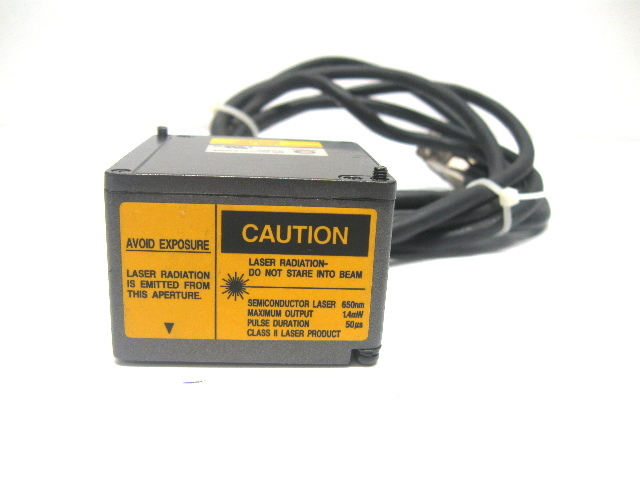

Laser class |
Class 2 (JIS C6802), Class 2 (IEC 60825-1), Class II (FDA [CDRH] Part 1040.10) |
|||
|
Reading |
Supported codes |
CODE39; ITF; Industrial 2 of 5; NW-7 (Codabar); JAN, EAN, UPC; CODE128; COOP 2 of 5; CODE93 |
||
|
Number of readable digits |
32 digits (64 digits for CODE128 with start character C)*1 |
|||
|
Readable bar width |
0.15 mm to 1.0 mm 0.006" to 0.04" |
|||
|
Reading distance |
160 to 370 mm 6.30” to 14.57" (narrow bar width: 0.5 mm 0.02") |
|||
|
Focal point |
230 mm 9.06" |
|||
|
Largest readable label width |
310 mm 12.20" (335 mm 13.19")*2 |
|||
|
PCS |
0.6 or more (reflectance of the white part: 75% or more) |
|||
|
Scanning rate |
700 scans/sec. |
|||
|
I/O specifications |
Input terminals |
Number of inputs |
1 |
|
|
Input format |
Non-voltage or voltage input*3. |
|||
|
Output terminals |
Number of outputs |
2 (OK and NG) |
||
|
Output |
NPN open collector |
|||
|
Rated load |
24 VDC, 30 mA |
|||
|
Leakage current (at OFF) |
0.1 mA or less |
|||
|
Residual voltage (at ON) |
0.5V or less |
|||
|
Serial interface |
Communication method |
Conforms to EIA RS-232C |
||
|
Communication speed |
600Û1200Û2400Û4800Û9600Û19200Û31250Û38400bps |
|||
|
Synchronization between the transmitter and receiver |
Asynchronous |
|||
|
Data bit length |
7 or 8 bits |
|||
|
Stop bit length |
1 bit/2 bits |
|||
|
Parity check |
None, odd, even |
|||
|
Rating |
Power voltage |
5 VDC ± 5% |
||
|
Voltage consumption |
510 mA or less |
|||
|
Environmental resistance |
Enclosure rating |
IP65 |
||
|
Operating ambientluminance |
Sunlight: 10,000 lux, incandescent lamp: 6,000 lux |
|||
|
Operating temperature range |
0 to +40ãÄ 32°F to 104°F |
|||
|
Operating ambient humidity |
35 to 85% RH (No condensation) |
|||
|
Operating environment |
No dust or corrosive gas present |
|||
|
Vibration |
10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions |
|||
|
Weight |
Approx. 300 g (including the cable) |
|||

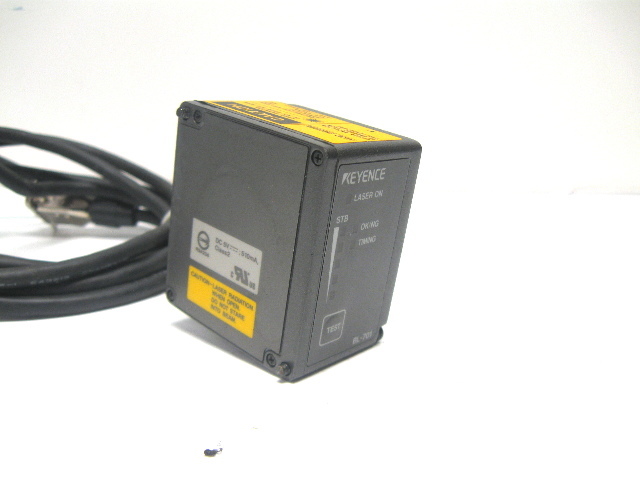

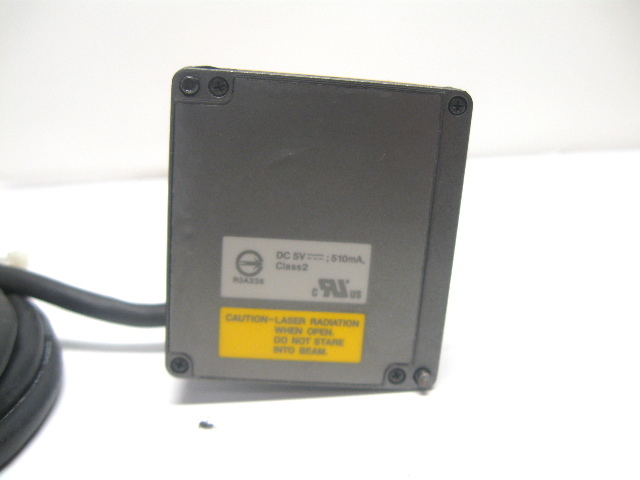

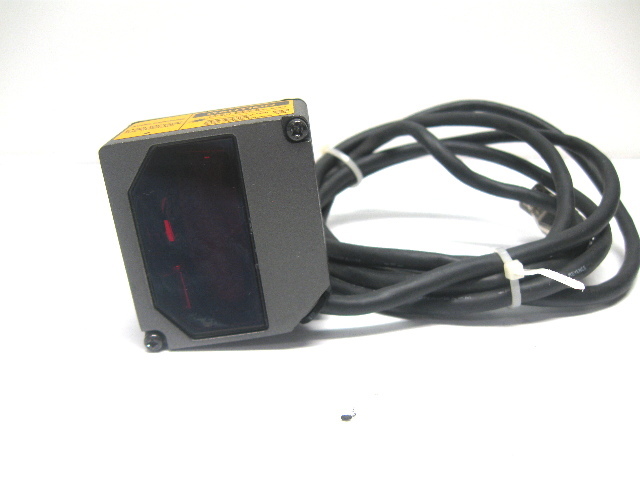

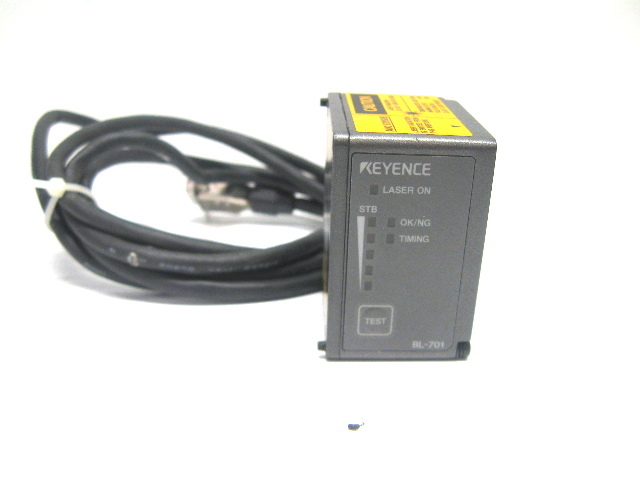

| Brand | Keyence |
| Manufacturer | Keyence |
| Model | BL-701 |
| MPN | BL-701 |
| Condition | Used |
| Weight | 1.00 |
| Voltage | 5 VDC |
| Shelf Location | O-5 |
| Unit Type | Barcode Scanner |
