Get notified when similar items arrive
2 in stock
| SKU | IP04348 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Fiber Optic Sensors, Photoelectric Sensors, Proximity Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |
|

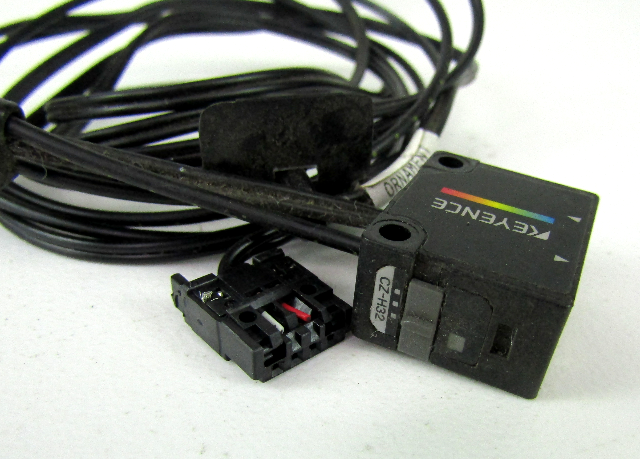

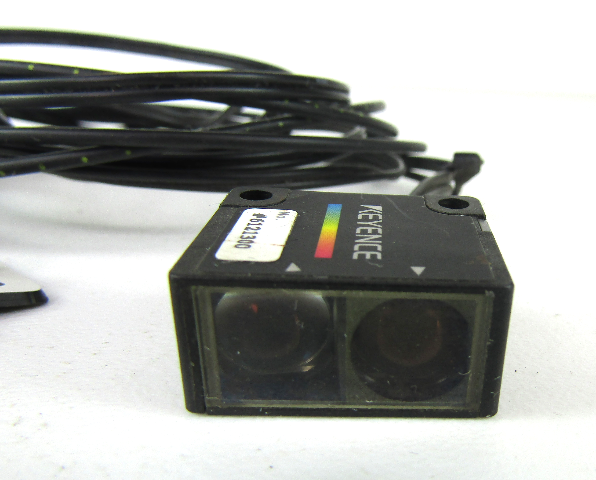

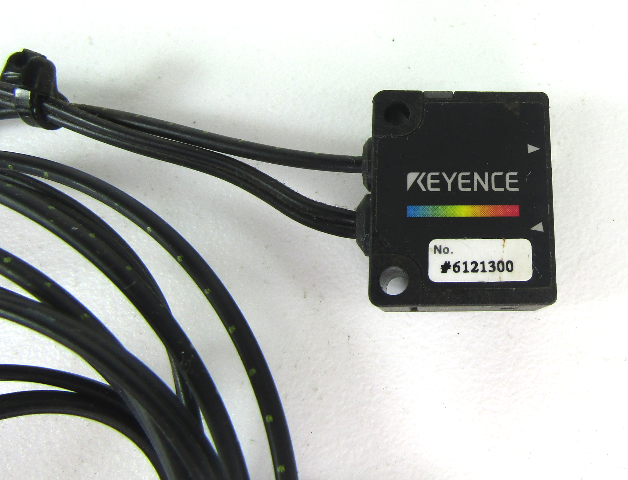

Model |
CZ-H32 |
|||
|
Type |
Adjustable spot |
|||
|
Detecting area |
50 to 95 mm 1.97" to 3.74" |
|||
|
Smallest spot diameter |
Small: 3 mm 0.12"dia. |
|||
|
Light source |
Red LED (665 nm)/Green LED (520 nm)/Blue LED (465 nm) |
|||
|
Minimum bend radius of fi ber |
25 mm 0.98" |
|||
|
Environmental resistance |
Enclosure rating |
IP40 |
||
|
Ambient light |
Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. |
|||
|
Ambient temperature |
-10 to +55 °C 14 to 131 °F (No freezing) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis |
|||
|
Material |
Housing：Fiberglass reinforced plastic , Lens cover：Polyarylate |
|||
|
Weight |
Approx. 40 g |
|||
| Brand | Keyence |
| Model | CZ-H32 |
| MPN | CZ-H32 |
| Condition | Used |
| Weight | 1.00 |
| Current Type | DC |
| Sensor Type | Solid State |
| Shelf Location | O-6 |
| Unit Type | Reflective Sensor Head |
