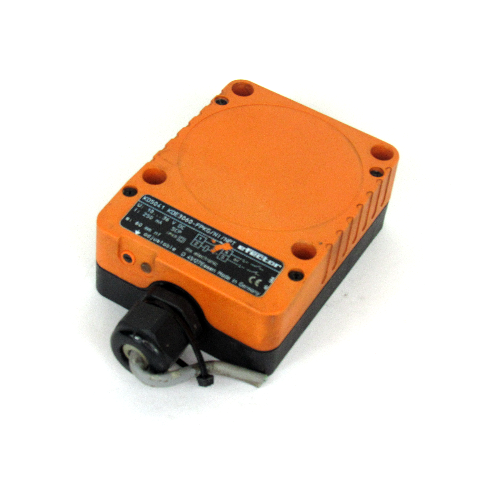

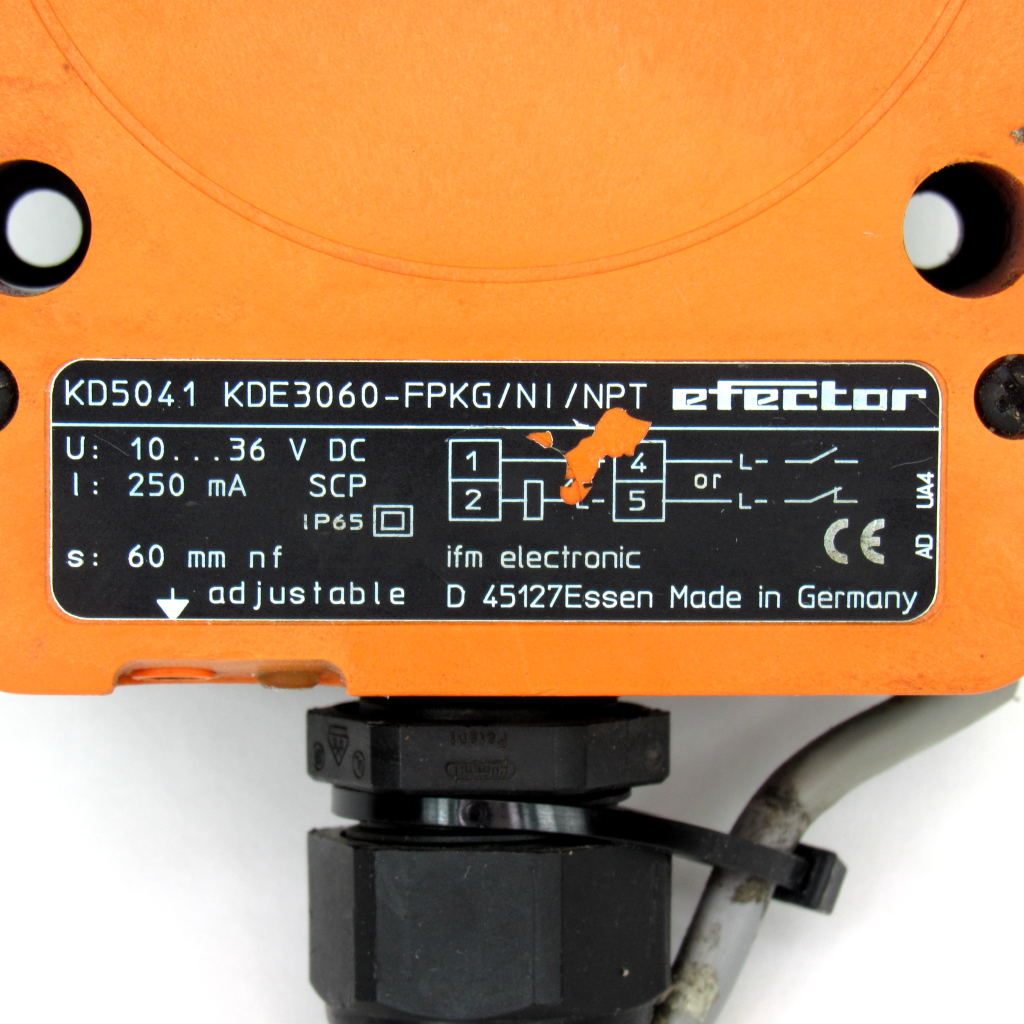

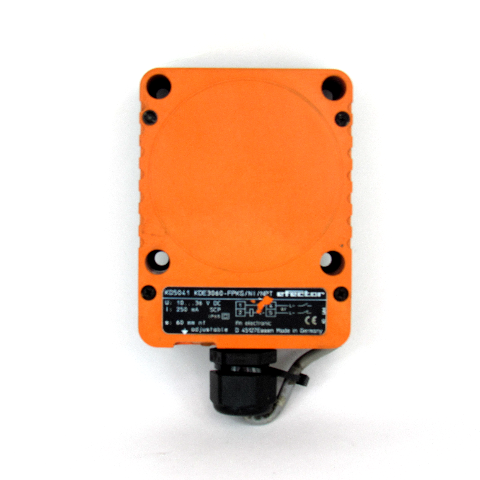

IFM KD5041 Capacitive Sensor, 10-36V DC, 250mA

IFM KD5041 Capacitive Sensor, 10-36V DC, 250mA -60mm -Wide operating temperature range Electrical design PNP Output function normally open / closed; (selectable) Sensing range [mm] 60 Housing rectangular Electrical data Operating voltage [V] 10...36 DC Current consumption [mA] < 15 Protection class II Reverse polarity protection yes Outputs Electrical design PNP Output function normally open / closed; (selectable) Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 250 Switching frequency DC [Hz] 10 Short-circuit proof yes Overload protection yes Monitoring range Sensing range [mm] 60 Real sensing range Sr [mm] 60 ± 10 % Operating distance [mm] 0...48.6 Accuracy / deviations Correction factor glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 Hysteresis [% of Sr] 1...15 Switch-point drift [% of Sr] -15...15 Operating conditions Ambient temperature [°C] -25...80 Protection IP 65 Increased immunity yes; (Increased immunity to conducted radio frequency interference) Tests / approvals EMC IEC 60947-5-2 MTTF [years] 537 Mechanical data Weight [g] 291 Housing rectangular Mounting non-flush mountable Material PPE modified
