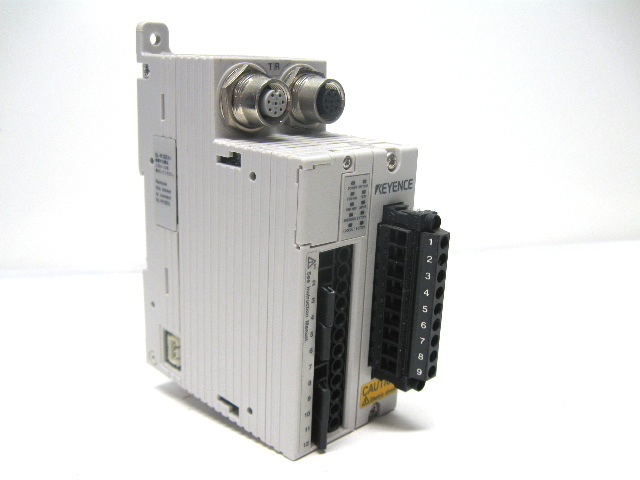

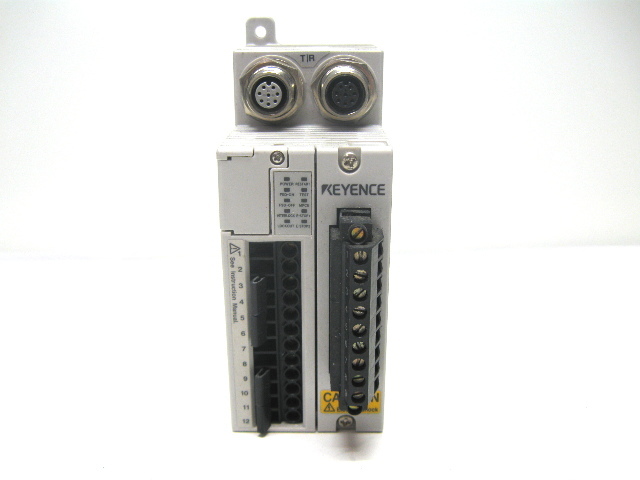

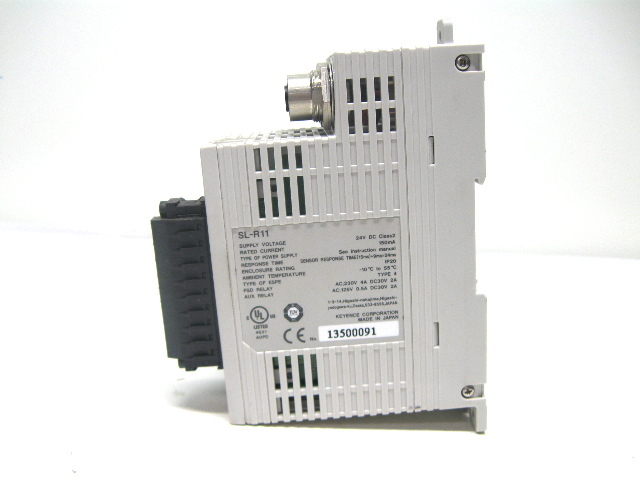

Keyence SL-R11 Light Curtain Safety Relay SL-C Series 24 Vdc

Model

SL-R11

Rating

Power voltage

24 VDC å±10% ripple (P-P) å±10% max.

Current consumption.

150 mA max. (for SL-R11 only)

OSSD output

Output type

‰Û¥

Max. load current

OFF-state voltage

Leakage current

Max. capacitive load

Load wiring resistance

Safety light curtain

SL-C Series

FSD 1,2

230 VAC 4 A 30 VDC 2 A (resistive load)
230 VAC 2 A (cos Ì÷ = 0.3) (inductive load)
30 VDC 1 A (cos Ì÷ = 0.3) (inductive load)

SL-R11 output

Lifespan

Mechanical life: 10 million times min.
Electrical life: 100000 times min.

Response speed when E-STOP is input

20 ms

AUX

125 VAC 0.5 A 30 VDC 2 A (resistive load)
125 VAC 0.25 A (cos Ì÷ = 0.3) (inductive load)
30 VDC 1 A (cos Ì÷ = 0.3) (inductive load)

Response speed FSD1, 2 AUX

24 ms (including sensor response time)^*1

Environmental resistance

Enclosure rating

IP20 (IEC60529) (Install in control panels which is equal to or greater than IP54)

Ambient temperature

-10 to +55å¡C (14 to 131å¡F), No condensation

Ambient temperature for storage

-10 to +60å¡C (14 to 140å¡F), No freezing

Relative humidity

35 to 85%RH (no condensation)

Storage relative humidity

35 to 95%RH (no condensation)

Vibration

10 to 55 Hz double amplitude 0.7 mmåÊ0.03", 20 sweeps each for X, Y, Z directions

Shock resistance

100 m/s²åÊ(Approx 10G) 16 ms pulse, in X, Y, Z directions 1000 times each axis

Material

Polycarbonate

Approved standards

EMC

EMS

UL61496-1^*2

EMI

FCC Part 15 Class A^*2

Safety

UL61496-1 (type 4 ESPE)
UL61496-2 (type 4 AOPD)
UL508^*2

Weight

Approx 380 g
