| SKU | AI0941 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Photoelectric Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

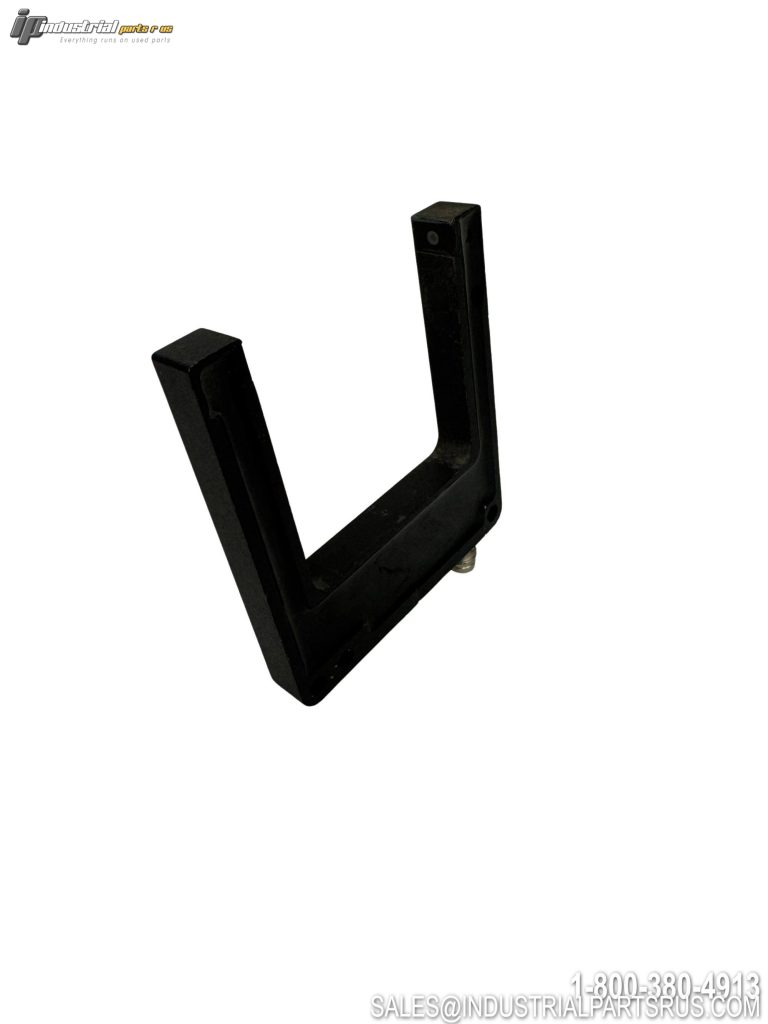

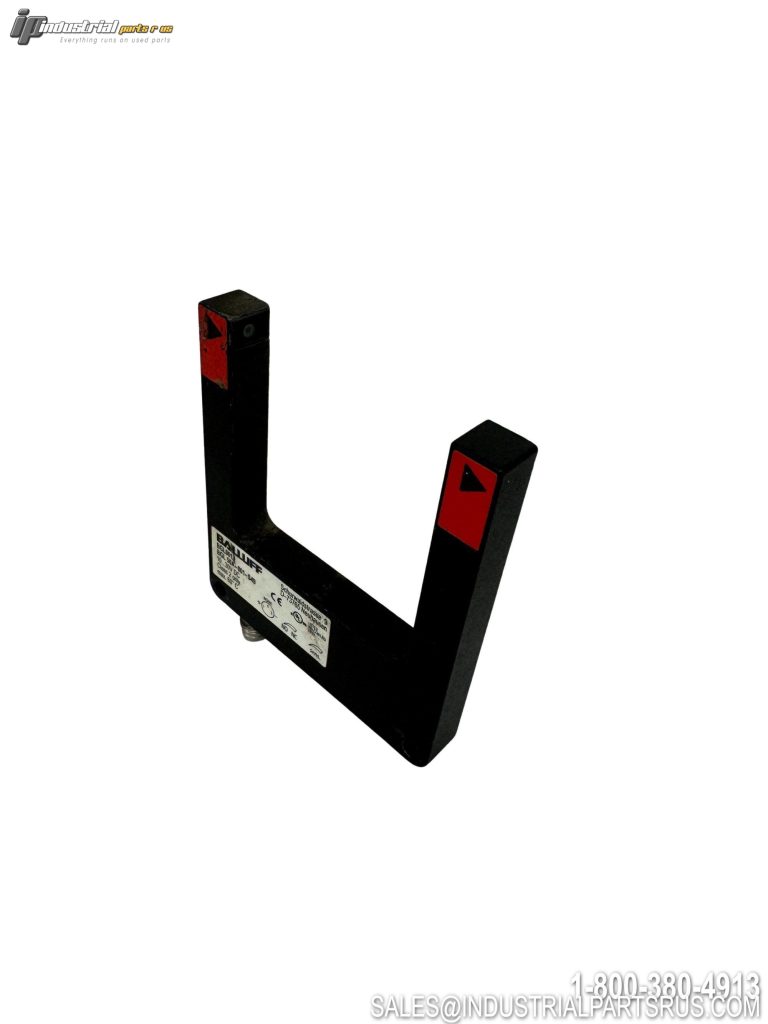

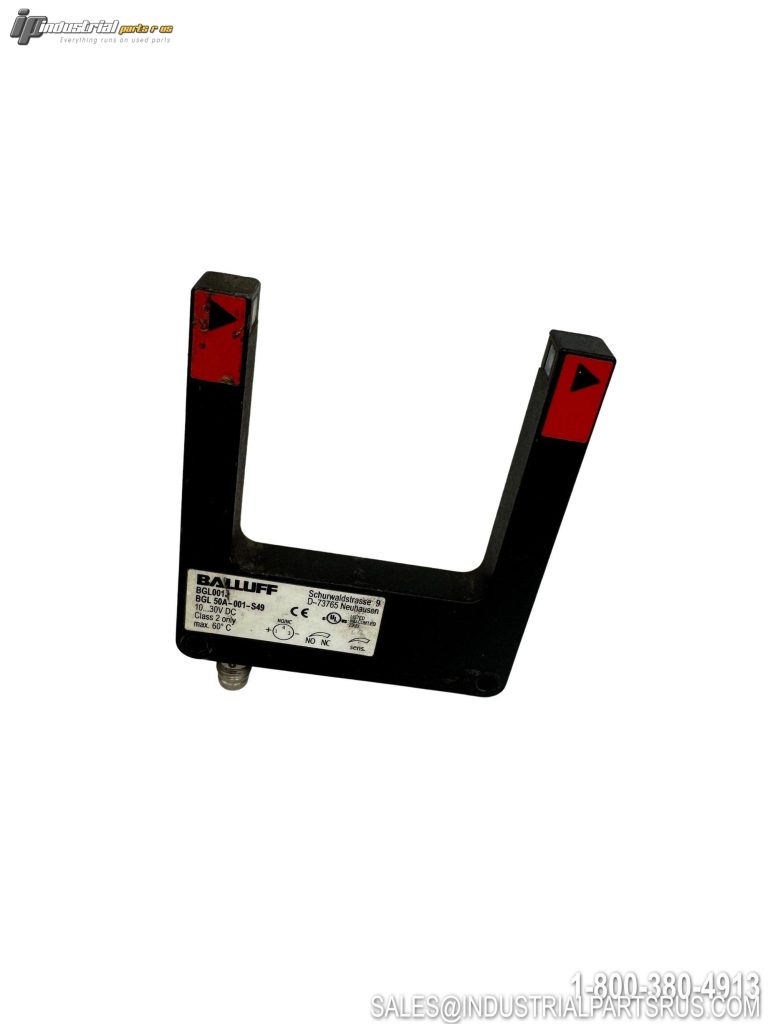

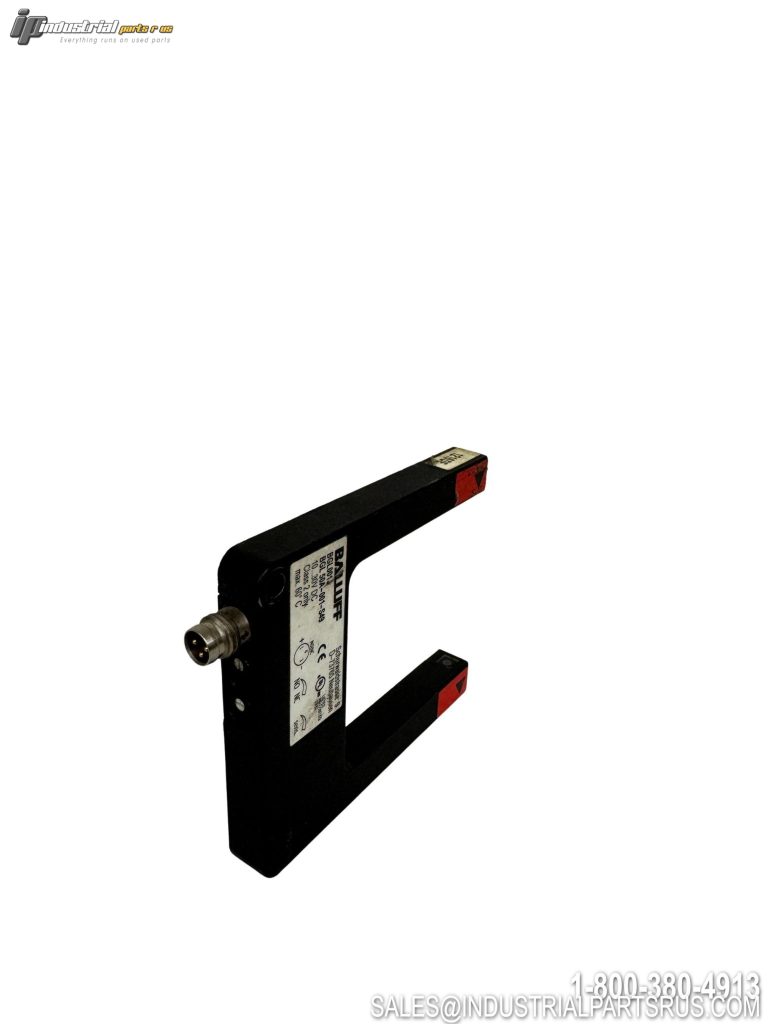

The Balluff BGL 50A-001-S49 is a photoelectric fork sensor designed for precise object detection in industrial automation applications. This through-beam sensor features a 50mm fork opening and PNP output with normally open/normally closed switching capability, making it ideal for detecting small components and providing reliable process control.
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BGL 50A-001-S49 |
| Order Code | BGL001J |
| Series | A |
| Fork Opening | 50mm |
| Sensing Range | 0-50mm |
| Output Type | PNP |
| Contact Configuration | NO/NC Switchable |
| Supply Voltage | 10-30 VDC |
| Output Current | 200mA |
| Supply Current | 35mA |
| Switching Frequency | 1.5kHz |
| Operating Temperature | -10°C to 60°C |
| Connection Type | M8x1 Male 3-Pin Connector |
| Housing Material | Zinc Die Casting, Painted |
| Sensing Surface Material | Glass |
| Dimensions | 10 x 70 x 88 mm |
| IP Rating | IP65 |
| Light Type | LED Red Light |
| Beam Characteristic | Divergent |
| Light Spot Size | Ø 1.5mm Light Exit |
| Approvals | CE, cULus, WEEE |
We warranty all items for 30 days from date of purchase.
| Brand | Balluff |
| Manufacturer | Balluff |
| Model | BGL 50A-001-S49 |
| MPN | BGL 50A-001-S49 |
| Part Number | BGL 50A-001-S49 |
| Condition | Used |
| Weight | 1.00 |
| Current Type | DC |
| Output Type | PNP |
| Sensor Type | Fork Sensor |
| Shelf Location | K-57 |
| Country of Origin | Germany |
| Unit Type | Photoelectric Sensor |
