1 in stock
| SKU | AI0942 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Photoelectric Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

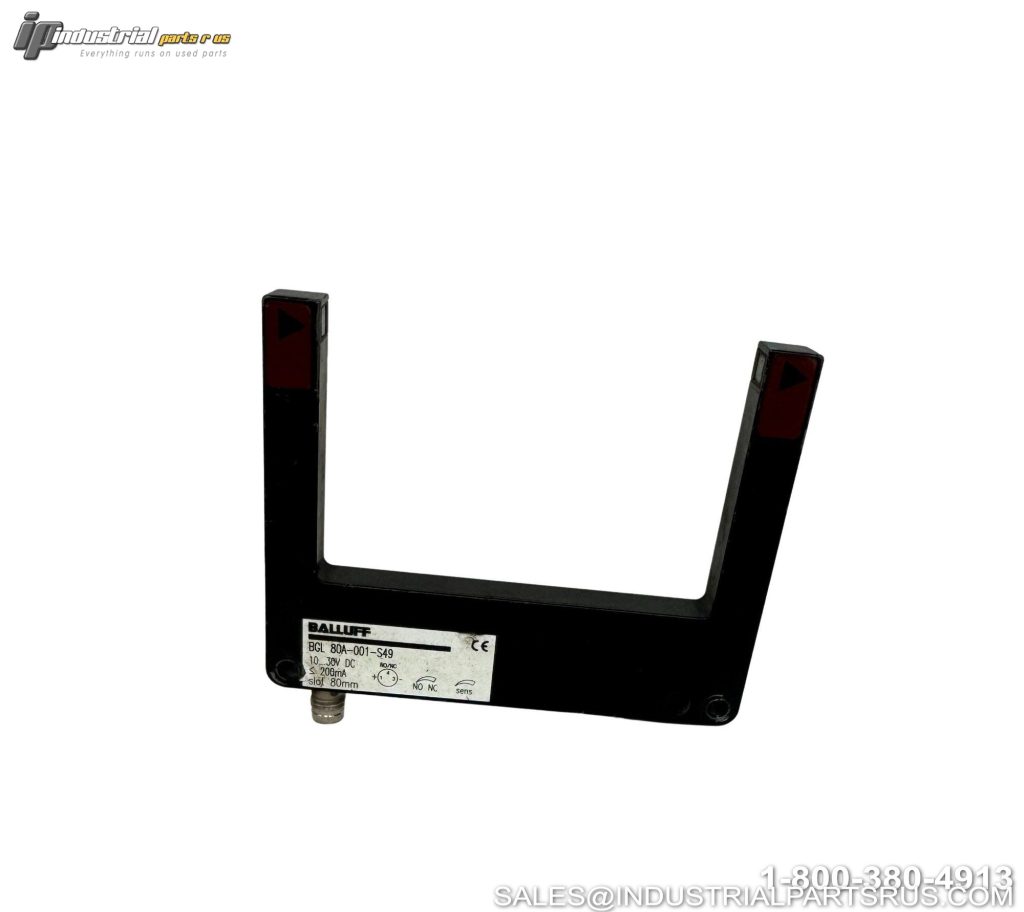

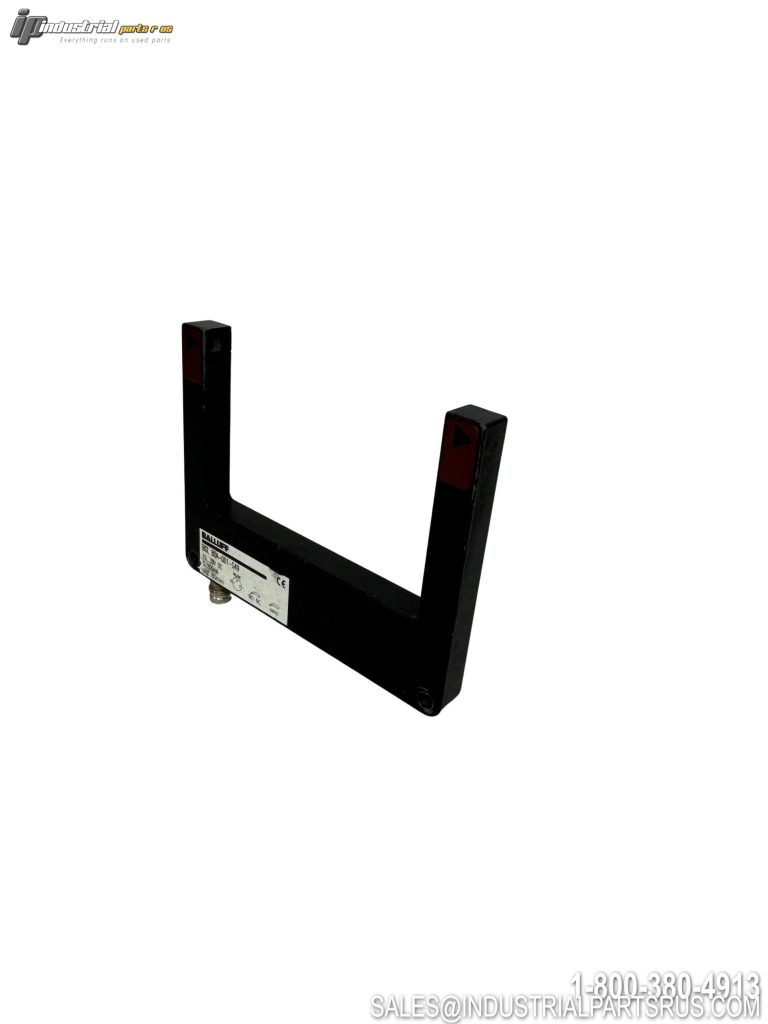

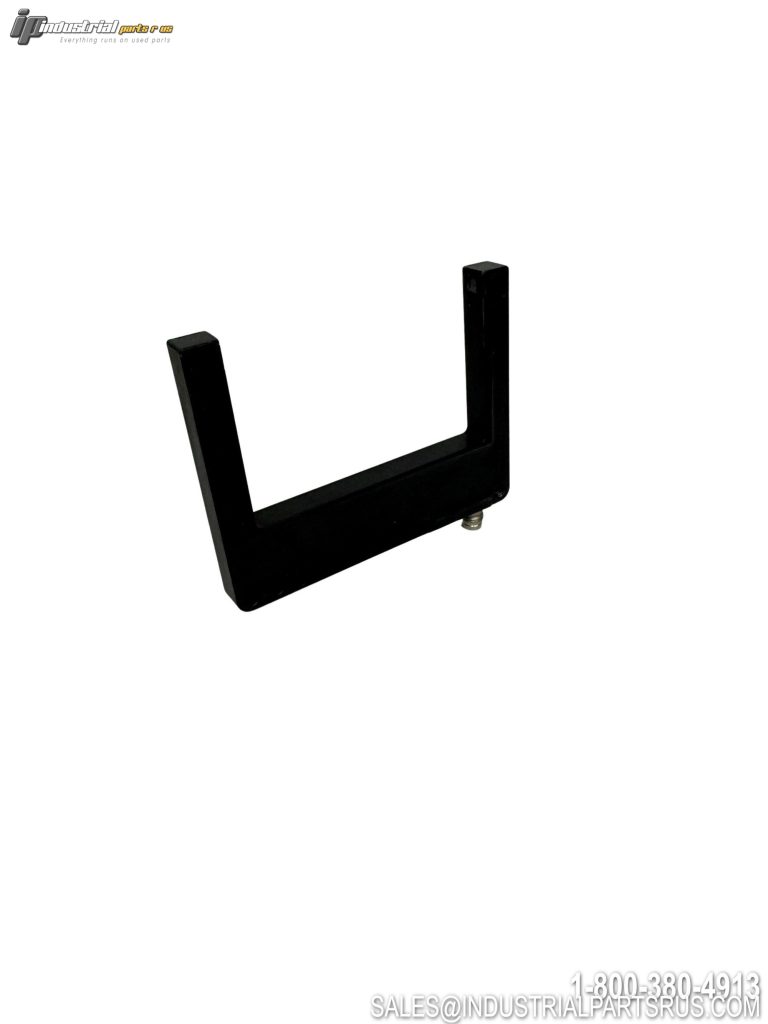

The Balluff BGL 80A-001-S49 is a fork-type photoelectric sensor designed for precise object detection and positioning applications. This self-contained through-beam sensor features a U-shaped housing configuration that offers pinpoint accuracy with highly visible red LED emission. The integrated transmitter and receiver design saves mounting and machine setup time while providing reliable process control.
| Specification | Value |
|---|---|
| Brand | Balluff |
| Model/Part Number | BGL 80A-001-S49 |
| Order Code | BGL0023 |
| Series | A |
| Fork Opening | 80 mm |
| Sensing Range Max | 80 mm |
| Supply Voltage | 10-30V DC |
| Output Type | PNP |
| Contact Configuration | NO/NC Switchable |
| Operating Current Max | 200 mA |
| Supply Current | 35 mA |
| Light Type | LED Red (636 nm) |
| Frequency Response | 1.5 kHz |
| Operating Temperature | -10°C to +60°C |
| IP Rating | IP65/IP67 |
| Dimensions | 10 x 100 x 88 mm |
| Housing Material | Aluminum |
| Connection Type | M8 x 1 Male 3-Pin |
| Sensing Surface Material | Glass |
| Mounting | Screw M4, Through Hole |
| Optical Operation | Through-beam |
We warranty all items for 30 days from date of purchase.
| Brand | Balluff |
| Manufacturer | Balluff |
| Model | BGL 80A-001-S49 |
| MPN | BGL 80A-001-S49 |
| Part Number | BGL 80A-001-S49 |
| Condition | Used |
| Weight | 1.00 |
| Current Type | DC |
| Mounting Type | Screw M4, Through Hole |
| Output Type | PNP |
| Sensor Type | Photoelectric |
| Shelf Location | K-57 |
| Country of Origin | Germany |
| Unit Type | Photoelectric Sensor |
We warranty all items for 30 days from date of purchase. If the item is defective, we will provide a refund or replacement at our discretion.
Items may be returned within 30 days of receipt. Please contact us before shipping any return. Items must be in original condition. Shipping costs are non-refundable.
Orders placed before 2:00 PM EST Monday–Friday typically ship the same day via UPS or FedEx. We also offer Next Day Air and freight options for larger items.
Yes! We actively buy used industrial equipment including robots, motors, drives, PLCs, and more. Contact us at 800-380-4913 or email us for a quote.
