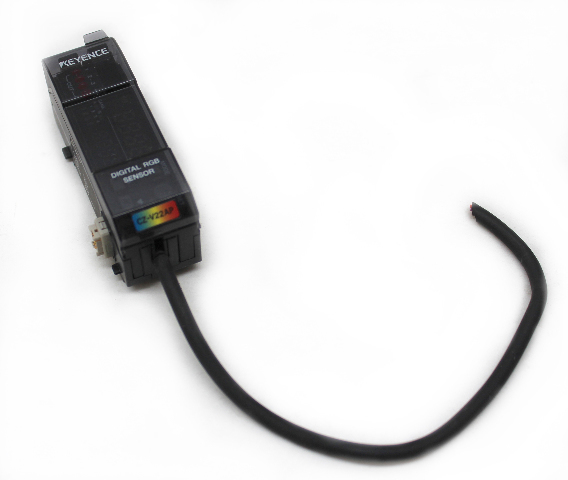

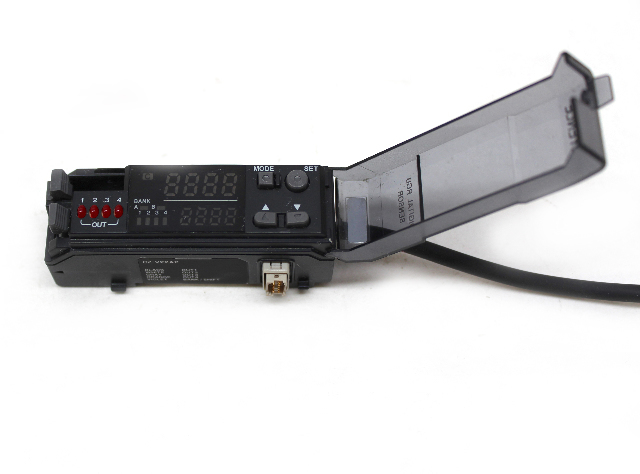

Keyence CZ-V22AP Digital RGB Sensor Amplifier Unit, Expansion Unit, PNP

Model

CZ-V22AP^*1

Output

PNP output

Main unit/expansion unit

Expansion unit

Response time

200 ë_s (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)

Control output

PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.^*2

Protection circuit

Reverse-polarity protection, overcurrent protection, surge absorber

External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode)

Input time: 20 ms min.

Timer function

Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)

Unit expansion

Up to 3 units (4 units total including the main unit)

Number of interference prevention units

0 for HIGH SPEED; 2 for FINE/TURBO/SUPER

Rating

Power voltage

24 VDC, Ripple (P-P) 10 % or less

Power consumption

Normal mode: 1.5 W (62.5 mA or less), Eco-mode: 1 W (42.0 mA or less)

Environmental resistance

Ambient temperature

-10 to +55 å¡CåÊ14 to 131 å¡FåÊ(No freezing)^*3

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mmåÊ0.06", 2 hours in each of the X, Y, and Z axis

Material

Housing, cover: Polycarbonate

Accessories

End Unit ÌÑ 2

Weight

Approx. 100 g
