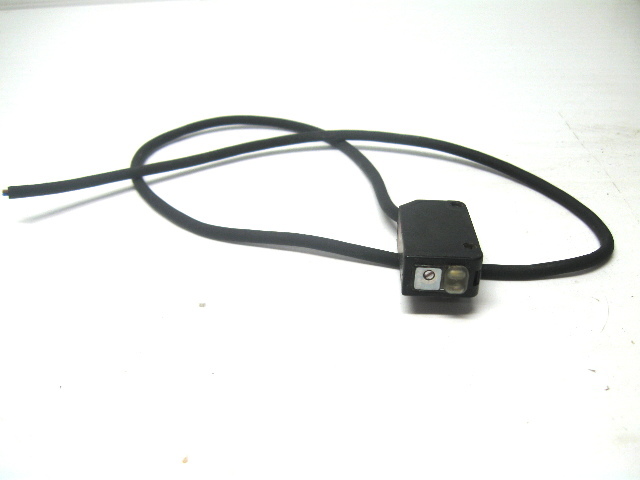

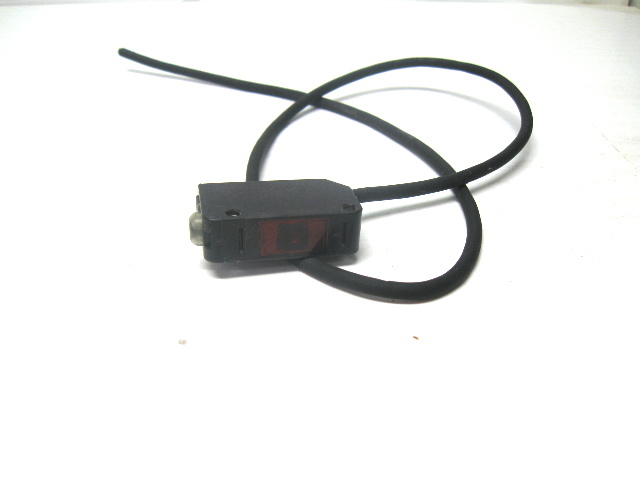

Keyence PZ-M51 Self Contained Thrubeam Photoelectric Sensor NPN, 12-24Vdc

Model

PZ-M51

Type

Thrubeam

Output

NPN

Detecting distance

10 måÊ32.8'^*1

Setting distance

‰Û¥

Light source.

Red LED

Sensitivity adjustment

1-turn trimmer (230å¡)

Response time

1.5 ms max.

Operation mode

LIGHT-ON/DARK-ON (switch-selectable)

Indicator lamp

Output and power: Orange LED, Stable operation: Green LED^*2

Control output

100 mA (24 V) max., Residual voltage: 1 V max.

Digital monitor

‰Û¥

Protection circuit

Reversed polarity, overcurrent protection, surge absorber

Rating

Power voltage

12 to 24 VDC å±10%, Ripple (P-P): 10% max., Class 2

Power consumption

T: 24 mA max. , R: 27 mA max.

Environmental resistance

Enclosure rating

IP67

Operating ambientluminance

Incandescent lamp 5000 lux max., Sunlight: 20000 lux max.

Operating temperature range

-20 to +55å¡CåÊ-4 to 131å¡F, No freezing

Operating ambient humidity

35 to 85% RH (No condensation)

Vibration

10 to 55 Hz, double amplitude 1.5 mmåÊ0.06", 2 hours for each of X,Y,Z axis

Shock resistance

1,000 m/s², 6 times in each of the X, Y, and Z directions

Case material

Glass-fiber reinforced plastic

Accessories

‰Û¥

Weight

T: Approx 50 g
R: Approx 50 g (including 2-måÊ6.6' cable)
