| SKU | AI0310 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Photoelectric Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

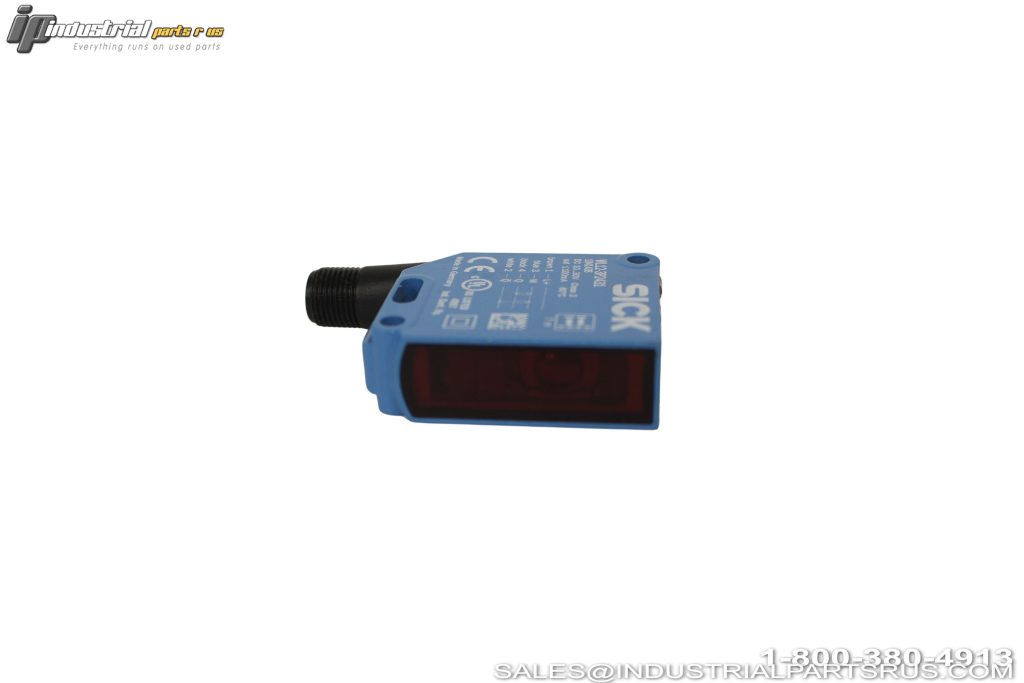

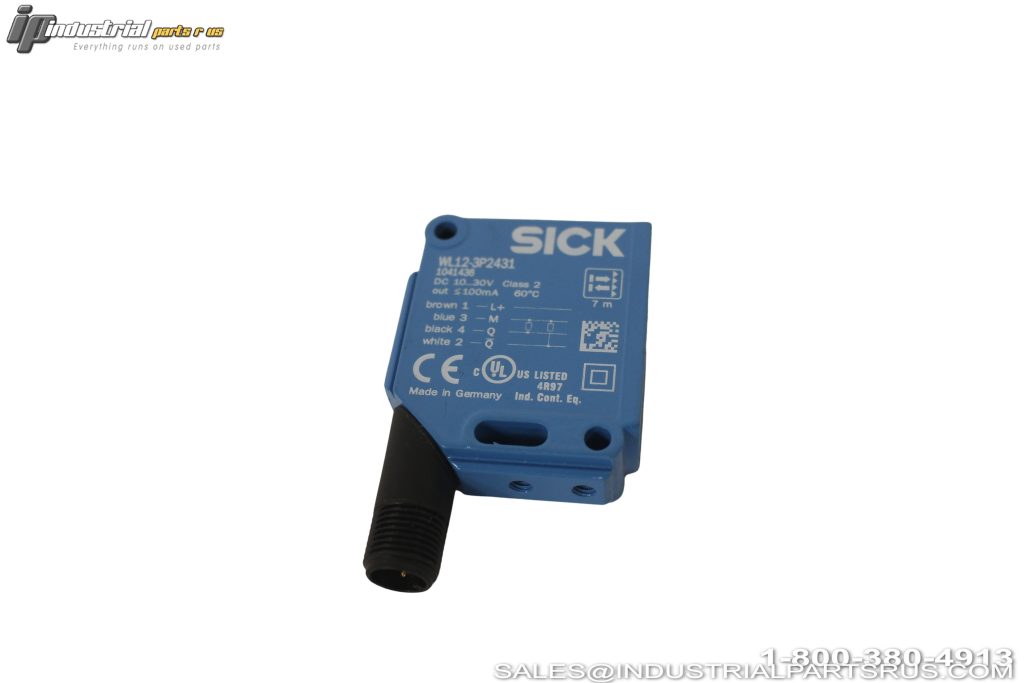

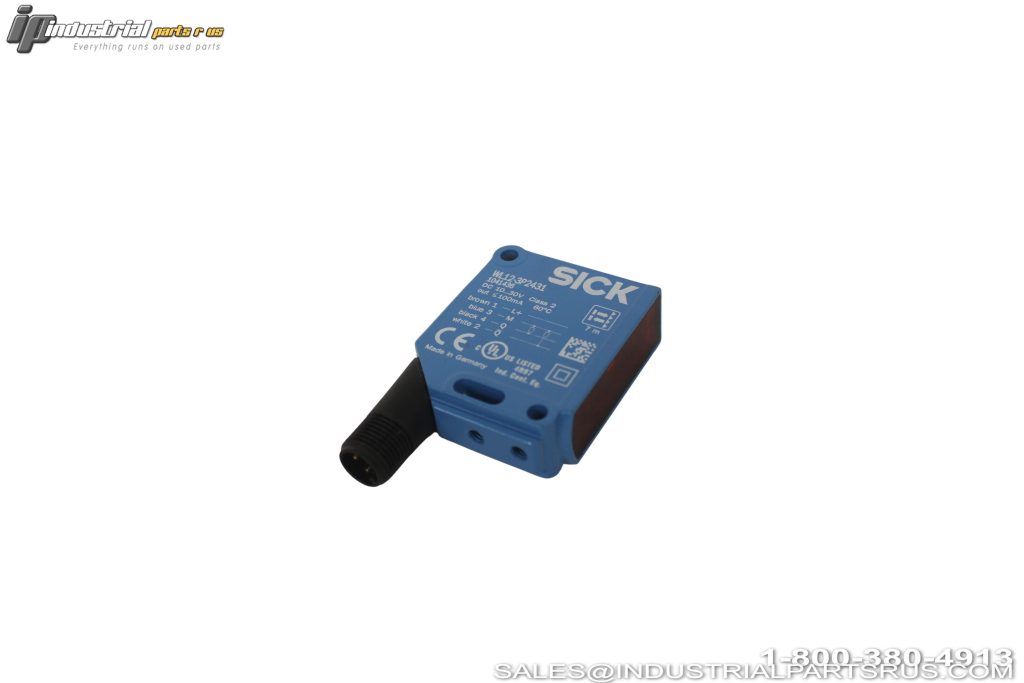

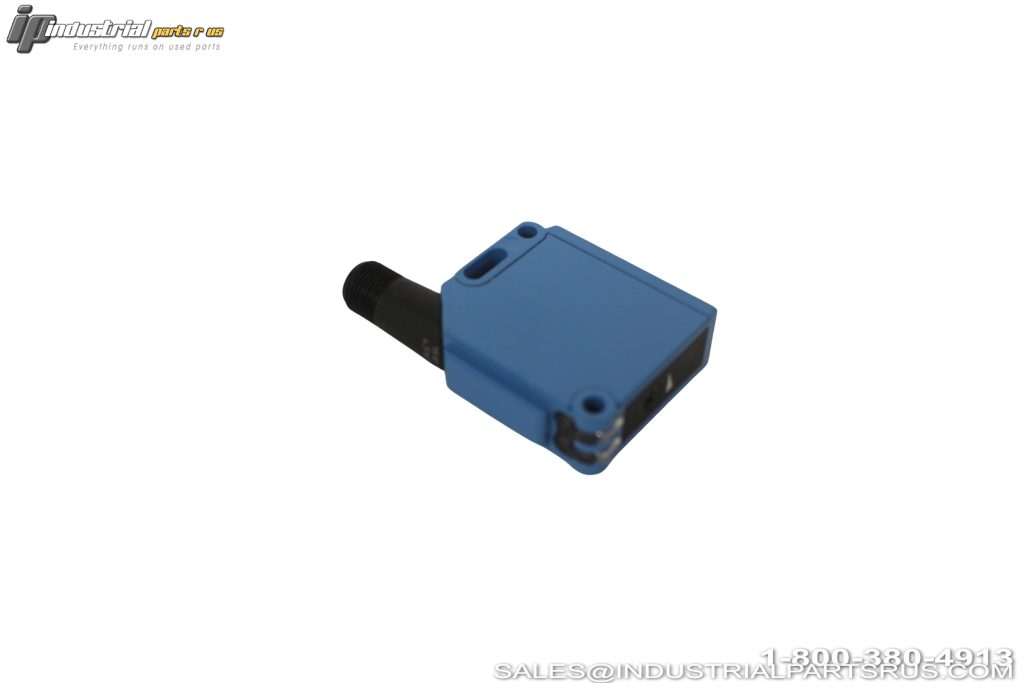

The SICK WL12-3P2431 is a W12-3 series photoelectric retro-reflective sensor with autocollimation technology designed for demanding industrial applications. This sensor provides reliable object detection with a maximum sensing range of 7m (5m typical) using visible red LED light at 640nm wavelength. The rugged metal housing construction ensures exceptional performance in harsh environments.
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | WL12-3P2431 |
| Sensor Type | Photoelectric Retro-reflective |
| Series | W12-3 |
| Sensing Range Max | 0-7m |
| Sensing Range Typical | 0-5m |
| Supply Voltage | 10-30VDC |
| Output Type | PNP |
| Current Consumption | 30mA |
| Output Current Max | 100mA |
| Response Time | ≤330µs |
| Switching Frequency | 1,500Hz |
| Light Source | LED Visible Red Light |
| Wavelength | 640nm |
| Connection Type | M12 4-pin Male Connector |
| Housing | Rectangular Metal |
| Dimensions (W×H×D) | 15.6 × 48.5 × 42mm |
| Protection Rating | IP66/IP67/IP69K |
| Operating Temperature | -40°C to +60°C |
We warranty all items for 30 days from date of purchase.
| Brand | SICK |
| Manufacturer | SICK |
| Model | WL12-3P2431 |
| MPN | WL12-3P2431 |
| Part Number | WL12-3P2431 |
| Condition | New |
| Weight | 1.00 |
| Current Type | DC |
| Operating Distance | 0-5m typical |
| Output Type | PNP |
| Sensor Type | Photoelectric |
| Shelf Location | P7 |
| Country of Origin | Germany |
| Unit Type | Photoelectric Sensor |
