Get notified when similar items arrive
2 in stock
| SKU | AI0152 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Photoelectric Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

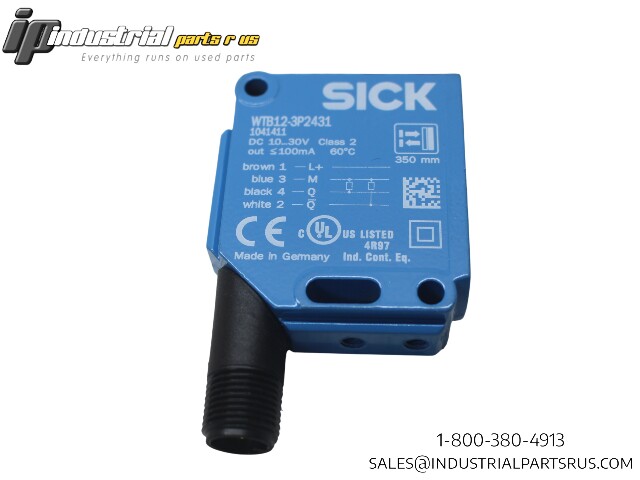

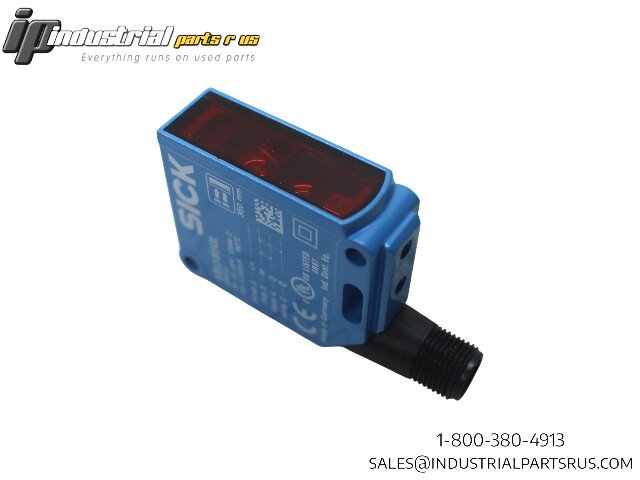

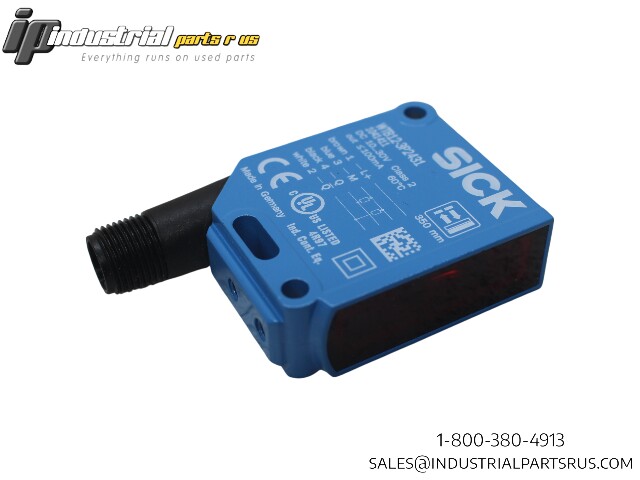

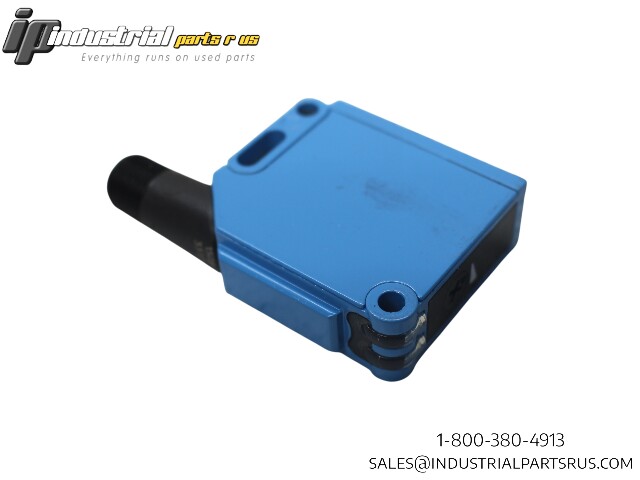

The SICK WTB12-3P2431 is a compact photoelectric proximity sensor featuring background suppression technology for reliable object detection in industrial applications. This sensor provides precise detection with a 20-350mm sensing range and operates with both light and dark switching modes through a PNP output.
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | WTB12-3P2431 |
| Part Number (SICK) | 1041411 |
| Series | W12-3 |
| Sensor Type | Photoelectric Proximity Sensor |
| Detection Principle | Background Suppression |
| Sensing Range | 20mm - 350mm |
| Light Source | LED |
| Light Type | Visible Red Light |
| Wavelength | 640 nm |
| Light Spot Size | Ø 6mm (at 200mm distance) |
| Supply Voltage | 10-30 VDC |
| Current Consumption | 45 mA |
| Current Type | DC |
| Output Type | PNP |
| Output Current | ≤ 100 mA |
| Switching Mode | Light/Dark Switching |
| Response Time | ≤ 330 µs |
| Switching Frequency | 1,500 Hz |
| Connection Type | M12 Connector, 4-Pin Male |
| Termination Type | M12 Connector |
| Housing Material | Metal |
| Front Screen Material | Plastic (PMMA) |
| Housing Design | Rectangular |
| Dimensions (W x H x D) | 15.6 x 48.5 x 42 mm |
| Weight | 120 g |
| IP Rating | IP66/IP67/IP69K |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +75°C |
| Adjustment | Potentiometer, 5 turns |
| Protection Class | III |
| Output Function | Complementary |
We warranty all items for 30 days from date of purchase.
| Brand | SICK |
| Manufacturer | SICK |
| Model | WTB12-3P2431 |
| MPN | WTB12-3P2431 |
| Part Number | WTB12-3P2431 |
| Condition | New |
| Weight | 1.00 |
| Voltage | 10-30 VDC |
| Current Type | DC |
| Operating Distance | 20mm - 350mm |
| Sensing Range | 20mm - 350mm |
| Series | W12-3 |
| Output Type | PNP |
| Sensor Type | Photoelectric |
| Shelf Location | P-7 |
| Country of Origin | Germany |
| Unit Type | Photoelectric Sensor |
