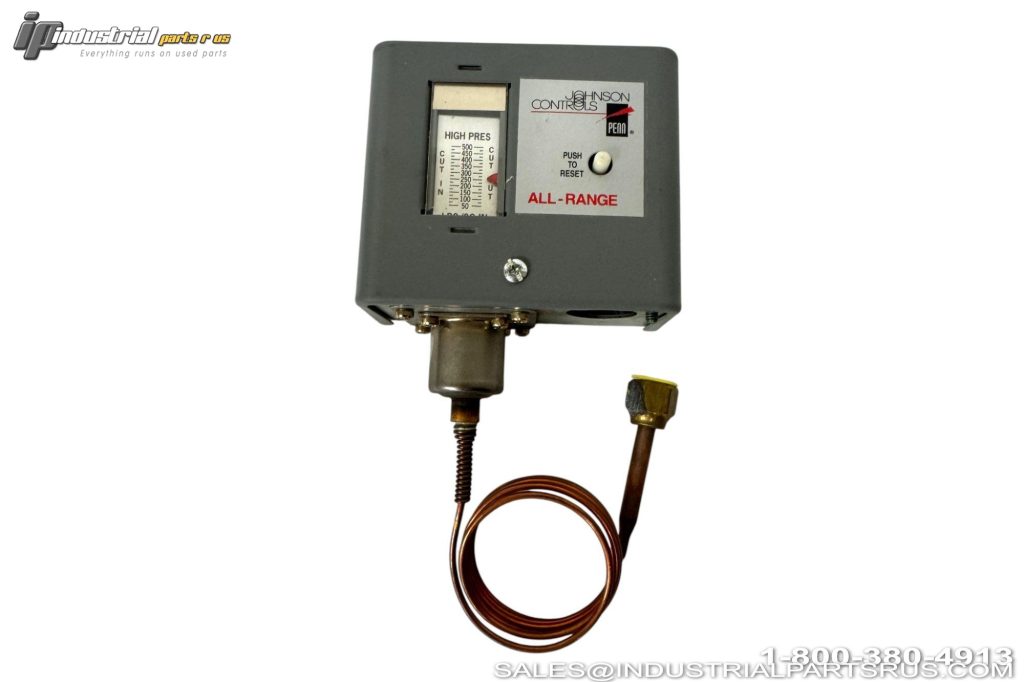

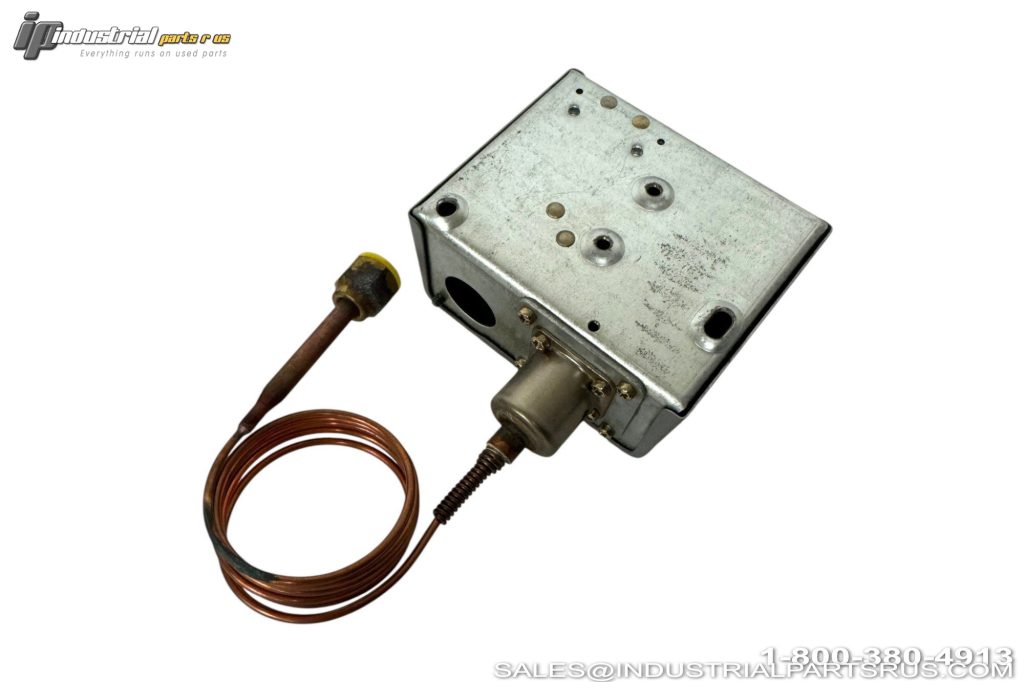

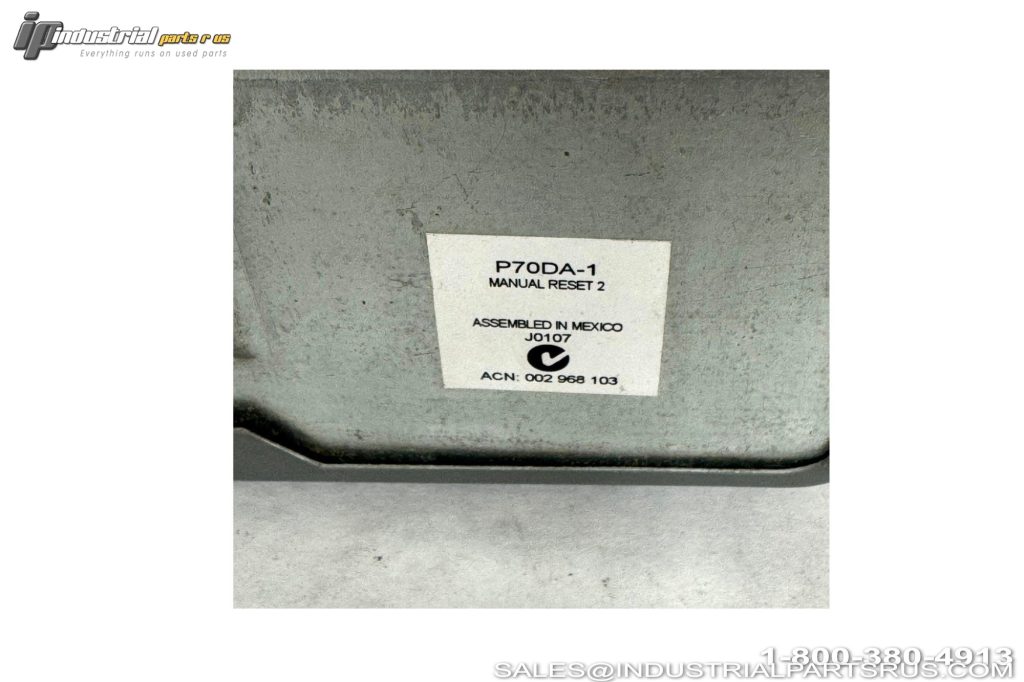

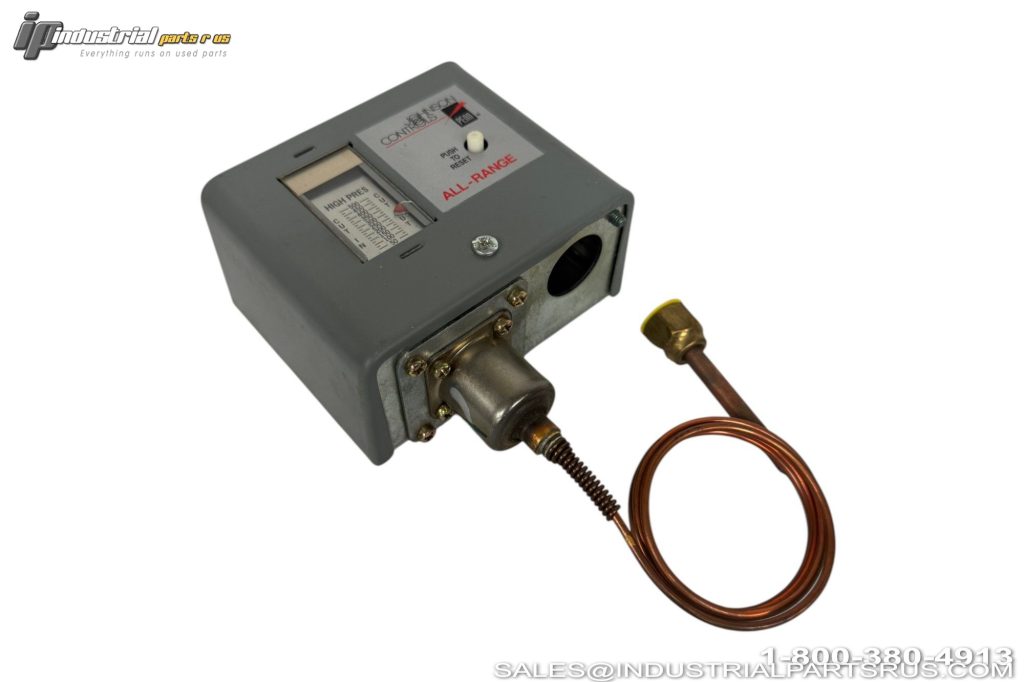

The Johnson Controls P70DA-1 is a single pole high pressure control switch designed for commercial air conditioning and refrigeration applications. This electromechanical pressure switch features a manual reset lockout function that provides trip-free protection and cannot be overridden until pressure returns to specified levels. The unit operates with a bellows-actuated switching mechanism and is compatible with common refrigerants including R-12, R-22, R-134A, R-500, and R-502.
| Specification | Value |
|---|---|
| Brand | Johnson Controls |
| Model/Part Number | P70DA-1 |
| Product Type | Pressure Sensor |
| Series | P70 |
| Pressure Range | 50 to 450 PSI |
| Maximum Working Pressure | 525 PSIG |
| Switch Configuration | SPST (Single Pole Single Throw) |
| Switch Action | Close High, Open Low |
| Reset Type | Manual Reset Lockout |
| Capillary Length | 36 inches |
| Connection Type | 1/4 inch Flare Nut |
| Element Type | Bellows |
| Compatible Refrigerants | R-12, R-22, R-134A, R-500, R-502 |
| Application | High Pressure Cut-Out Control, Head Pressure Control |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Galvanized Steel Case, Plated and Painted Steel Cover |
We warranty all items for 30 days from date of purchase.
| Brand | Johnson Controls |
| Manufacturer | Johnson Controls |
| Model | P70DA-1 |
| MPN | P70DA-1 |
| Part Number | P70DA-1 |
| Condition | New Other |
| Weight | 2.00 |
| Current Type | AC |
| Enclosure Type | NEMA 1 |
| Mounting Type | Upright and Level |
| Output Type | Relay |
| Sensor Type | Pressure Switch |
| Shelf Location | K-3 |
| Country of Origin | United States |
| Unit Type | Pressure Sensor |
