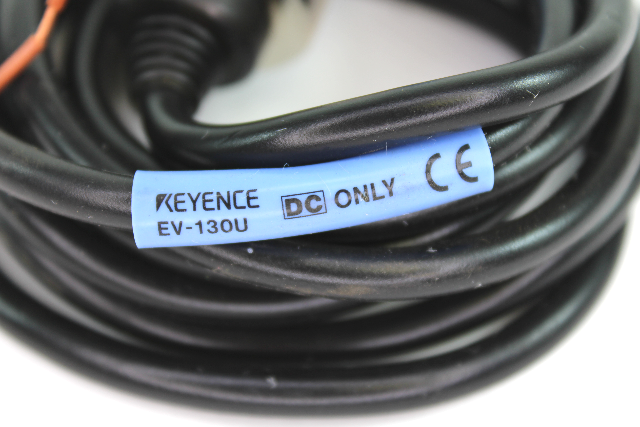

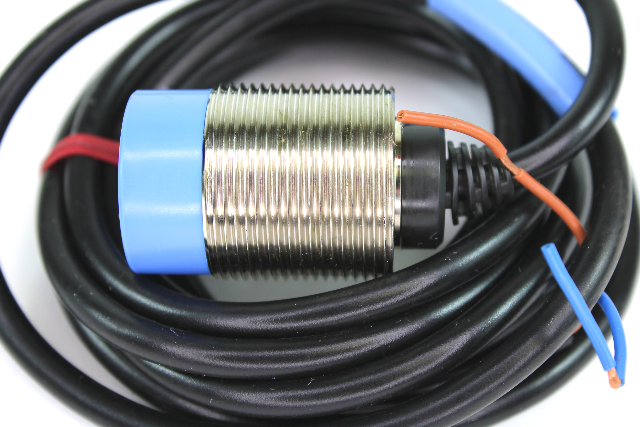

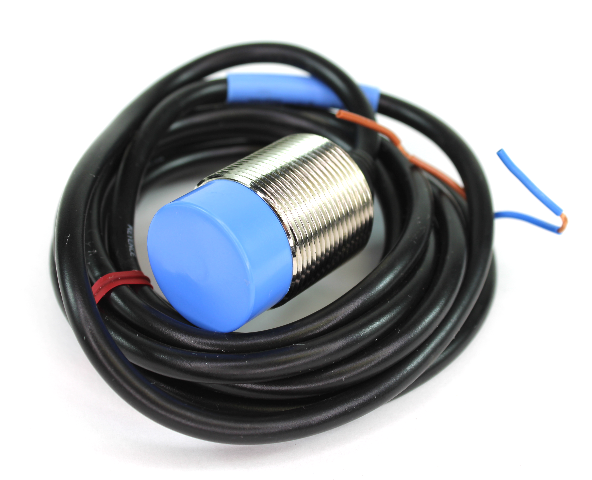

Keyence EV-130U Two-Wire Self Contained Proximity Sensor M30 Non-Shielded New

Model

EV-130U

Type

DC , Non-shielded

Shape

M30

Detecting distance

27 mmåÊ1.06"åÊå±10%

Detectable object

Ferrous metals (see Characteristics for nonferrous metals)

Standard target
(iron, t=1 mmåÊ0.04")

70 x 70 mmåÊ2.76"

Hysteresis

20% max. of detecting distance, within -10 to +70å¡CåÊ14 to 158å¡F

Response frequency

250 Hz

Operation mode

N.O.

Temperature characteristics

-5 to +20%,
within -10 to +70å¡CåÊ14 to 158å¡F

Control output
(switching capacity)

5 to 200 mA

Protection circuit

Reversed polarity, short-circuit, surge voltage

Cable length

2 måÊ6.6'

Rating

Power voltage

12 to 24 VDC, Ripple (p-p) 20% max.

Current consumption (leakage
current)

Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-måÊ6.6'åÊcable)

Residual voltage

Residual voltage: 3.6 V max. (with 2-måÊ6.6'åÊcable)

Environmental resistance

Enclosure rating

IP67

Operating temperature range

-25 to +80å¡CåÊ-13 to 176å¡F, No freezing

Operating ambient humidity

35 to 95%, No condensation

Vibration

10 to 55 Hz, 1.5 mmåÊ0.06"åÊdouble amplitude in X, Y, and Z directions, 2 hours

Shock resistance

1,000 m/s²åÊ3280.8'åÊin X, Y, and Z
directions, 3 times respectively

Case material

Nickel-plated brass
