Get notified when similar items arrive
1 in stock
| SKU | AI0909 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Proximity Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

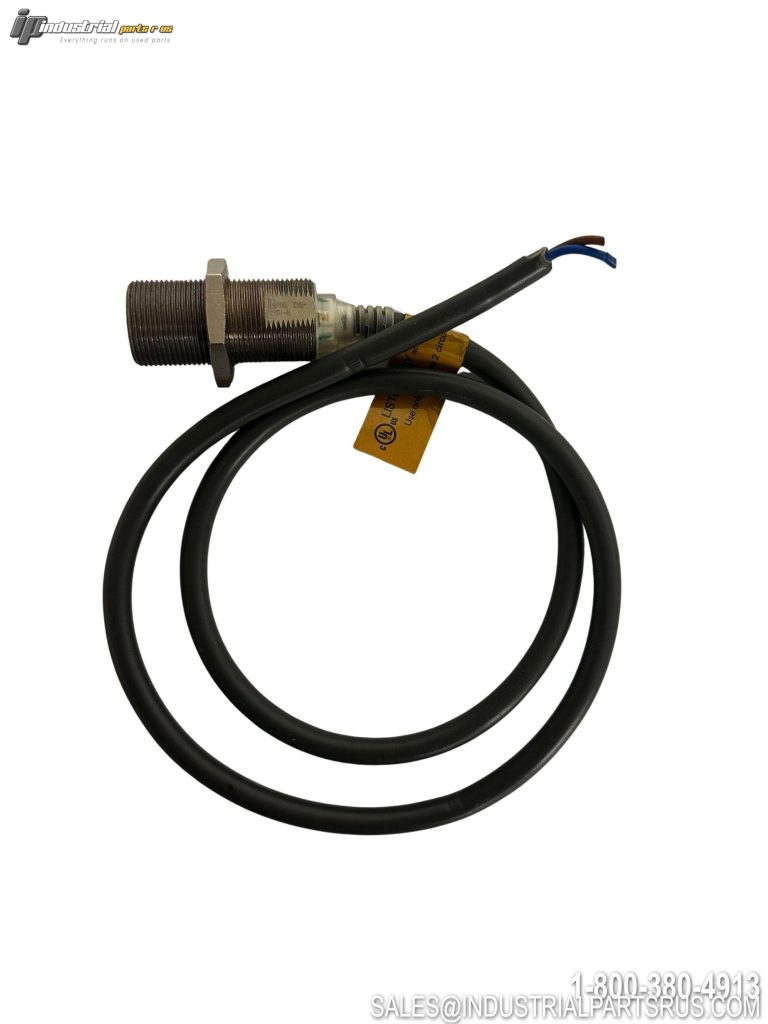

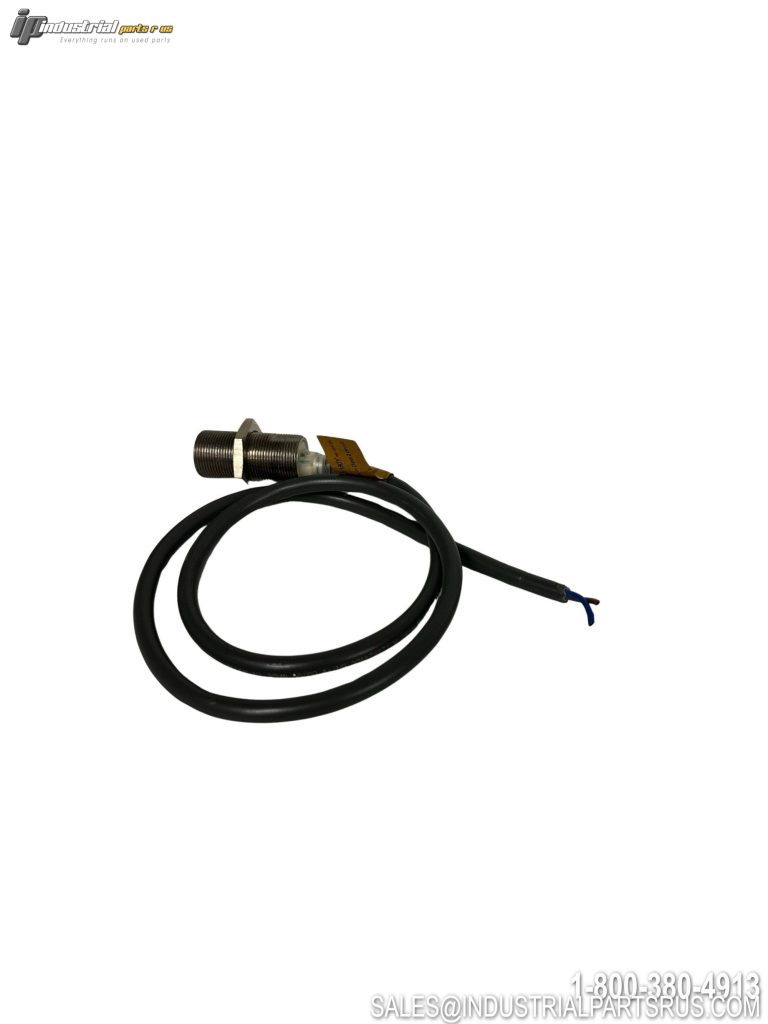

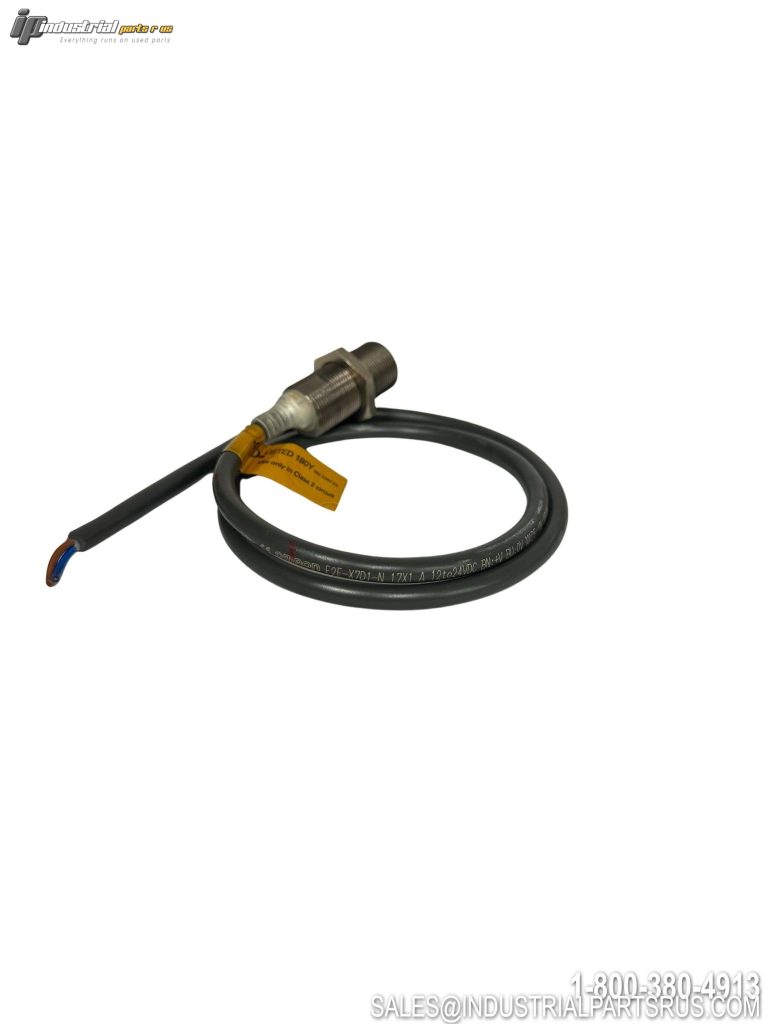

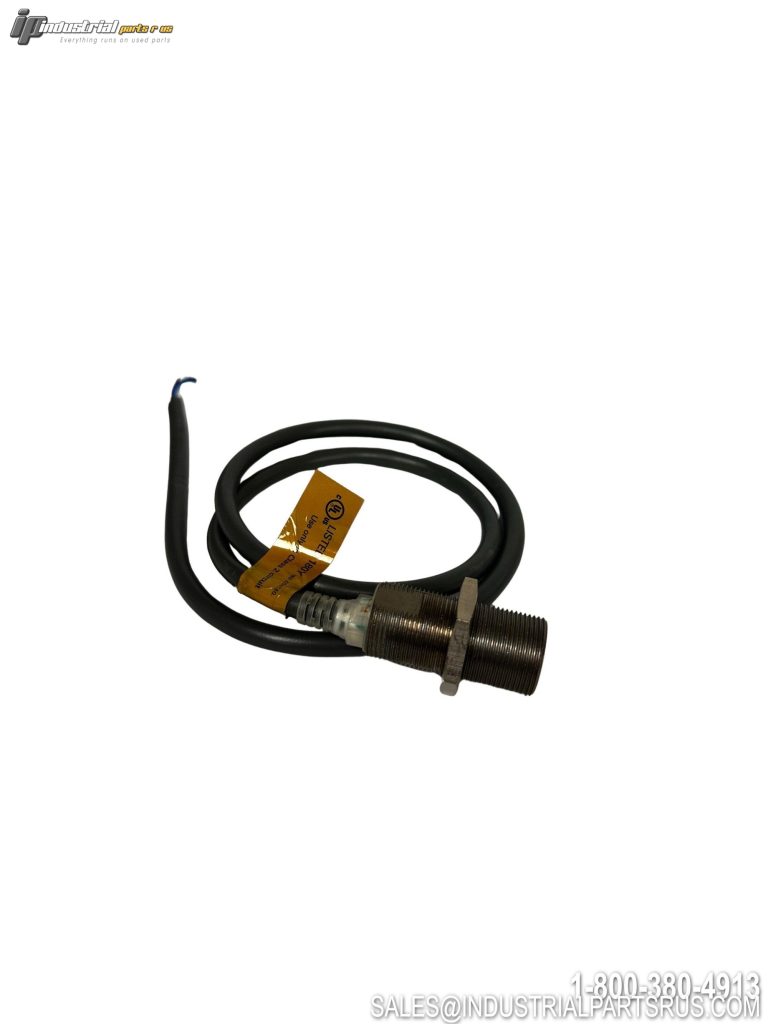

The OMRON E2E-X7D1-N is a DC 2-wire inductive proximity sensor designed for detecting ferrous metals in industrial automation applications. This shielded cylindrical sensor features a 7mm sensing range and M18x1 threaded mounting for easy installation in tight spaces.
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | E2E-X7D1-N |
| Sensor Type | Inductive Proximity Sensor |
| Sensing Range | 7mm ±10% |
| Thread Size | M18x1 |
| Housing Diameter | 18mm |
| Overall Length | 55mm |
| Threaded Length | 38mm |
| Supply Voltage | 12-24 VDC (nominal) |
| Operating Voltage Range | 10-30 VDC |
| Output Type | DC 2-Wire, NO (Normally Open) |
| Switching Capacity | 3-100 mA |
| Response Frequency | 500 Hz (max) |
| Leakage Current | 0.8 mA |
| Residual Voltage | 3V (at 100mA, 2m cable) |
| Setting Distance | 0-5.6mm |
| Standard Sensing Object | Iron 18x18x1mm |
| Housing Material | Nickel-plated Brass |
| Sensing Surface | PBT (Polybutylene Terephthalate) |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Connection Type | Pre-wired (Flying Leads) |
| Mounting Type | Flush (Shielded) |
| Series | E2E |
We warranty all items for 30 days from date of purchase.
| Brand | Omron |
| Manufacturer | Omron |
| Model | E2E-X7D1-N |
| MPN | E2E-X7D1-N |
| Part Number | E2E-X7D1-N |
| Condition | Used |
| Weight | 1.00 |
| Current Type | DC |
| Operating Distance | 7mm ±10% |
| Mounting Type | Flush |
| Output Type | DC 2-Wire NO |
| Sensor Type | Inductive |
| Shelf Location | N-5 |
| Country of Origin | Japan |
| Unit Type | Inductive Proximity Sensor |
We warranty all items for 30 days from date of purchase. If the item is defective, we will provide a refund or replacement at our discretion.
Items may be returned within 30 days of receipt. Please contact us before shipping any return. Items must be in original condition. Shipping costs are non-refundable.
Orders placed before 2:00 PM EST Monday–Friday typically ship the same day via UPS or FedEx. We also offer Next Day Air and freight options for larger items.
Yes! We actively buy used industrial equipment including robots, motors, drives, PLCs, and more. Contact us at 800-380-4913 or email us for a quote.
