Festo LFR-D-5M-MIDI / FRM-D-MIDI / HEE-D-MIDI-24 / HEL-D-MIDI Pneumatic Assembly

$185.00
WARRANTY
30-Day Guarantee
RETURNS
Easy Returns
FAST SHIP
Same Day Cutoff 2PM
Condition
Used / Inspected
All items are verified to be in proper working condition before shipping. Includes 30-day warranty.
In Stock — 1 unit available

1 in stock

All Products

Product Details

SKUIP11292
ConditionUsed / Inspected
Warranty30 Days
Categories , , , , ,

Shipping Info

Ships FromBardstown, KY
GroundUPS / FedEx
ExpressNext Day Air Available
FreightAvailable on Request
Cutoff2:00 PM EST Mon–Fri
Festo LFR-D-5M-MIDI / FRM-D-MIDI / HEE-D-MIDI-24 / HEL-D-MIDI Pneumatic Assembly

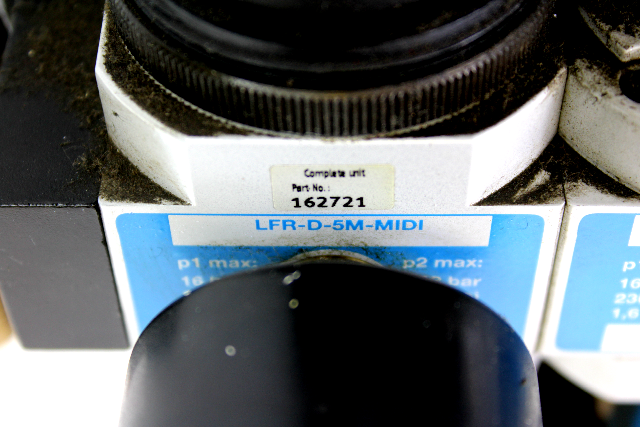

FESTO LFR-D-5M-MIDI FILTER REGULATOR WITH PRESSURE GAUGE:
-Max. Condensate Volume: 42.983 ml
-Operating Pressure: 0.951 Bar...16.547 Bar
-Pressure Regulation Range: 0.476 Bar...12.411 Bar
-Ambient Temp: -10°C...60°C
-Polycarbonate Bowl

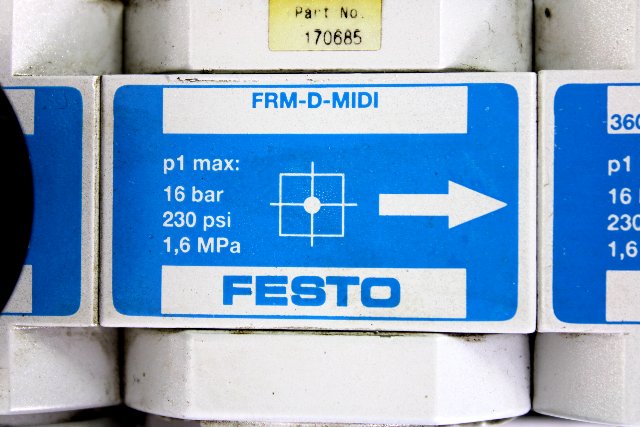

FESTO FRM-D-MIDI BRANCHING MODULE:
-Operating Pressure: 0...16 Bar
-Nominal Flow Rate in Main Flow Direction 1->2: 8200 l/min

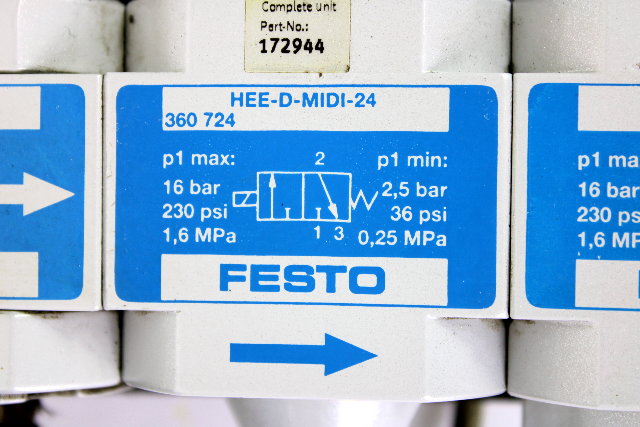

FESTO HEE-D-MIDI-24 SOFT START VALVE:
-55 mm
-24 VDC
-P1 Max: 16 Bar / 230 PSI / 1,6 MPa
-P1 Min: 2,5 Bar / 36 PSI / 0,25 MPa

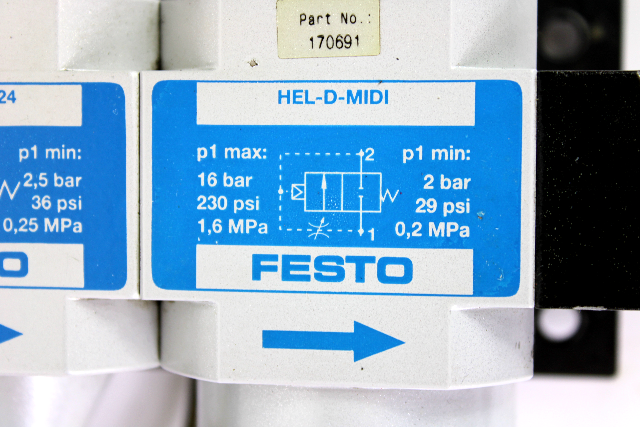

FESTO HEL-D-MIDI SOFT VALVE:
-Valve Function: 2/2-Way, closed, monostable
-Operating Pressure: 3...16 Bar
-Ambient Temp: -10°C...60°C
-P1 Max: 16 Bar / 230 PSI / 1,6 MPa
-P1 Min: 2 Bar / 29 PSI / 0,2 MPa

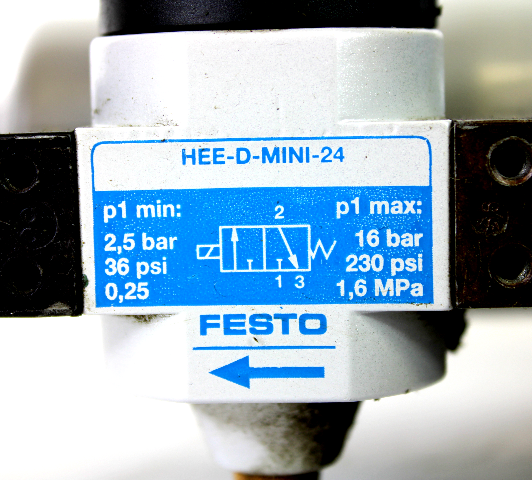

FESTO HEE-D-MINI-24 SHUT OFF VALVE:
-3/2-Way Valve
-P1 Min: 2,5 Bar / 36 PSI / 0,25 MPa
-P1 Max: 16 Bar / 230 PSI / 1,6 MPa

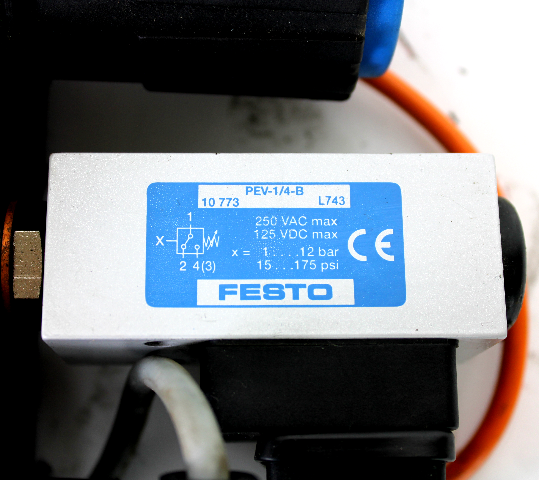

FESTO PEV-1/4-B PRESSURE SWITCH:
-250 VAC Max
-125 VDC Max
-1...12 Bar
-15...175 PSI
-Max. Switching Frequency: 3 Hz
-Max. Ouptut Current: 5000 mA
-Minimum Load Current: 1mA @ 24V / 10mA @ 10V / 100mA @ 5V
-IP65




BrandFesto
ManufacturerFesto
ModelFRM-D-MIDI
MPNLFR-D-5M-MIDI
Part NumberLFR-D-5M-MIDI
ConditionUsed
Weight10.13
Shelf LocationJ-79
Unit TypePneumatic Regulator Valve Assembly
