14 in stock
| SKU | IP15118 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Automation Control, Flow Switches, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |
| Number of inputs and outputs | Number of digital outputs: 2 | ||
| Measuring range |
|
||
| Process connection | threaded connection Rc 1/2 Internal thread DN8 |
| System | gold-plated contacts | ||
| Application | for industrial applications | ||
| Media | water; glycol solutions; Coolants | ||
| Medium temperature[°C] | -10...90 | ||
| Pressure rating |
|
||
| Note on pressure rating |
|
| Operating voltage[V] | 18...30 DC |
| Current consumption[mA] | < 30 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | < 3 |
| Measuring principle | Vortex |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Total number of outputs | 2 |
| Output signal | switching signal; frequency signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Measuring range |
|
||
| Display range |
|
||
| Resolution |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| Frequency end point, FEP |
|
||
| In steps of |
|
||
| Frequency at the end point FRP[Hz] | 100...1000 | ||
| Measuring dynamics | 1:20 |
| Temperature monitoring | |
|---|---|
| Measuring range[°C] | -10...90 |
| Display range[°C] | -30...110 |
| Resolution[°C] | 0.5 |
| Set point SP[°C] | -9...90 |
| Reset point rP[°C] | -10...89 |
| In steps of[°C] | 0.5 |
| Frequency start point, FSP[°C] | -10...70 |
| Frequency end point, FEP[°C] | 10...90 |
| Frequency at the end point FRP[Hz] | 100...1000 |
| Flow monitoring | |
|---|---|
| Accuracy (in the measuring range) | ± 2 % MEW; (water) |
| Repeatability | ± 0,5 % MEW |
| Temperature monitoring | |
|---|---|
| Accuracy[K] | ± 1 |
| Flow monitoring | |
|---|---|
| Response time[s] | 1; (dAP = 0) |
| Damping process value dAP[s] | 0...5 |
| Temperature monitoring | |
|---|---|
| Dynamic response T05 / T09[s] | T09 = 6 |
| Parameter setting options | hysteresis / window; normally open / closed; switching logic; Frequency output; switch-on/switch-off delay; Damping; Display unit |
| Communication interface | IO-Link | ||||
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 2 | ||||
| Process data binary | 2 | ||||
| Min. process cycle time[ms] | 3 | ||||
| Supported DeviceIDs |
|
| Ambient temperature[°C] | 0...60 | ||
| Note on ambient temperature |
|
||
| Storage temperature[°C] | -20...80 | ||
| Protection | IP 65; IP 67 |
| EMC |
|
||||||||||||
| CPA approval |
|
||||||||||||
| Shock resistance |
|
||||||||||||
| Vibration resistance |
|
||||||||||||
| MTTF[years] | 342 | ||||||||||||
| UL approval |
|
||||||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight[g] | 442 |
| Housing | rectangular |
| Dimensions[mm] | 110 x 45 x 72 |
| Material | stainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM |
| Tightening torque[Nm] | 30 |
| Process connection | threaded connection Rc 1/2 Internal thread DN8 |
| Display |
|
| Remarks |
|
||
| Pack quantity | 1 pcs. |
| Connection |
| Brand | IFM Efector |
| Manufacturer | IFM Efector |

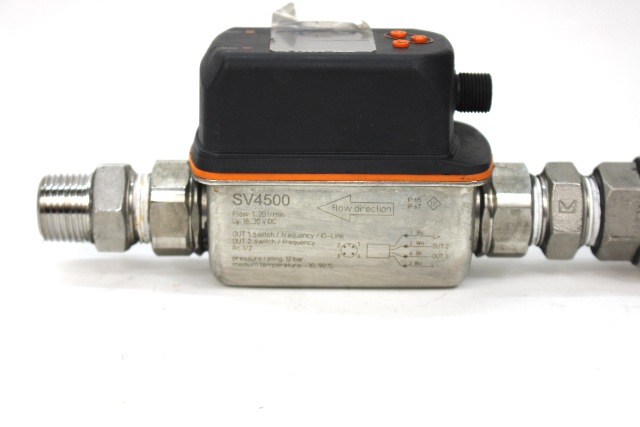

| Model | SV4500 |
| MPN | SV4500 |
| Condition | Used |
| Weight | 2.00 |
| Current Type | DC |
| Output Type | PNP/NPN |
| Sensor Type | Flow Meter |
| Shelf Location | J-65 |
| Unit Type | Flow Meter |
