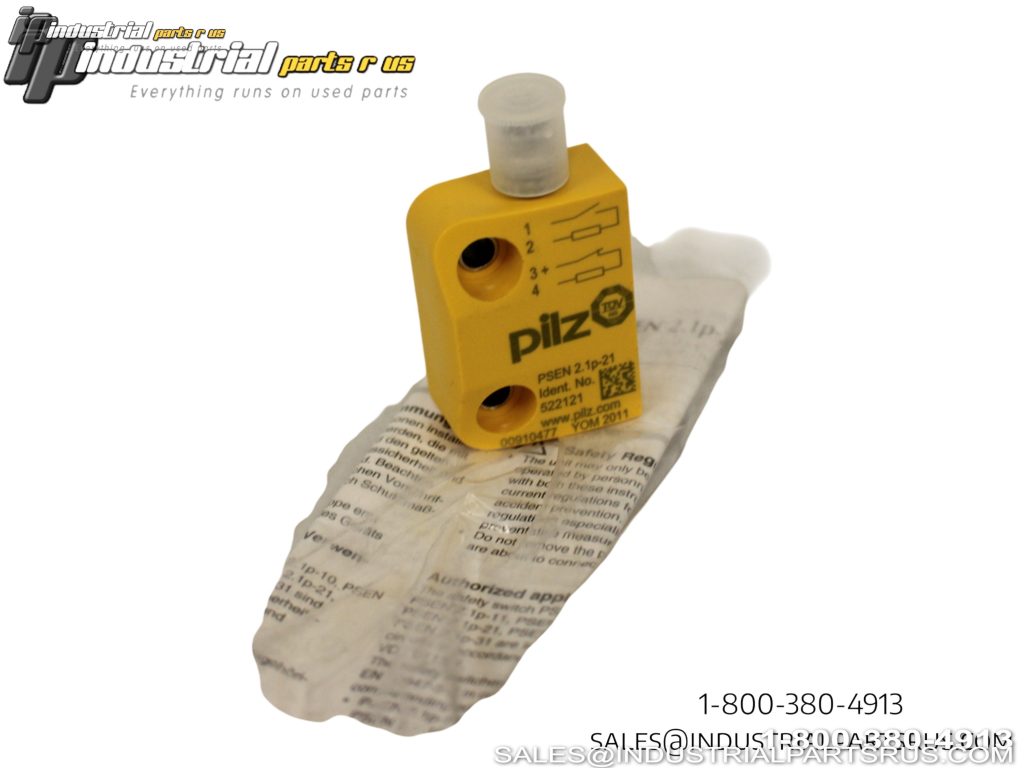

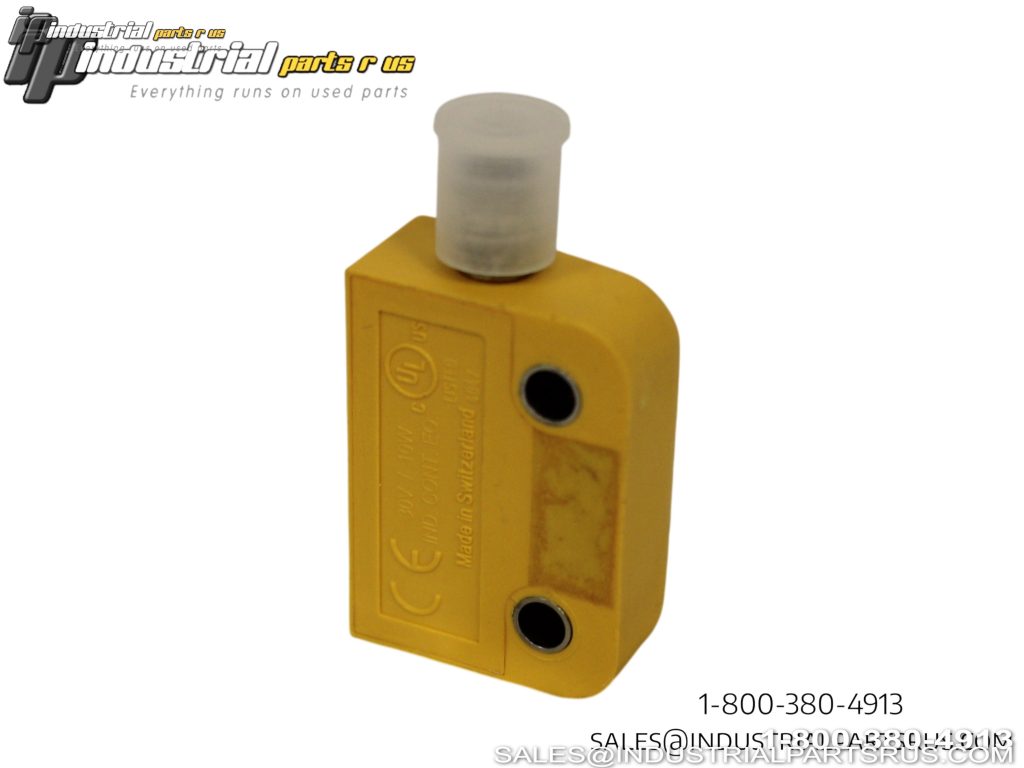

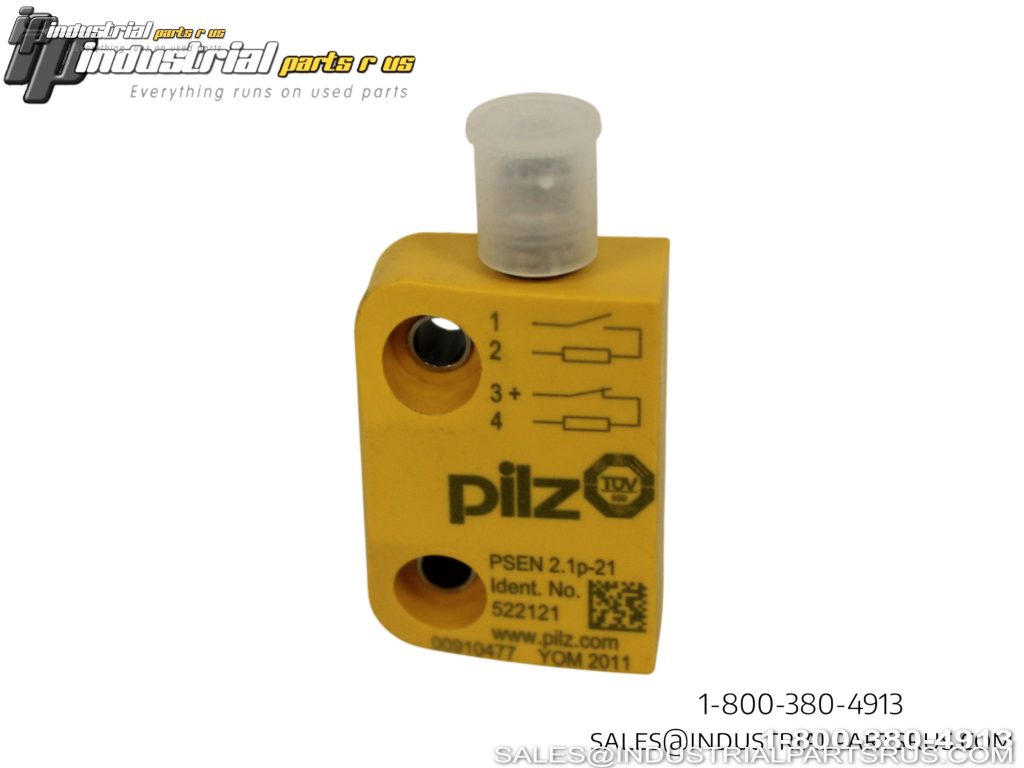

The Pilz PSEN 2.1p-21 is a non-contact magnetic safety switch designed for monitoring the position of movable guards in accordance with EN 60947-5-3. This square-design safety switch features reed contact technology and includes an LED status indicator for visual feedback of switch status.
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | PSEN 2.1p-21 |
| Product Type | Magnetic Safety Switch |
| Series | PSENmag |
| Sensor Principle | Magnetic |
| Contact Configuration | 1NC/1NO |
| Number of N/O Contacts | 1 |
| Number of N/C Contacts | 1 |
| Switching Voltage | 24 VDC |
| Max Current Safe Contacts | 0.01 A |
| Connection Type | M8 4-Pin Male |
| Operating Distance | 8 mm |
| Release Distance | 26 mm |
| Design | Square |
| Protection Rating | IP67 |
| Status Indicator | LED |
| Width | 26.0 mm |
| Height | 36.0 mm |
| Depth | 13.0 mm |
| Ambient Temperature | -25°C to +70°C |
| Approvals | CE, cULus Listed, TÜV |
| Safety Rating | PLe, SIL 3, Category 4 |
| Actuator Model | PSEN 2.1-20 |
We warranty all items for 30 days from date of purchase.
| Brand | Pilz |
| Manufacturer | Pilz |
| Model | PSEN 2.1P-21 |
| MPN | PSEN 2.1P-21 |
| Part Number | PSEN 2.1P-21 |
| Condition | New |
| Weight | 1.00 |
| Coil Voltage | 24 VDC |
| Current Rating | 0.01 A |
| Current Type | DC |
| Operating Distance | 8mm |
| Enclosure Type | IP67 |
| Mounting Style | Surface Mount |
| Sensor Type | Magnetic |
| Shelf Location | N-9 |
| Country of Origin | Germany |
| Unit Type | Safety Interlock |
| Application | Safety Interlock Monitoring |
