| SKU | AI0881 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Industrial Controls, Safety Relays |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |

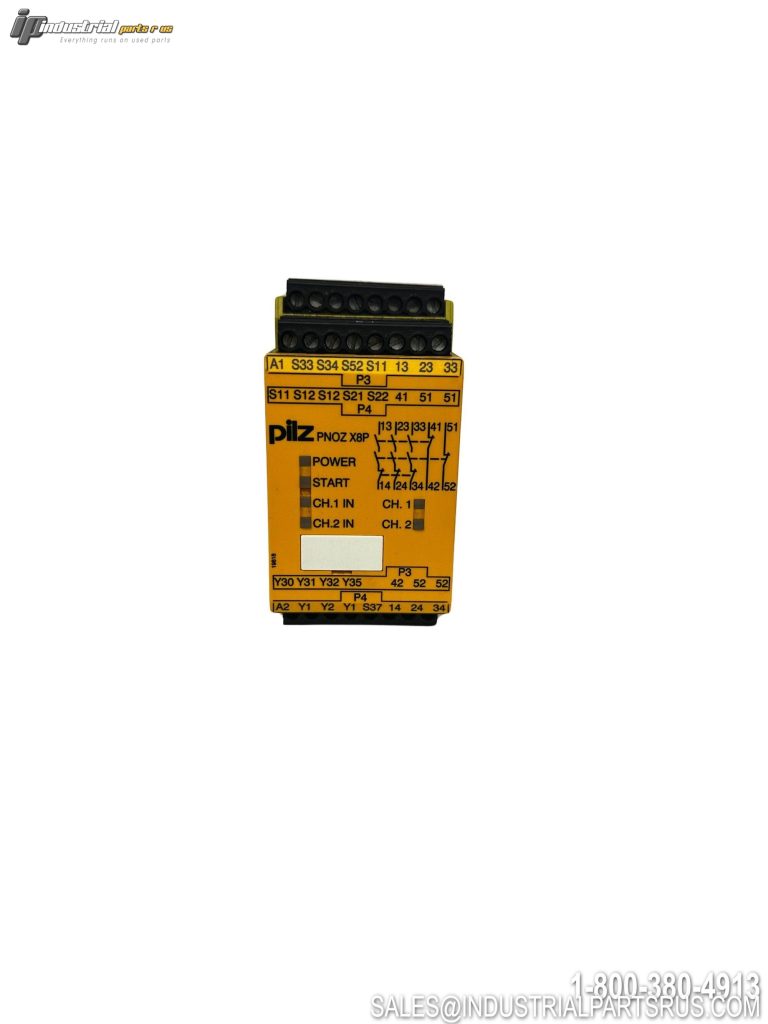

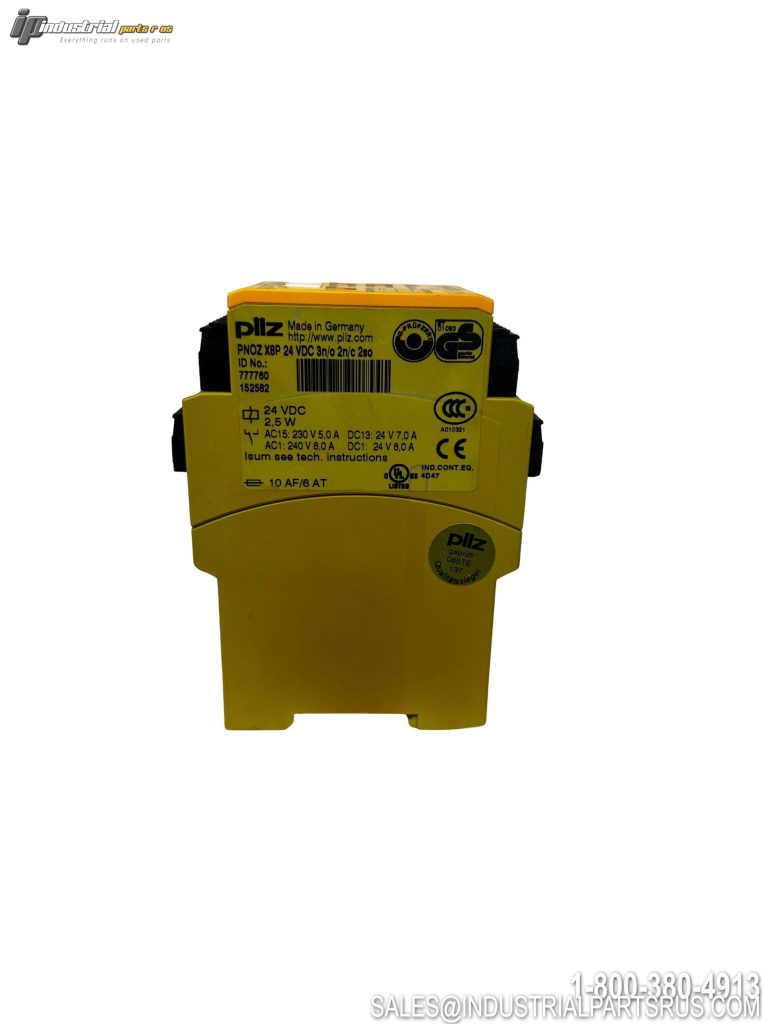

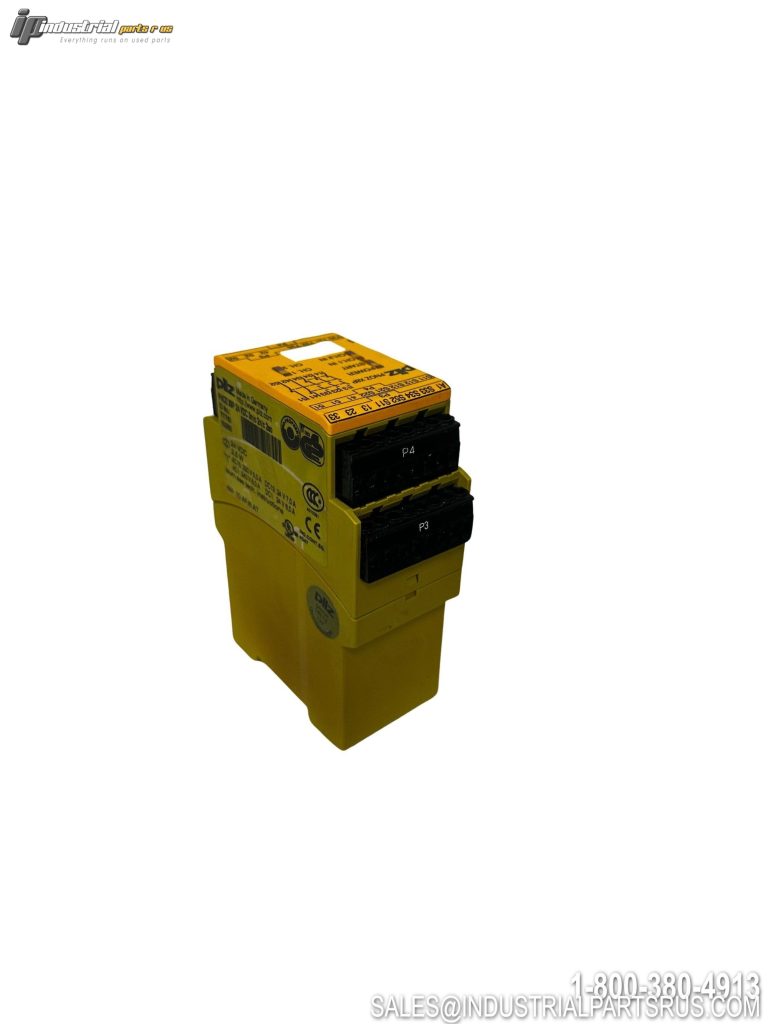

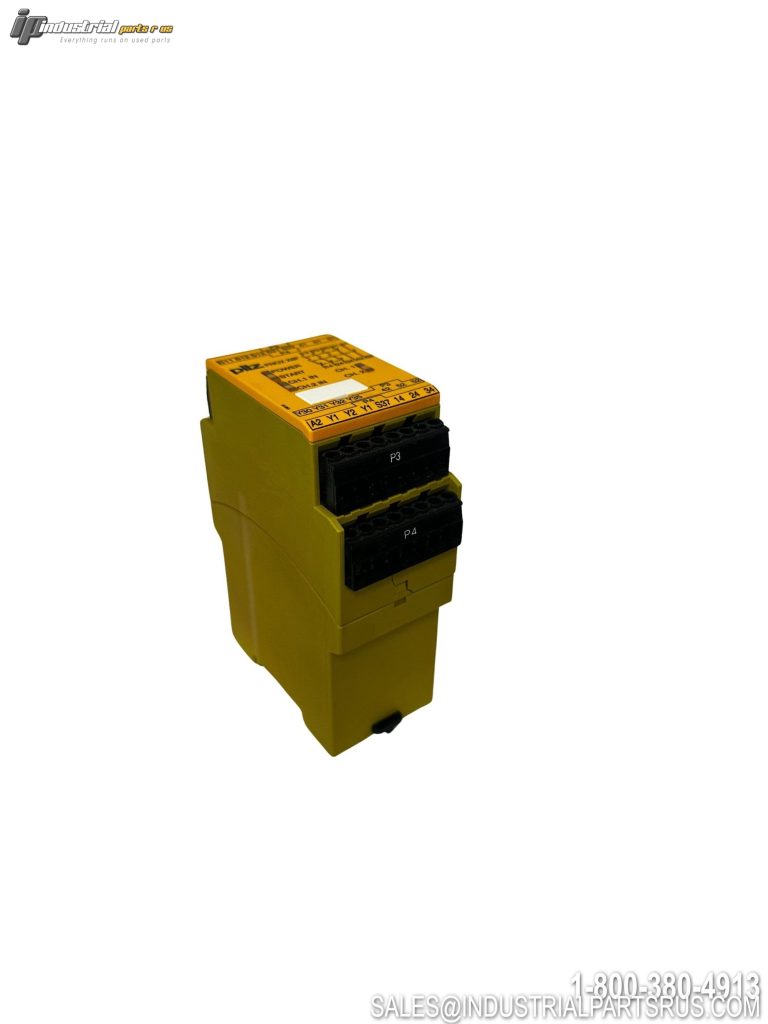

The Pilz PNOZ X8P is a compact safety relay designed for monitoring emergency stop pushbuttons, safety gates, and light barriers in industrial applications. This single or dual-channel safety relay provides robust protection with automatic/monitored reset functionality and meets the highest safety standards including SIL3/PLe Category 4.
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | PNOZ X8P |
| Product Type | Safety Relay |
| Supply Voltage | 24VDC (20.4-26.4VDC) |
| Power Consumption | 2.5W |
| Safety Outputs | 3 N/O (Normally Open) |
| Auxiliary Outputs | 2 N/C (Normally Closed) |
| Semiconductor Outputs | 2 SO (24VDC, 20mA) |
| Contact Rating (DC1) | 8A at 24VDC |
| Contact Rating (AC1) | 8A at 240VAC |
| Contact Rating (DC13) | 7A at 24VDC |
| Contact Rating (AC15) | 5A at 230VAC |
| Digital Inputs | 2 x 24VDC, 45mA |
| Safety Level | SIL3 / PLe / Cat.4 |
| PFH Value | 2.31E-09 |
| Width | 45mm |
| Dimensions (H x W x D) | 101 x 45 x 121mm |
| Mounting Type | DIN Rail |
| Connection Type | Plug-in Screw Terminals |
| Operation Mode | Single/Dual Channel |
| Reset Type | Automatic/Monitored |
| LED Indicators | Power, Start, CH.1 IN, CH.2 IN, CH.1, CH.2 |
| Pilz Part Number | 777760 |
We warranty all items for 30 days from date of purchase.
| Brand | Pilz |
| Manufacturer | Pilz |
| Model | PNOZ X8P |
| MPN | PNOZ X8P |
| Part Number | PNOZ X8P |
| Condition | Used |
| Weight | 1.00 |
| Coil Voltage | 24 VDC |
| Current Rating | 8 A |
| Current Type | DC |
| Mounting Type | DIN Rail |
| Mounting Style | DIN Rail |
| Shelf Location | K-41 |
| Country of Origin | Germany |
| Unit Type | Safety Relay |
| Application | Emergency Stop, Safety Gate Monitor |
| Features | SIL3/PLe, Short Circuit Detection, LED Indicators |
