2 in stock
| SKU | IP5409 |
| Condition | Used / Inspected |
| Warranty | 30 Days |
| Categories | Photoelectric Sensors, Sensing Devices |
| Ships From | Bardstown, KY |
| Ground | UPS / FedEx |
| Express | Next Day Air Available |
| Freight | Available on Request |
| Cutoff | 2:00 PM EST Mon–Fri |
|
Sensortype
Switching frequency
Rated operating distance Sn in mm
asured operating distance Sa
Repeat accuracy
Hysteresis
Indication Supply Voltage
Indication Switching element on
Indication Special funktion
Ambient temperature
On-delay
Off-delay
Light
Sensitivity Adjustment
Blind zone / min Reflector distance
Special function
Permissable ambient light
Output function
|
Diffuse, Background suppression
2500 Hz
150
adjustable
< 5% from Sn
< 5%
yes, green LED
yes, yellow LED
Contamination indicator, red LED
0...+45å¡C
<0,2ms
<0,2ms
Laser, red, 660nm, Protection class 2
2 turn Poti
30mm/-
Background suppression
5000 Lux
light-on or dark-on
|
|
Mechanical Data
Measurements
Shock
Vibration
Housing material
Material of sensing face
Degree of protection
Connection
Connection turnable
Weigth
|
50x50x17
Halfsinus, 30gn, 11ms
10...55Hz, 1,5mm Amplitude 3x2h
ABS UL 94 V-O
PMMA
IP67

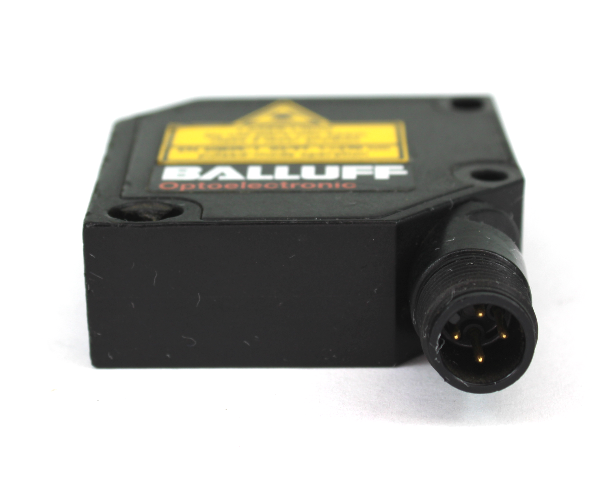

Connector S4 (M12)
Connector 90å¡ turnable
100g
|
|
Electrical Data
Current
Switching function
Output
Rated operational voltage Ue
Rated operational current Ie
Supply Voltage
Ripple
Frequency of Supply Voltage
No-load supply current
Voltage drop
Short protection
Protected against polarity reversal
Rated insulation voltage
max. Load capacity
|
DC
NO/NC
PNP
24V DC
200mA
10...30V DC
< 10% from UB
DC
<50mA
<2,4V
yes
yes
250V AC
0,33åµF
|
| Brand | Balluff |
| Manufacturer | Balluff |

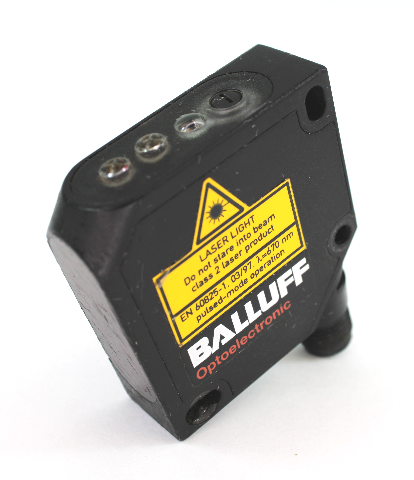

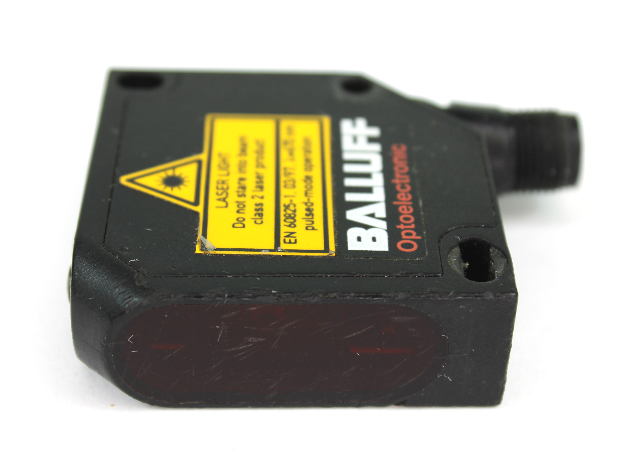

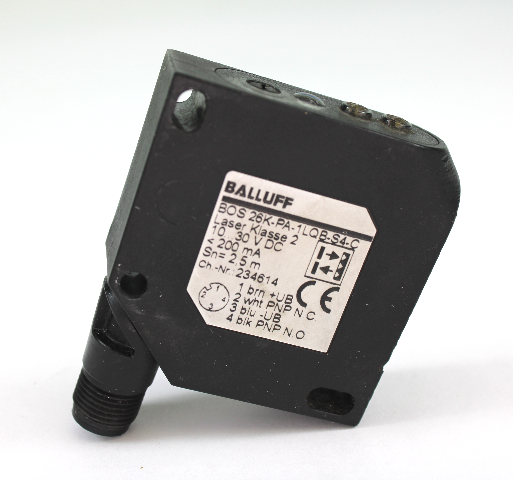

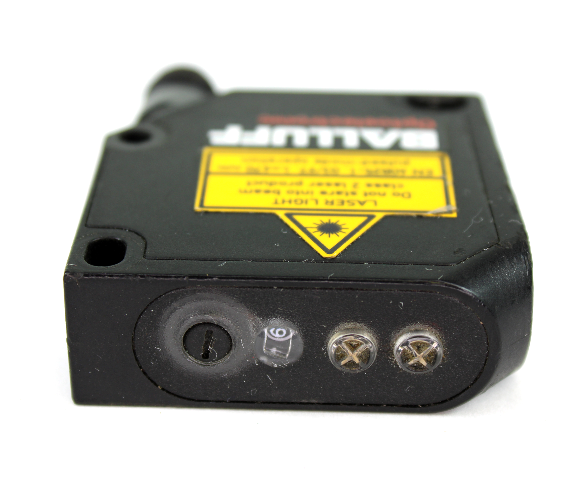

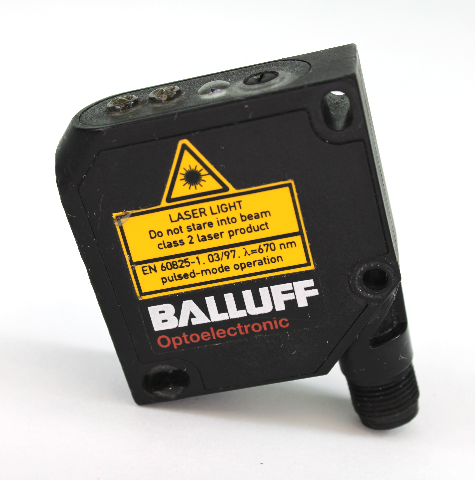

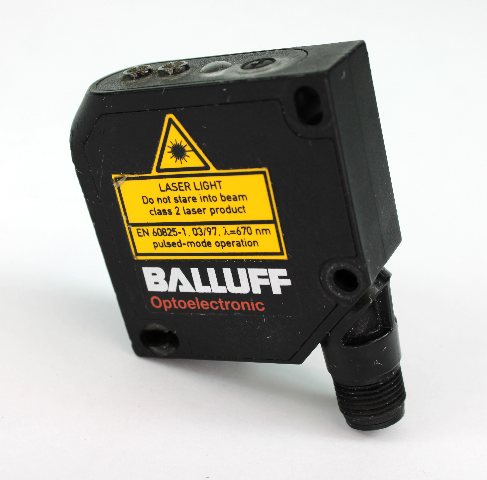

| Model | BOS 26K-PA-1LQB-S4-C |
| MPN | BOS 26K-PA-1LQB-S4-C |
| Condition | Used |
| Weight | 1.00 |
| Voltage | 10-30 VDC |
| Series | BOS-26K |
| Shelf Location | N-11 |
| Unit Type | Photoelectric Sensor |
